Quick Details
-
Model Number:
-
RSTM261-J
-
Product Name:
-
EV conversion kit RSTM261-J
-
IP Grade:
-
67
-
Motor Type:
-
PMSM
-
Motor Rated:
-
34 Kw
-
Motor Peak:
-
68 Kw
-
Rated Torque:
-
110 Nm
-
Peak Torque:
-
270 Nm
-
Rated Speed:
-
3000 Rpm
-
Peak Speed:
-
6000 Rpm
-
Battery Voltage:
-
380 V
Quick Details
-
AC Voltage:
-
380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rawsun GOEVNOW
-
Model Number:
-
RSTM261-J
-
Product Name:
-
EV conversion kit RSTM261-J
-
IP Grade:
-
67
-
Motor Type:
-
PMSM
-
Motor Rated:
-
34 Kw
-
Motor Peak:
-
68 Kw
-
Rated Torque:
-
110 Nm
-
Peak Torque:
-
270 Nm
-
Rated Speed:
-
3000 Rpm
-
Peak Speed:
-
6000 Rpm
-
Battery Voltage:
-
380 V
EV conversion Kit
Rawsun
GOEVNOW
EV systems cover 10 kw to 450 kw automotive and Marine electric systems, which include EV drive systems, EV control systems and lithium battery systems, Rawsuns EV solutions are mainly applied in electric passenger cars, special electric commercial vehicles, electric buses from 6 meters to 18 meters, electric trucks from 2 tons to 110 tons, electric boats, and electric engineering chicaneries.
Rawsun
GOEVNOW
electric vehicle motors are high efficiency designed for electric vehicles and electric boats.
RSTM series ev motors with/without gearbox are mostly for cars/trucks/buses/ SUVs/ coaches/ tractor heads. The battery voltage range is 380V, 540V and 576V.
The ev motor with output peak power 50kw to 200kw, peak torque 180Nm to 2700Nm.

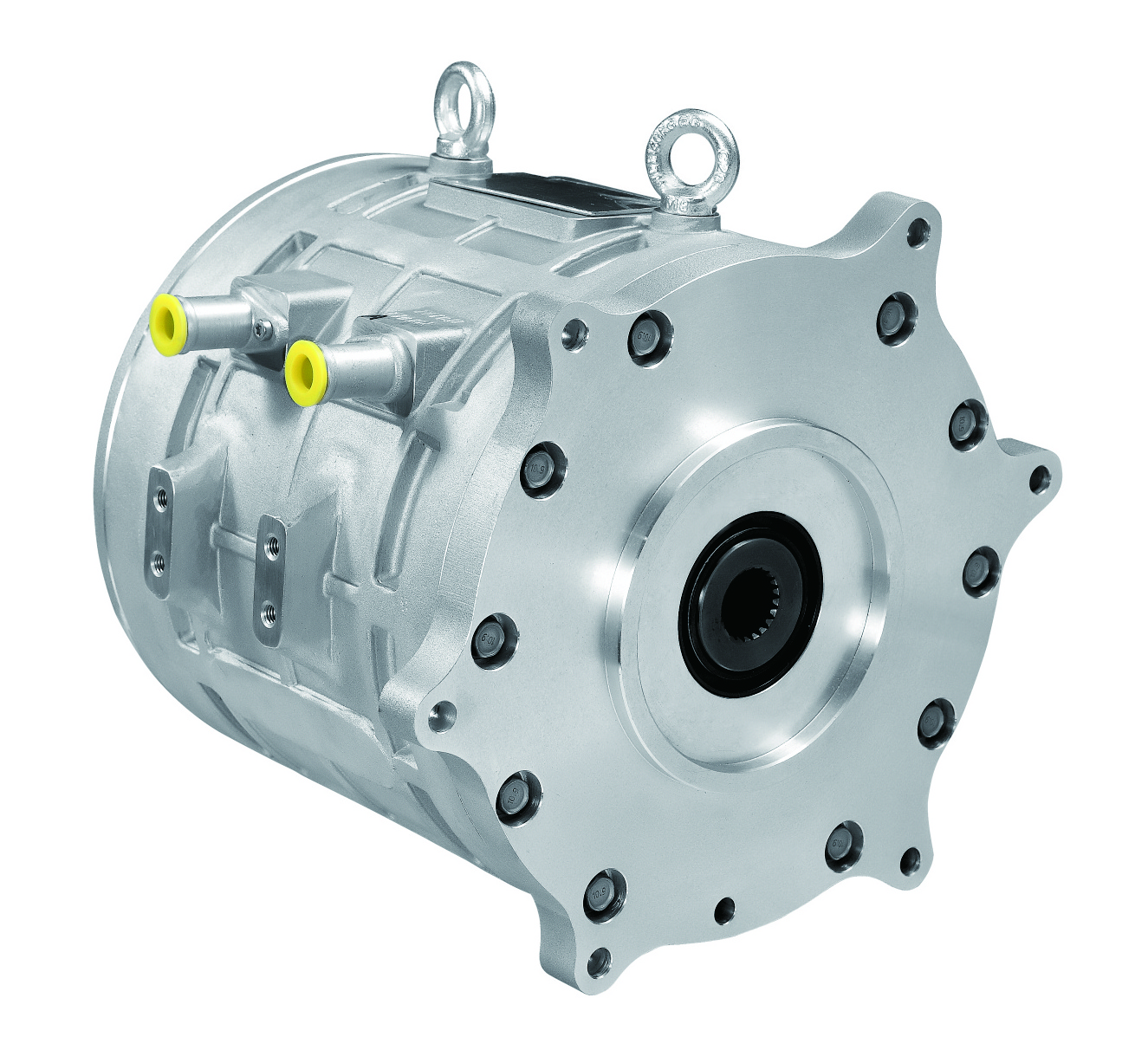

EV motor RSTM261-J & control system & battery system 34- 68 kw apply for 2.5 tons truck
|
|
Battery Rated Voltage (VDC)
|
Rated Power (kw)
|
Peak Power (kw)
|
Rated Torque (nm)
|
Peak Torque (nm)
|
Rated Speed (rpm)
|
Peak Speed (rpm)
|
|
RSTM260-J
|
380V
|
25KW
|
50KW
|
80NM
|
180NM
|
3000RPM
|
6000RPM
|
|
RSTM261-J
|
380V
|
34KW
|
68KW
|
110NM
|
270NM
|
3000RPM
|
6000RPM
|
|
RSTM262-J
|
380V
|
50KW
|
90KW
|
160NM
|
350NM
|
3000RPM
|
6000RPM
|
|
RSTM262D1
|
380V
|
50KW
|
80KW
|
170NM
|
380NM
|
2800RPM
|
6000RPM
|
|
RSTM262D1-H
|
540V
|
50KW
|
80KW
|
170NM
|
380NM
|
3000RPM
|
6000RPM
|
|
RSTM423
|
540V
|
70KW
|
120KW
|
355NM
|
600NM
|
2000RPM
|
4500RPM
|
|
RSTM424
|
380V
|
70KW
|
120KW
|
355NM
|
600NM
|
2000RPM
|
4500RPM
|
|
RSTM424A
|
540V
|
90KW
|
130KW
|
285NM
|
500NM
|
3000RPM
|
4500RPM
|
|
RSTM420
|
540V
|
115KW
|
150KW
|
550NM
|
1000NM
|
2000RPM
|
4500RPM
|
|
RSTM421
|
380V
|
70KW
|
120KW
|
335NM
|
800NM
|
2000RPM
|
4500RPM
|
|
RSTM422
|
540V
|
115KW
|
150KW
|
550NM
|
1000NM
|
2000RPM
|
4500RPM
|
|
RSTM430
|
540V
|
92KW
|
140KW
|
764NM
|
1700NM
|
1150RPM
|
3000RPM
|
|
RSTM460A-2500
|
576V
|
100KW
|
200KW
|
1000NM
|
2500NM
|
955RPM
|
2700RPM
|
|
RSTM-460A-2800
|
576V
|
120KW
|
200KW
|
1200NM
|
2800NM
|
1910RPM
|
2700RPM
|
Shantou Goevnow Technology Co Ltd
Shantou Goevnow Technology Co Ltd, a sub company of Rawsun Technology, is a growing company committed to sales and service of Rawsuns complete electric propulsion solutions.
Rawsuns EV systems cover 10kw to 450 kw automotive and Marine electric systems, which include EV drive systems, EV control systems and lithium battery systems.
Rawsuns EV solutions are mainly applied in electric passenger cars, special electric commercial vehicles, electric buses from 6 meters to 18 meters, electric trucks from 2 tons to 110 tons, electric boats, and electric engineering machineries.
Our Services & Strength
Rawsun Technology is committed to become a professional electric vehicle motor manufacturer. With Independent R&D and production strength, Rawsun practices standardized production process. Rawsun's independent production workshop includes：motor automated production lines, CNC machine tools, machining center, CNC grinding machine， CNC boring machine, CNC wire cutting machine, automatic punching machine, automatic drilling machine, automatic winding machine, large automatic painting line, etc.We have professional click testing laboratory, establish new energy motor electrical engineering experiment center and provide quality assured motor products for customers.
Rawsun Technology is committed to become a professional electric vehicle motor manufacturer. With Independent R&D and production strength, Rawsun practices standardized production process. Rawsun's independent production workshop includes：motor automated production lines, CNC machine tools, machining center, CNC grinding machine， CNC boring machine, CNC wire cutting machine, automatic punching machine, automatic drilling machine, automatic winding machine, large automatic painting line, etc.We have professional click testing laboratory, establish new energy motor electrical engineering experiment center and provide quality assured motor products for customers.
Why choosing Rawsun ev motors?
We also provide motor controller, DCDC, DCAC, PDU, OBC, VCU, dashboard, Pedal, gear panel, battery pack with BMS, WireHarness to complete the ev conversion kit.
How I can get a quote from Rawsun? What is the procedure?
Please contact me via below or send me an email to get and fill in a Vehicle technical information demand list.
We have different solutions and I believe we can meet your needs!
Low-Speed vehicles range: 7KW(40.5Nm)-55KW(192Nm),
Passenger vehicles range: 45KW(120Nm)-120KW(260Nm) ,
Commercial vehicles range: 50kw(180Nm)-200kw(2800Nm),
TAD (Transmission-mounted electric drive) range: 110KW(320Nm)-360KW(2000Nm),
DM (Direct-drive motor) range: 120KW(850Nm)-200KW(2800Nm),
PHD (Parallel Hybrid drive): 130KW(335Nm)-200KW(930Nm),
MHD (Multi-mode Hybrid Drive) range:135KW(450Nm)-220KW(2850Nm) ,
EAD(Electric Alex Drive) range: 105KW(320Nm)-220KW(550Nm).
Passenger vehicles range: 45KW(120Nm)-120KW(260Nm) ,
Commercial vehicles range: 50kw(180Nm)-200kw(2800Nm),
TAD (Transmission-mounted electric drive) range: 110KW(320Nm)-360KW(2000Nm),
DM (Direct-drive motor) range: 120KW(850Nm)-200KW(2800Nm),
PHD (Parallel Hybrid drive): 130KW(335Nm)-200KW(930Nm),
MHD (Multi-mode Hybrid Drive) range:135KW(450Nm)-220KW(2850Nm) ,
EAD(Electric Alex Drive) range: 105KW(320Nm)-220KW(550Nm).
We also provide motor controller, DCDC, DCAC, PDU, OBC, VCU, dashboard, Pedal, gear panel, battery pack with BMS, WireHarness to complete the ev conversion kit.
How I can get a quote from Rawsun? What is the procedure?
Please contact me via below or send me an email to get and fill in a Vehicle technical information demand list.
We will calculate and find a specific motor for you and recommend or develop again according to your needs.
