Quick Details
-
Voltage:
-
380V
-
Power:
-
1.5KW
-
Dimension(L*W*H):
-
660x420x970mm
-
Weight (KG):
-
1100
-
Name:
-
C41 series AIR HAMMER
-
Strike capability:
-
200
-
Function:
-
Forging metal
-
The number of strikes:
-
270
-
Motor speed:
-
1440r.p.m
-
COLOR:
-
Costomized
-
Hit number:
-
258
-
Max. round steel can be forged:
-
Dia. 22 mm
-
Max. square steel can be forged:
-
20x20 mm
-
Max.hit energy:
-
0.18KJ
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WADJAY
-
Machine Type:
-
Air Hammer
-
Voltage:
-
380V
-
Power:
-
1.5KW
-
Dimension(L*W*H):
-
660x420x970mm
-
Weight (KG):
-
1100
-
Name:
-
C41 series AIR HAMMER
-
Strike capability:
-
200
-
Function:
-
Forging metal
-
The number of strikes:
-
270
-
Motor speed:
-
1440r.p.m
-
COLOR:
-
Costomized
-
Hit number:
-
258
-
Max. round steel can be forged:
-
Dia. 22 mm
-
Max. square steel can be forged:
-
20x20 mm
-
Max.hit energy:
-
0.18KJ
Products Description
AIR HAMMER PRODUCT FEATURES:
The air hammer is easy operation ,flexible movement and convenient to transit ,
installation ,maintenance ,the type is widely used for various of free forging works ,
such as drawing out ,upsetting ,punching ,chiseling .forging welding ,bending and twisting .
It is also used for open die forging in bolster dies.
it is suitable for free forging works of all kinds of different shape parts ,
especially suitable for village township enterprise and self-employed forge small agriculture tools .
For example sickle ,horseshoes ,Spike ,hoe etc .
At the same time ,the industrial enterprise use the air hammer to forge the steel ball ,
scaffold and many other factories and mines ,construction supplies .
In addition the series air hammer is very commonly professional blacksmith's iron tools
that can install all kinds of mould to forge a variety iron flowers ,birds and other beautiful decoration.
|
Model
|
C41-16KG
|
C41-20KG
|
C41-25KG
|
C41-40KG
|
C41-55KG
|
|
Weight of failling parts(KG)
|
16
|
20
|
25
|
40
|
55
|
|
Max.hit energy(KJ)
|
0.18
|
0.22
|
0.27
|
0.53
|
0.7
|
|
Height of working area(mm)
|
180
|
200
|
240
|
245
|
265
|
|
Hit number(min)
|
258
|
255
|
250
|
245
|
230
|
|
Dimension of top and bottom die surface(LxW mm)
|
70x40
|
90x50
|
100x50
|
120x50
|
120x55
|
|
Max. square steel can be forged(Diameter mm)
|
20x20
|
30x30
|
40x40
|
52x52
|
52x52
|
|
Max. round steel can be forged(Diameter mm)
|
Φ 22
|
Φ35
|
Φ 45
|
Φ 68
|
Φ 68
|
|
Rate power(kw)
|
1.5
|
2.2
|
3/2.2
|
4
|
5.5
|
|
Speed of motor(r.p.m)
|
1440
|
1440
|
1440
|
1440
|
1440
|
|
Total weight(kg)
|
240
|
380
|
560
|
880
|
1700
|
|
Overall dimensions(L x W x H mm)
|
660x420x970
|
820x460x1110
|
980x510x1200
|
1080x600x1430
|
1320x670x1620
|

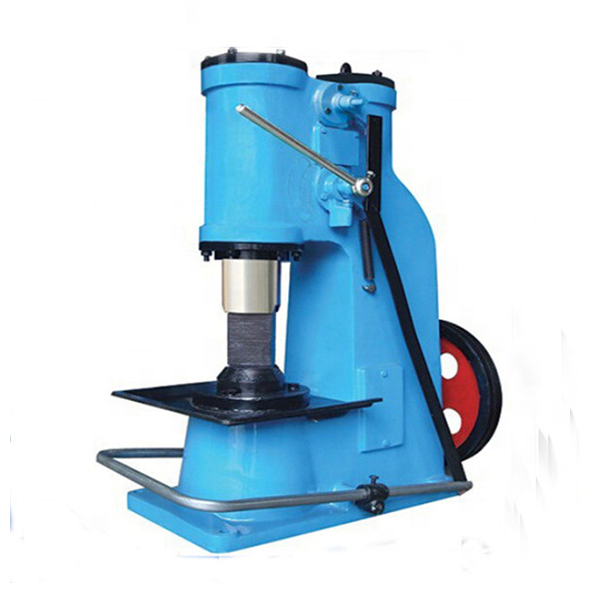

Pneumatic Hammer, a kind of free forging machine. Air Hammer Forging Machine The compression cylinder compresses the air and sends it into the working cylinder through the distribution valve, pushing the piston together with the hammer head to move up and down for hammering. Flexible operation, widely used in the production of small and medium forgings. The air hammer is mainly composed of a frame, a transmission mechanism, a compression cylinder and a working cylinder, a compression piston, a falling part, an air distribution mechanism and an anvil.
Forging Hammer Anvil can be customized
