Quick Details
-
Model Number:
-
R35 R37 TC TB SC
-
Color:
-
Black,Brown
-
Application:
-
shaft
-
Standard or Nonstandard:
-
Standard Size
-
Hardness:
-
95+ Shores
-
MOQ:
-
10 PCS
-
Usage:
-
Sealing Usage
-
Packing:
-
Carton
-
Material:
-
FPM,FKM,NBR,Buna,HNBR
-
Product name:
-
Mechanical Rubber Seal
Quick Details
-
Size:
-
200mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SI PAI TUO
-
Model Number:
-
R35 R37 TC TB SC
-
Color:
-
Black,Brown
-
Application:
-
shaft
-
Standard or Nonstandard:
-
Standard Size
-
Hardness:
-
95+ Shores
-
MOQ:
-
10 PCS
-
Usage:
-
Sealing Usage
-
Packing:
-
Carton
-
Material:
-
FPM,FKM,NBR,Buna,HNBR
-
Product name:
-
Mechanical Rubber Seal
Products Description

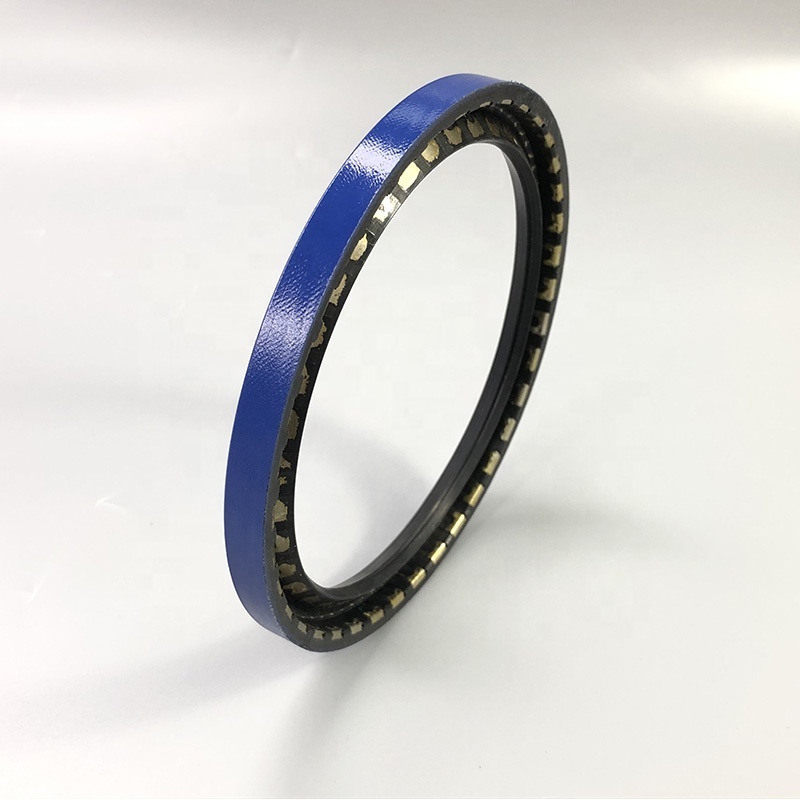

SiPaiTuo Sealing Model 26 Fabric Reinforced General Purpose Seal
Model 26 is a high-performance seal available in a solid or split design. Its reverse bevel lip design prevents lip rollover.
SIPAITUO SEALING OIL SEALS
SIPAITUO SEALS COMPANY can produce different type/style oil seals,such as TC ,TB ,TA ,SC,SB ,SA and Fabric Rubber oil seals R35,R37 ect
Hammer union seals
are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.
Hammer unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted.
Some profiles such as
Fig 2202, Fig 1004, Fig 1502, Fig 2002, Fig 602, Fig 1002 etc
require a Hammer Union Lip Seal or an 'O'Ring depending on the Size of the Hammer Union.
We produce
2",3", and 4"
Hammer Union Seals in
Nitrile for standard service
and in FKM or
HNBR for Sour Gas Service
. In addition to the standard molded rubber seals, we offer these with either a
brass or stainless steel anti-extrusion ring
.
Also available
in PTFE,PU
|
Color
|
Material
|
|
Black
|
NBR/FKM/HNBR with Brass or Stainless Steel
|
|
Blue /Green
|
FKM with Stainless Steel
|
|
Yellow
|
Fkm With Stainless steel
|
|
White
|
PTFE
|
|
Note
|
Material and color descriptions are only for seals shown in the picture on the left
|
Direction for use
Hammer unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted. This sealing we call it
hammer union seal
/
weco seal
or
seal ring
Size Chart of hammer union seals
|
Size
|
2"
|
3"
|
4"
|
|
|||
|
Material
|
Hammer Union Seals in Nitrile for standard service and in FKM or HNBR for Sour Gas Service. In addition to the standard molded
rubber seals, we offer these with either a brass or stainless steel anti-extrusion ring. Also available in PTFE,PU |
|
|
|
|||
|
Pressure
|
6000psi to 15000psi
|
|
|
|
|||
|
Hardness
|
75Shore A to 95 Shore A
|
|
|
|
|||
