Quick Details
-
Model Number:
-
DY-QJY5.0SA
-
Warranty:
-
1 Years
-
Product name:
-
wheel alignment scissor car lift
-
Lifting Time:
-
60s
-
Motor power:
-
2 .2kw
-
Capacity:
-
5000kg
-
Min height:
-
330mm
-
Max lifting height:
-
1800mm-1900mm
Quick Details
-
Lifting Capacity:
-
5000kg
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAYANG
-
Model Number:
-
DY-QJY5.0SA
-
Warranty:
-
1 Years
-
Product name:
-
wheel alignment scissor car lift
-
Lifting Time:
-
60s
-
Motor power:
-
2 .2kw
-
Capacity:
-
5000kg
-
Min height:
-
330mm
-
Max lifting height:
-
1800mm-1900mm

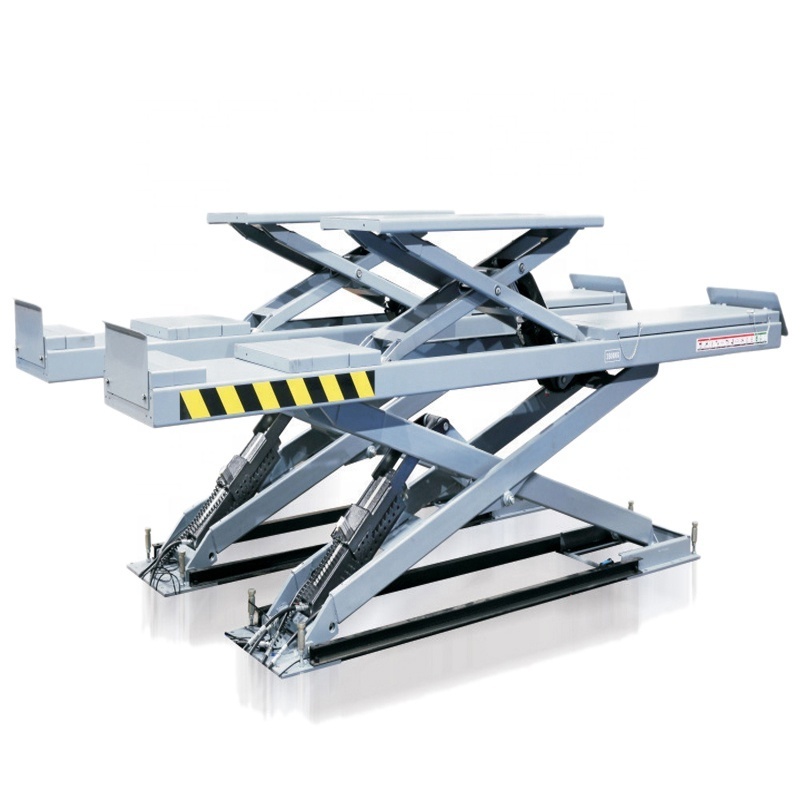

1. Pictures of in ground scissor car lift
2. Main features of scissor car lift
1. Suitable to car repair shop for alignment and repairing.
2. In-ground installation.
3. Equipped with sideslip plates and spaces for wheel turntables.
4. Adjustable rear turntables.
5. 24V limit switch and 24V safety voltage.
6. Automatic mechanical lock engaged during rising to ensure vehicles safety.
7. Runway synchronizer system prevents vehicles tilting.
8. The hydraulic system is equipped with over-load prevention device.
3. Technical Specification:
First lifting capacity -------------3500kg/4000kg/5000kg
Secondary lifting capacity-------- 2500kg
First lifting height------------------- 1800mm/1800mm/1800mm
Secondary lifting height -----------450mm
Minimum height----------------------330mm/330mm/360mm
Runway length------------------------4250mm/4500mm/4800mm
Runway width------------------------620mm
Lifting time----------------------------60S/65S/65S
Air pressure--------------------------0.6-0.8Mpa
Power supply-----------------------220V/240V/380V/415V
4. Factory
5. Our machines in worldwide
6. Delivery
Warranty will continue to be valid for a period of 12 months provided the following warranty conditions are observed.
Warranty Conditions:
1. This warranty is valid from the date of receiving equipments.
2. This warranty is given for the benefit of the first owner only and claims by parties other than the original purchaser will not be recognized, as the warranty is not transferable.
3. This warranty is only valid when the product has been used in accordance with the Installation, Operation, Maintenance and Instruction Manual and by a competent person trained in its use.
4. This warranty does not apply to damage or deterioration, which is caused by human.
5. During warranty period, shipping cost of replacement products or parts are our responsibility.
6. Beyond the warranty period, we provide spare parts to customers at factory cost.
