Quick Details
-
Rolling Speed (m/min):
-
2 - 5
-
Warranty of core components:
-
24 months
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Rbqlty
-
Weight (KG):
-
20000 KG
-
Motor Power (kw):
-
5.5 kw
-
Certification:
-
CE
-
Raw Material:
-
Sheet
-
Roller quantity:
-
3rollers 4rollers
-
Product name:
-
Hot
-
Machine voltage:
-
Buyers'demanding
-
Processing material:
-
Aluminium
-
Electric System:
-
Schneider
-
Max. Bending width:
-
1000-2000mm
-
Machine name:
-
Sheet Plate Rolling Machine
-
Max rolling thickness:
-
4-60mm
Quick Details
-
Max. Working Length (mm):
-
2000 mm
-
Max. Plate Thickness (mm):
-
8 mm
-
No. of Roller:
-
3
-
Rolling Speed (m/min):
-
2 - 5
-
Warranty of core components:
-
24 months
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Rbqlty
-
Weight (KG):
-
20000 KG
-
Motor Power (kw):
-
5.5 kw
-
Certification:
-
CE
-
Raw Material:
-
Sheet
-
Roller quantity:
-
3rollers 4rollers
-
Product name:
-
Hot
-
Machine voltage:
-
Buyers'demanding
-
Processing material:
-
Aluminium
-
Electric System:
-
Schneider
-
Max. Bending width:
-
1000-2000mm
-
Machine name:
-
Sheet Plate Rolling Machine
-
Max rolling thickness:
-
4-60mm

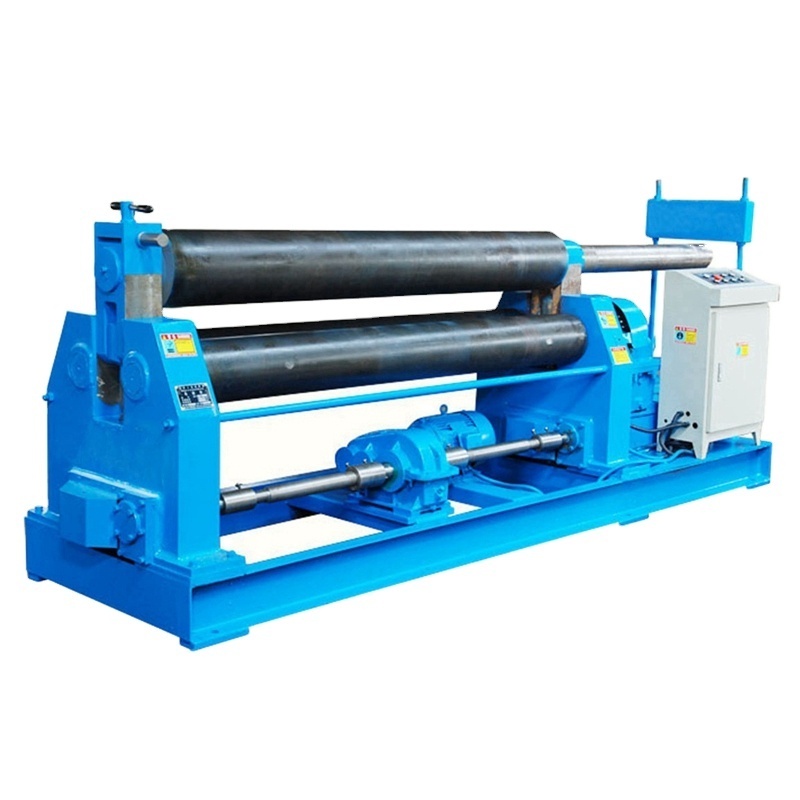

Cylinder Cone Shape 12mm steel plate bending machine
Whole structure
1.The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the lower rollers, wihch is achieved through the drive of the screw, the unt, the worm and the lead screw.
2.The two lower rollers rotates, and privideds the plate materials with torque through the engagement of the output gear of the moderator with the gear of the lower rollers.
3.Adapted for bending metal plate into round, arc, and so on. Its working principle is ratary benidng deformation. This product is widely used in chemical industry, cement, shipbuilding, boiller, aviation, water control project, power transmission tower, metal structure and the industry of making machinery.
Main parts:
1.Working rollers: roughcast roller--- forging--- annealing--- peeled--- flaw detection--- rough machining--- quenching and tempering treatment--- flaw detection again--- semi-finish machining--- finish machining
2..Large forigings: cylinder body, gear, gear shaft: roughcast-forging-surface imspection-roughing-flaw detection-heart treatment-semi-finishing-finishing
3.Welding structure: racks, base, gearbox cover :eliminating internal stress treatment.
4 The electric control parts :the bending speed of main transmission part is 5.5m/min, controlled by gearbox and brake through electric motor.
5 The second motor wiring accessories and necessary materials (wire diagram from motor cabinet to actuator)
6 The technical data.operation manual,electrical diagram.
Anhui Runbang Heavy Industry Machinery Co., Ltd.
MTCNC concentrates on the research, development, manufacture, sale and service in metal fabrication equipment.
MTCNC not only supplies metal sheet shearing, bending, punching, rolling machine tool. but also provides you complete metal fabrication solution.
Manufacturing Part
gantry milling machine
Material Stock Part
Warehouse Part
Abundant Stock
Lead time
20 to 30 days
Payment Method
30% T/T in advance, the balance paid before shipping
|
Packaging
|
|
|
|
Size
|
According to final product
|
|
|
Weight
|
According to final product
|
|
|
Packaging Details
|
Plastic film packge
plywood box package
|
|
|
Delivery Details
|
FCA to your consignee
FOB PORT to Shanghai
CIF PORT in your country
|
|
|
On-sales service
|
|
|
|
|||
|
Currency
|
Dollar, Euro, RMB,
|
|
|
|||
|
Payment Method
|
Credit Card, T/T, L/C, Western Union, Paypal.
|
|
|
|||
|
Payment Term
|
30% in advance,70% before delivery
|
|
|
|||
|
Inspection Service
|
welcome factory inspection or video & picture inspection
|
|
|
|||
|
Delivery Serice
|
We can deliver to Shanghai port or to your country port or your address
|
|
|
|||
|
Delivery term
|
EXW, CFA, FOB, CIF, DDU, DDP
|
|
|
|||
|
After sales service
|
|
|
|
|||
|
Technical support
|
Within one day
|
|
|
|||
|
Installation service
|
Simple installation by electrical diagram, 120 USD per day overseas installation
|
|
|
|||
|
Training service
|
free trainning in our factory, 120 USD per day overseas trainning
|
|
|
|||
|
Quality guarantee
|
1 year warranty, lifetime service. free spare parts for 3 years use
|
|
|
|||
|
Response rate
|
100% within 12 hours
|
|
|
|||
