Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
3000*1500mm
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
cypcut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hongniu
-
Weight (KG):
-
2500 KG
-
Working area:
-
3000*1500mm
-
Laser source:
-
MAX/RAYCUS/IPG 1000W/1500W
-
Fiber laser head:
-
Raytools auto laser head
-
MOTOREDUCER:
-
Shimpo/Motoreducer
-
Location accuracy:
-
±0.03mm/m
-
Repeat location accuracy:
-
±0.02mm/m
-
Min Line Width:
-
0.02mm
-
Laser wave length:
-
1060nm
-
Power supply:
-
220V 50hz/60hz
-
Software:
-
Cypcut
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
140m/min
-
Cooling Mode:
-
S&A/HANLI
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
3000*1500mm
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
cypcut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hongniu
-
Weight (KG):
-
2500 KG
-
Working area:
-
3000*1500mm
-
Laser source:
-
MAX/RAYCUS/IPG 1000W/1500W
-
Fiber laser head:
-
Raytools auto laser head
-
MOTOREDUCER:
-
Shimpo/Motoreducer
-
Location accuracy:
-
±0.03mm/m
-
Repeat location accuracy:
-
±0.02mm/m
-
Min Line Width:
-
0.02mm
-
Laser wave length:
-
1060nm
-
Power supply:
-
220V 50hz/60hz
-
Software:
-
Cypcut
Features
Open worktable,simple operation and small space occupation.
Adopt high precision linear guide rail to ensure the precision operation of the equipment.
|

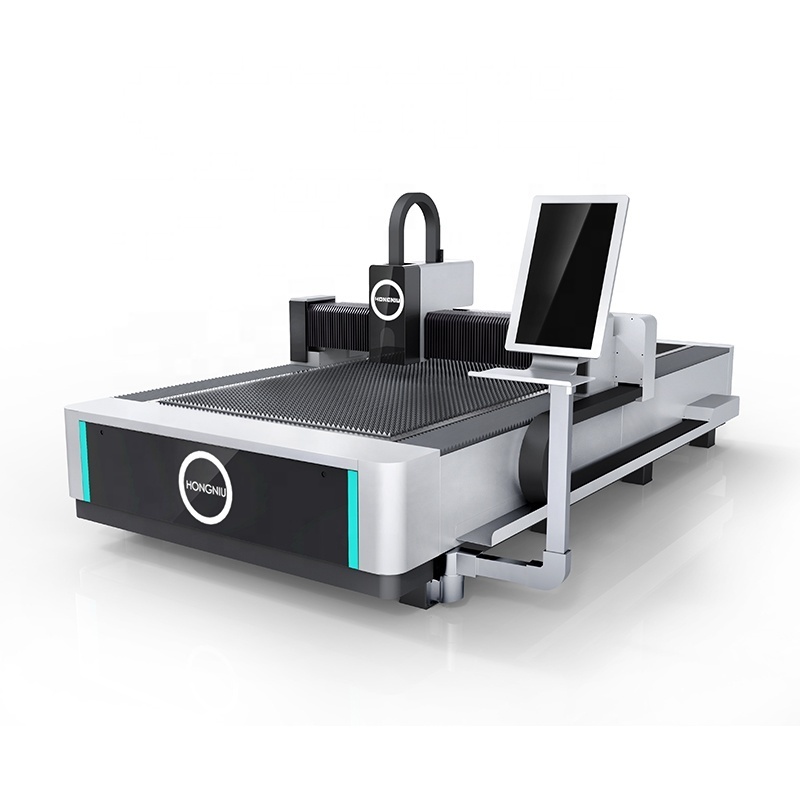

HN -3015F |
|
|
Working area |
3000*1500mm |
|
Laser source |
MAX/RAYCUS/IPG 1000W/1500W |
|
Fiber laser head |
Raytools auto laser head |
|
Driving system |
FUJI/YASKAWA |
|
Rack & pinion |
T-win /YYC |
|
Linear Guides |
HIWIN |
|
MOTOREDUCER |
Shimpo/ Motoreducer |
|
Cooling tools |
S&A/HANLI |
|
Software |
Cypcut |
|
CNC Controller |
BCS100 V3.0 |
|
Location accuracy |
±0.03mm/m |
|
Repeat location accuracy |
±0.02mm/m |
|
Min Line Width |
0.02mm |
|
Laser wave length |
1060nm |
|
Power supply |
220V 50hz/60hz |
1 Q: Are you a factory or trading company?
A: We are a factory,which manufactures fiber laser cutting machine and CNC plasma cutting machine,with 10 years experience in CNC machine industry.
2 Q: Do you have after sales support?
A: Yes,we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3 Q: I am not sure if this machine suitable for my work?
A: Don’t worry,just tell me your cutting material,max working area and cutting thickness,then i will recommend you the most suitable machine for you.
4 Q: How can i do if the machine goes wrong?
A: If confronted with such problems,online service is offered,you could contact our sales.Also,we offer engineer delivery service.Please contact us and don’t try fix the machine by yourself or someone else.We will response within 12 hours as quick as we can to solve it for you.
