Quick Details
-
Dimensions (L x W x H) (mm):
-
13000x2650x3850
-
Place of Origin:
-
Shandong, China
-
Product name:
-

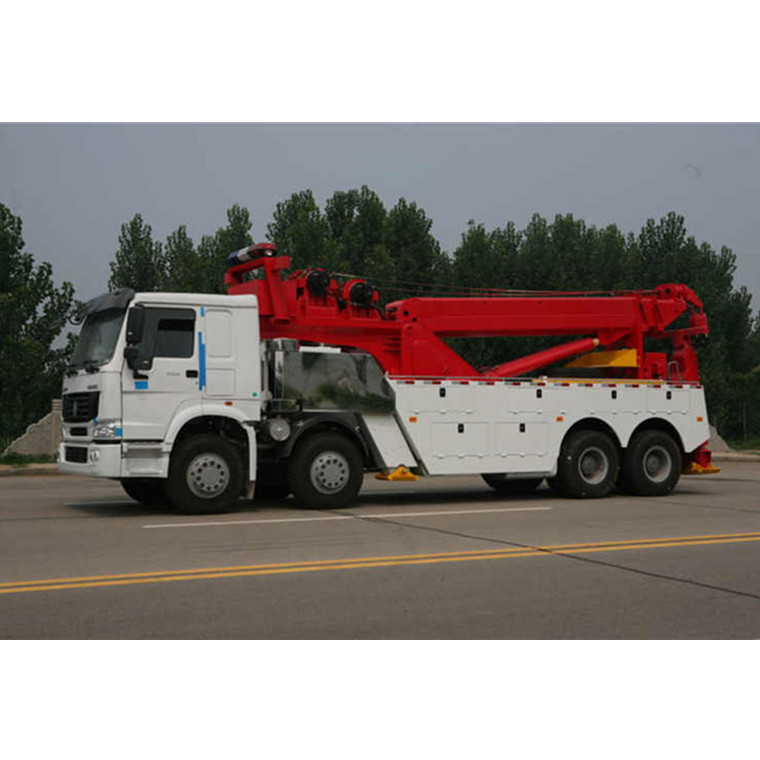

Heavy Duty Rotator Tow Truck
-
Chassis brand:
-
HOWO.DongFeng.FAW.Foton.JAC.Shacman
-
Wheelbase:
-
1800+4600+1350
-
Driving type:
-
4*2 6*4 8*4
-
Winch capacity:
-
5000kg
-
Engine:
-
WD615
-
Loading capacity:
-
60-70TONS
-
Tower capacity:
-
Under Wheel Lift Wrecker
-
Crane capacity:
-
35tons
-
Engine power:
-
220kw 300 Horse Power
Quick Details
-
Emission Standard:
-
Euro 3
-
Condition:
-
Used
-
Brand Name:
-
HOWO
-
Dimensions (L x W x H) (mm):
-
13000x2650x3850
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Heavy Duty Rotator Tow Truck
-
Chassis brand:
-
HOWO.DongFeng.FAW.Foton.JAC.Shacman
-
Wheelbase:
-
1800+4600+1350
-
Driving type:
-
4*2 6*4 8*4
-
Winch capacity:
-
5000kg
-
Engine:
-
WD615
-
Loading capacity:
-
60-70TONS
-
Tower capacity:
-
Under Wheel Lift Wrecker
-
Crane capacity:
-
35tons
-
Engine power:
-
220kw 300 Horse Power
Product Overview
-Excellent Condition
-Competitive Price
-Strong Quality
-Spare Parts Supply
Lift Wheel Hydraulic Kl Part Jac Towing Mobile Forktruck Emc905 Motor China 50 Ton Rotator Arms Tow Truck Wrecker
1. Based on STR technology from Austria
2. Cabin:Four point s suspension HOWO Cabin with spring and air shock absorber, VDO panel
3. Engine:371HP WD615 STR engine ( from 290hp - 420 hp you can chose )
Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
4. Front axle: HF9 STEYR technology front steering axle
5. Rear axle: AC16,16ton STEYR technology double reduction hub reductor driving axle
6. Steering: ZF8098, driver sit at the left hand side(LHD),also can change into RHD
7. Loading capacity: More than 30ton
8. Designed for tough road condition especially for African countries
9. Punctual delivery time (Usually within 10days)
10. Excellent spare parts supply for after-sales service.
2. Cabin:Four point s suspension HOWO Cabin with spring and air shock absorber, VDO panel
3. Engine:371HP WD615 STR engine ( from 290hp - 420 hp you can chose )
Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
4. Front axle: HF9 STEYR technology front steering axle
5. Rear axle: AC16,16ton STEYR technology double reduction hub reductor driving axle
6. Steering: ZF8098, driver sit at the left hand side(LHD),also can change into RHD
7. Loading capacity: More than 30ton
8. Designed for tough road condition especially for African countries
9. Punctual delivery time (Usually within 10days)
10. Excellent spare parts supply for after-sales service.
PRODUCT SPECIFICATIONS
|
Wrecker Model
|
|
|
CJ5381TQ
|
||
|
Chassis Model
|
|
|
ZZ1317N4667C
|
||
|
Engine Model
|
|
|
WD615.95E
|
||
|
kw/HP Power
|
|
|
247
|
||
|
Outline Dimension(L×W×H) mm
|
|
|
11210,11235×2496×3820
|
||
|
No. of Tire
|
|
|
12
|
||
|
Tire Specification
|
|
|
12.00-20
|
||
|
Approach Angle/Departure Angle
|
|
|
16°/16°
|
||
|
Front Overhang/Rear Overhang mm
|
|
|
1500/1960
|
||
|
Boom
|
Max. lifting mass Kg
|
|
50000
|
||
|
|
Extension Stroke mm
|
|
6000
|
||
|
|
Max. Lifting Height mm
|
|
12500
|
||
|
|
Max. Inclination Angle
|
|
60°
|
||
|
|
Rotating Angle
|
|
360°
|
||
|
|
Range of Inclination Angle
|
|
0~60°
|
||
|
Under lift
|
Original Lifting Mass Kg
|
|
25000
|
||
|
|
Rating Lifting Mass Kg
|
|
12500
|
||
|
|
Rating Lifting Mass Fully Extended Kg
|
|
7800
|
||
|
|
Max. Effective Length mm
|
|
3390
|
||
|
|
Extension Stroke mm
|
|
1850
|
||
|
|
Range of Inclination Angle
|
|
-9°～93°
|
||
|
|
Folding Angle
|
|
102°
|
||
|
Outriggers
|
Longitudinal Span between Front Outrigger and Rear Outrigger (mm)
|
|
7765
|
||
|
|
Transverse Span of Front Outriggers (mm)
|
|
6300
|
||
|
|
Transverse Span of Rear Outriggers
|
|
4320
|
||
|
Rating Towing Mass Kg
|
|
|
55000
|
||
|
Rating Pulling Power of Winch KN
|
|
|
2×250
|
||
