Quick Details
-
Model:
-
ND-3000/ND-3002 Electric Control Lock
-
Type:
-
Fail Secure type:Power to open
-
Lock Size:
-
25L*110W*45H(mm)
-
Extension Length of Dead Bolt:
-
20mm
-
Lock-opening Delay Time:
-
Automatically lock within 9s if no opened
-
Voltage:
-
9-12VDC
-
Key cylinder:
-
ND-3000 Single/ND-3002 Double
-
Lock-opening current:
-
≥400mA
-
Standby current:
-
50mA
-
Option:
-
Stainless steel lock body,remote control
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Nordson
-
Model Number:
-
ND-3000
-
Model:
-
ND-3000/ND-3002 Electric Control Lock
-
Type:
-
Fail Secure type:Power to open
-
Lock Size:
-
25L*110W*45H(mm)
-
Extension Length of Dead Bolt:
-
20mm
-
Lock-opening Delay Time:
-
Automatically lock within 9s if no opened
-
Voltage:
-
9-12VDC
-
Key cylinder:
-
ND-3000 Single/ND-3002 Double
-
Lock-opening current:
-
≥400mA
-
Standby current:
-
50mA
-
Option:
-
Stainless steel lock body,remote control

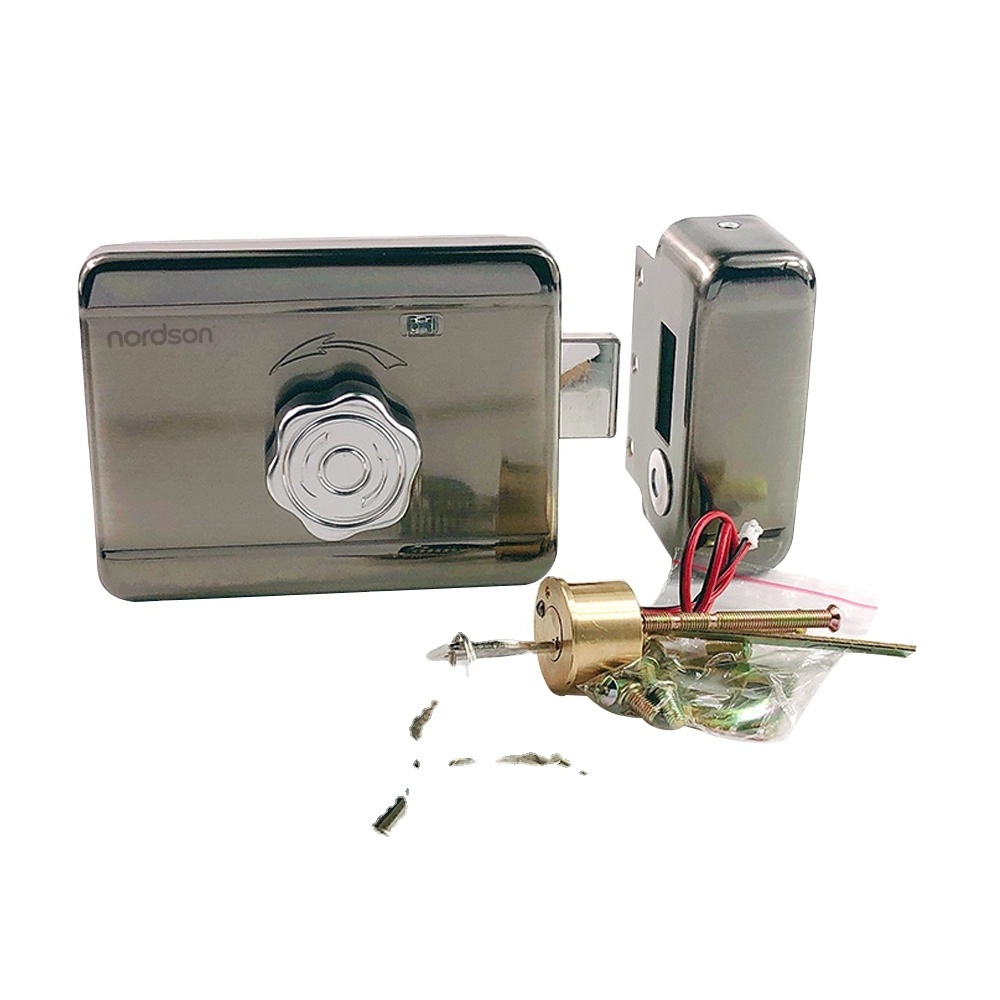

ND-3000&ND-3002 combine the merit of traditional electric control lock and electric magnetic lock, overcoming noisy and current consuming defect. Installation is very convenient with easy operation. Users don't need to identify the direction of door installation whether left or right, inside or outside open way. This intelligent lock is closed without collision, auto-induction and self-locking, auto-detecting deadbolt state to ensure safety as well as extend the limitation of door closer type. It solve the problem of door frame being out of shape due to strong strength, extending lifespan of door. This electric rim lock is widely used in intelligent community, high-grade office building,school,rental house, troops, mobile base station, bank, compatible with building conversational system and access control system. ND-3000&ND-3002 metal rotary knob electric control lock is also called electric intelligent lock, electromagnetic lock, electric rim lock.
1.Installation and operation are easy and convenient, suit for all direction of door.
2.Door closed without collision,auto-sense and self locking for long lifespan of door lock.
3.Auto-detecting, when lock fail, it will auto lock again to ensure safety.
4.Low noisy, long lidespan, low power consumption.
5.Multiple open way: Access control system, building conversational system, remote control, rfid card, key.
6.Prevent seperating door magnetic,then keep safe.
Model | ND-3000 Electric Control Lock |
Type | Fail Secure type:Power to open |
Lock Size | 25L*110W*45H(mm) |
Extension Length of Dead Bolt | 20mm |
Lock-opening Delay Time | Automatically lock within 9s if no opened |
Voltage | 9-12VDC |
Key cylinder | Single |
Lock-opening current | ≥400mA |
Standby current | 50mA |
Working Current | 1.5-3A |
Consumption Power | 10W |
Option | Stainless steel lock body,remote control |
Sensitivity | 1s |
Alarm | If bolt is not in correct position when locking by power |
Weight | 1.7kg |
NORDSON is relentless in the pursuit of the latest technologies, the highest quality standards and in delivering the best user experience possible.We distribute an extensive and finest access control products to our world-wide customers. So far, Nordson has over 30 distributors in the world .We promise to provide them with the best products & services at any time, any where.
