Quick Details
-
Material:
-
low carbon steel
-
Product name:
-
Dust collector for fume extraction system dust sucking machine
-
Keyword:
-
dust sucking machine
-
Type:
-
Doulbe arm
-
Filter Type:
-
Cartridge filter
-
Air volume:
-
1200-3000 m3/h
-
Power:
-
0.75-3.0KW
-
Noise:
-
Less than 50 dB
-
Color:
-
Customized
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
CNP
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Material:
-
low carbon steel
-
Product name:
-
Dust collector for fume extraction system dust sucking machine
-
Keyword:
-
dust sucking machine
-
Type:
-
Doulbe arm
-
Filter Type:
-
Cartridge filter
-
Air volume:
-
1200-3000 m3/h
-
Power:
-
0.75-3.0KW
-
Noise:
-
Less than 50 dB
-
Color:
-
Customized

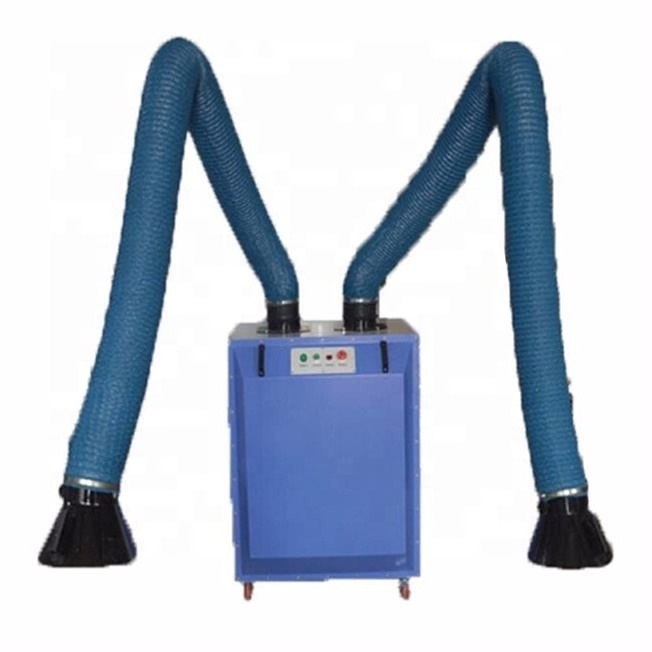

Dust collector for fume extraction system dust sucking machine
CNX Series mobile welding smoke purifier adopts high efficiency filter cartridges as filter element. The filter cartridges choose filter material is different from conventional filter material, the surface with a layer of PTFE membrane.
Dust sucking machine advantage
1.Telescopic flexible suction arm can be turned at 360 degrees and can be stretched to any position.
2.The integrated high efficiency filter element can filter the welding fume (0.3 mu m) up to 99.97% and maintain extremely high gas flow rate.
3.Compact and compact, solder fume extractor can be used even in narrow workplaces.
4.Installed with a universal wheel, mobile and flexible and flexible.
5.Equipped with high-performance turbine fans, large air intake and low noise.
6.The consumables in the purifier are stable and easy to replace.
7.There will be no two pollution and no other operation in the workshop.
|
Type
|
Air volume
(m3/h)
|
Pressure
(Pa)
|
Power
(KW)
|
Filter area
(m2)
|
Filter size
(mm)
|
Voltage
|
Weight
(kgs)
|
||||||
|
CNX-1200
|
1200
|
1750
|
0.75
|
13
|
598*490*990
|
380V
|
70
|
||||||
|
CNX-2000
|
2000
|
2000
|
1.5
|
24
|
700*700*1500
|
380V
|
80
|
||||||
|
CNX-2500
|
2500
|
2000
|
2.2
|
28
|
700*800*1600
|
380V
|
85
|
||||||
|
CNX-3000
|
3000
|
2000
|
3.0
|
30
|
750*750*1700
|
380V
|
90
|
||||||
|
Noise
|
Less than 65db
|
|
|
|
|
|
|
||||||
|
Dedusting
|
Auto pulse dedusting or hand dedusting
|
|
|
|
|
|
|
||||||
|
Arm Size
|
Arm length 2-3 meters,tube diameter 160mm
|
|
|
|
|
|
|
||||||
Application of industrial mobile fume extractor for welding
The fume extractor adopts collection of the fume and dust in different production process, such as welding (arc welding, carbon dioxide arc welding, MAG welding, carbon arc gouging welding, special welding etc.) , polishing, cutting, burnishing etc.
Workshop
Packing:
1. Wrap film to protect it from moisture
2. Pack in carton box
3. Pack in wood box
Q1: Are you manufacturer or trading company?
A: We are the professional manufacturer and exporter, 20 years production experience, 10 years export experience .
Q2: Where is your factory located? How can I visit there?
A: Our factory is located in Hebei Province, 1 hour by train from Beijing, near Beijing and Tianjin city. Warmly welcome to visit us anytime.
Q3: How do you control the quality?
A: We insist "Quality First, Customer First", always pay attention to quality control from the beginning to the end. One year warranty period. Alibaba golden credit supplier.
Q4: How to pay for the product?
A: T/T, L/C, Western Union, Money Gram,Credit Card are available.
Q5: How long is the delivery time?
A: About 5-40 days upon the payment.
Q6: How about the after-sale installation of dust collector?
A1.We provide installation manual, technical consulting forever. Our engineers are available to help you install dust collector onsite.
A2.We also can provide installing turn-key projects overseas.
