tig portable pressure real shot cold welding machine welder

tig portable pressure real shot cold welding machine welder

FOB Reference Price: Get Latest Price

≥1 Sets

US $1450

≥5 Sets

US $1300

≥10 Sets

US $1200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Arc Current:: 10-200A

Pulse Frequency:: 1-7HZ

Rated Duty Cycle:: 80%

Dimensions:: 390X220X280MM

Use:: repair and welding

Voltage:: AC 220V/ 50/60 HZ

Power:: 1200w

Weight (KG):: 14 KG

Model:: HS-ADS16

Output Power:: >40KW

Cooling way::: Fan forced air cooling

Welding wire diameter:: 0.1-1mm

Machine Type:: Welding Rotator

Rated Capacity::: 1200W

Input voltage::: AC 220V/230V 50/60 HZ

Welding current::: 1-99A adjustable

Suggest thickness:: 0.2-4mm

Executive Standard:: GB155.79.1-2013

Certification:: ISO9001 CCC CE

Quick Details

Place of Origin:: Anhui, China

Brand Name:: Huasheng

Marketing Type:: Hot Product 2020

Arc Current:: 10-200A

Pulse Frequency:: 1-7HZ

Rated Duty Cycle:: 80%

Dimensions:: 390X220X280MM

Use:: repair and welding

Voltage:: AC 220V/ 50/60 HZ

Power:: 1200w

Weight (KG):: 14 KG

Model:: HS-ADS16

Output Power:: >40KW

Cooling way::: Fan forced air cooling

Welding wire diameter:: 0.1-1mm

Machine Type:: Welding Rotator

Rated Capacity::: 1200W

Input voltage::: AC 220V/230V 50/60 HZ

Welding current::: 1-99A adjustable

Suggest thickness:: 0.2-4mm

Executive Standard:: GB155.79.1-2013

Certification:: ISO9001 CCC CE

Product Description

HS-ADS03 Ultra-energy thin plate cold welding machine	HS-ADS02 Intelligent precision cold welding machine	HS-ADS16 Intelligent precision cold welding machine
Automatic dimming welding capp	LED lamp dimming welding cap	Wireless Bluetooth dimming welding cap
Spot cold welding,continuous cold welding, pull welding	Spot cold welding,continuous cold welding, resistance welding	Spot cold welding,continuous cold welding, resistance welding
Welding thickness cold welding :0.5-3mm, pull welding:1-8mm	Welding thickness stainless seteel /iron/cold rolled sheet:0.2-4mm copper aluminum:0.2-2mm	Welding thickness,stainless seteel /iron/cold rolled sheet:0.2-4mm copper aluminum:0.2-2mm
IGBT Suitable for large current	MOSFET Suitable for micro current	MOSFET Suitable for micro current
/	32-bit ARM processor,precision digital circuit	32-bit ARM processor,precision digital circuit
470UF capacitor	82000UF capacitor	82000UF capacitor
/	/	Data storage
Continuous welding speed 1-10 point/second	Continuous welding speed 1-5 point/second	Continuous welding speed 1-7 point/second

Products Parameter
Model :	HS-ADS16	Pulse frequency during continuous output:	1-7HZ
Output voltage:	AC220V/50HZ	Out put welding current:	1-99A adjustable
Instantaneous power output:	>40KW	Output welding time:	1-99 adjustable
Cooling way:	Fan forced air cooling	Welding thickness:	0.2-4mm
Executive Standard:	GB155.79.1-2013	Welding wire diameter:	0.1-1mm

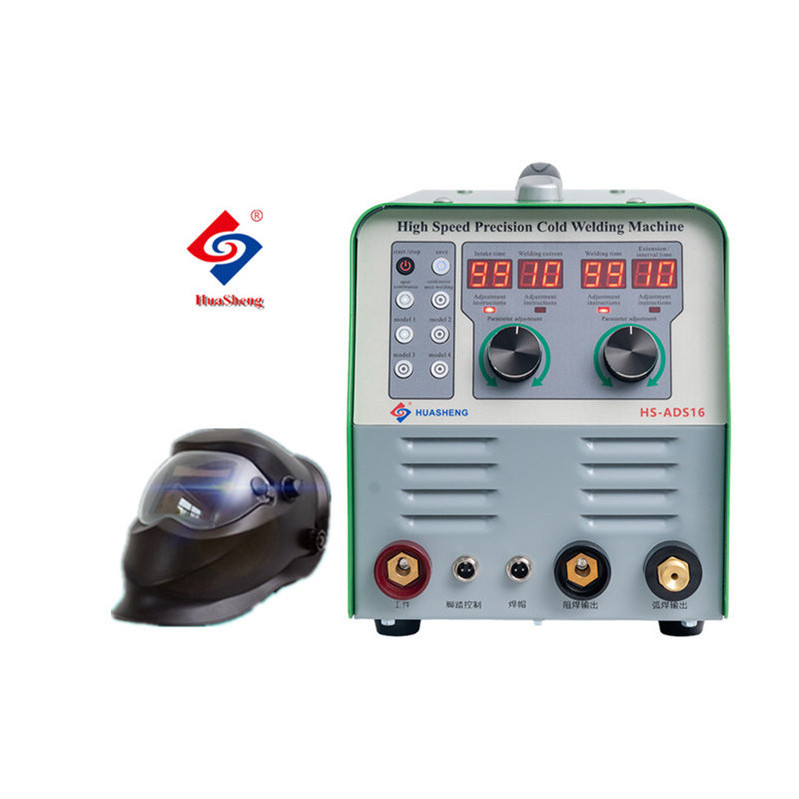

Huasheng ADS16 high speed precision cold welding machine is the fifth generation of cold welding machine ,abandoning the traditional cumbersome wire connection welding cap .
The first time to use the andvanced 2.4G wireless communication band With wireless cap to acheive high-speed connection without delay
The efefective transmission distance of the singal can reach 10 meters ,the strong anti attenyation ability can overcome amng kinds of bad welding environment .
Ma Tairui 3400 mah big capacity lithium battery which can use for a week and standby for a month .

Application

Welding Case

Laser welding machine

Big machine（heavy） High price(experience) Limited firmness( Not solid ）

TIG welding

High technical requirements, 10 years welding experience High calorific value, easy to deform and damage the base metal Less weldable materials

Packing&Shipping

Company Introduction

Anhui Huasheng Electrical and Mechanical Equipment Co., Ltd. is located in the beautiful rice paper village, the most popular tourist destination in Anhui Province Xuancheng Jing County. Beijing-Fuzhou high-speed rail, 205 National Road across the county, and Xuancheng Shanghai-Chongqing Expressway, Wuhu City, the port and the airport to build a strong transport network. Beautiful human environment and convenient traffic conditions, to the company to provide a broad space for development.Company is located in Jingxian County Economic Development Zone, covering over 15,000 square meters with a registered capital of 10 million yuan. Manufacturing and sales, with an annual output of 10 million units of excellent quality and reliable performance of the AC-DC micro-motor series of products, while the production of cold welding machines, mold repair machines, Casting repair machine, cast aluminum cold welder, precision mold repair machines and other high-end products, to fill the gaps in the domestic market-related industries. The company has a strict management mechanism, with independent research and development capabilities.The company set up under the product research and development, marketing, network promotion, the Ministry of Finance, such as more than 10 management departments, the existing 15 senior technical engineers, dozens of top technical personnel, sales team of more than 100 people. Products throughout the country, widely used in mold, casting, electrical, medical, automotive, shipbuilding,boilers, construction, steel, bridge construction and other industries. Involving a wide range of products, products in short supply. In order to meet the needs of the market, the company in Shanghai, Qingdao and other places with a number of subsidiaries.At the same time, the company will work with the leading enterprises in Anhui Province, South China Machinery and Electric Union alliance, the implementation of powerful combination for the company to achieve strategic development to provide a strong guarantee.In the future development process, we will uphold the "integrity-

After Sales Service

Contact us

Sales Manager : Rita Li

Whats App:0086 18056330737

E-mail: sale1huasheng@163.com

We Chat: 0086 18056330737

Skype:0086 18056330737

FAQ

Q1: What is the difference between cold welding machine and argon arc welding?

A1: The cold welding machine is a high-frequency pulse, and it is instantly discharged. The high-energy power stored in the internal capacitor is discharged in about 10 milliseconds, and no heat is accumulated after welding, so it is called a cold welding machine. Argon arc welding is continuous heating, the heat accumulation is too high, the material will be deformed and discolored, and the pulse function is used in time.Due to its long discharge time, about a few hundred milliseconds, it still cannot reduce the heat.
Q2: What is the principle of cold welding machine?
A2: The cold welding machine is a high-frequency pulse, and it is instantly discharged. The high-energy power stored in the internal capacitor is discharged in about 10 milliseconds, and no heat is accumulated after welding, so it is called a cold welding machine.
Q3: Is the argon consumption much?
A3: It's about one third of argon arc welding.

Q4:How is the pump delivered to us?
A4:One or two would be delivered by international express, like DHL, FEDEX, UPS & TNT.While the quantity is big would be delivered by sea,or as customers’ requirment .

Q5:What're your payments?
A5:Most of our customers chose T/T,or Trade assurance Order. We also accept other ways, please confirm with us with exact order,or any other payment ways,pls contact to us .

Q6:It is possible to use our own brand and logo ?
A6:Yes, its acceptable.Warmly welcome.
