Quick Details
-
Application:
-
Other, Road/Slope/retaining wall
-
Design Style:
-
Industrial
-
Place of Origin:
-
China
-
Brand Name:
-
LX geosynthetics
-
Material:
-
HDPE
-
Thickness(textured):
-
1.4mm-1.6mm
-
Thickness(smooth):
-
1.0mm - 1.2 mm
-
Color:
-
Black
-
Height:
-
50-200mm
-
Free sample:
-
Available
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Other, Road/Slope/retaining wall
-
Design Style:
-
Industrial
-
Place of Origin:
-
China
-
Brand Name:
-
LX geosynthetics
-
Material:
-
HDPE
-
Thickness(textured):
-
1.4mm-1.6mm
-
Thickness(smooth):
-
1.0mm - 1.2 mm
-
Color:
-
Black
-
Height:
-
50-200mm
-
Free sample:
-
Available
LIANXIANG -
HDPE
GEOCELL
Product Description

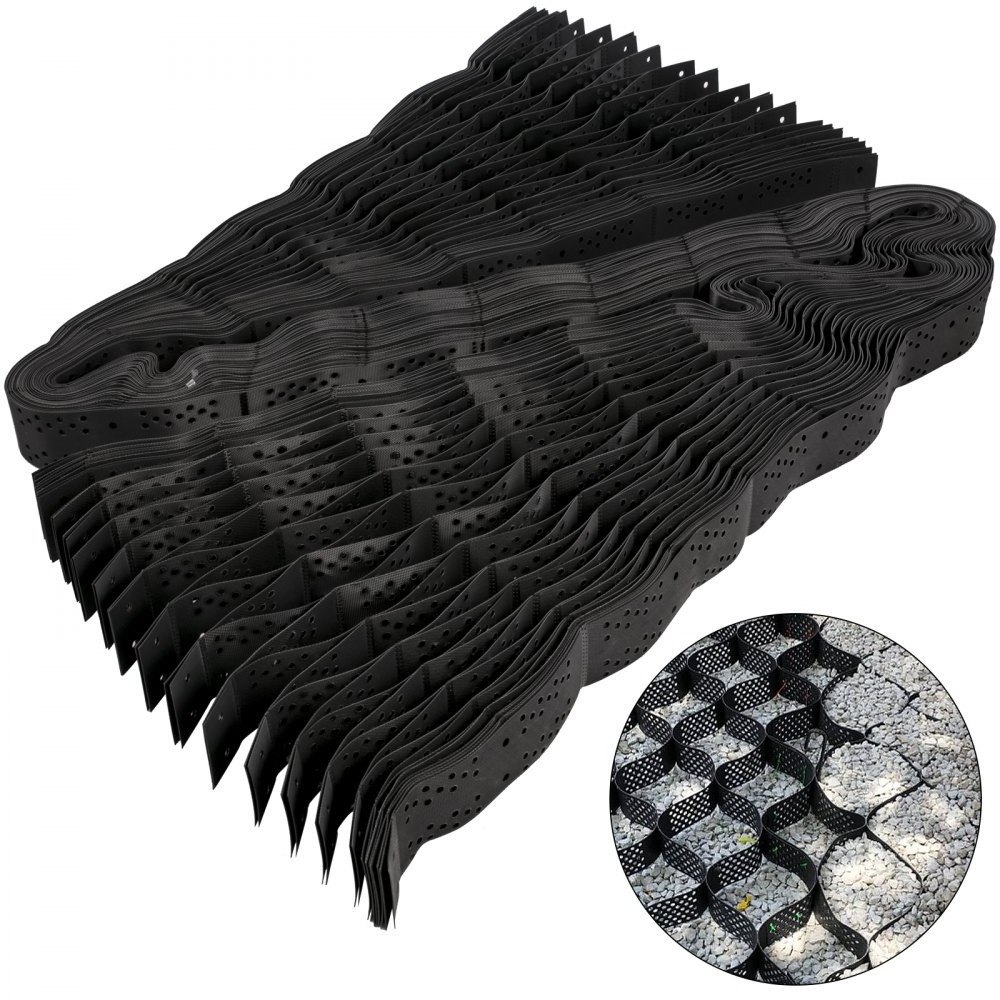

what is HDPE Geocell?
geocell is a three-dimensional cellular structure that can be filled with soil, gravel, or other materials to stabilize steep slopes and prevent erosion. They are made of high-density polyethylene (HDPE) and have an open cellular structure that allows them to conform to the terrain.
Geocells are a revolutionary way of walling off and confining soil, aggregate, or other infill materials. These three-dimensional cellular structures can be expanded during installation so that they form flexible walls with interconnected strips reinforcing tensile strength while also preventing movement by holding everything in place through compression increases due to environmental factors like weathering.
When pressure is applied to the soil enclosed inside a geocell, as in a load support application, lateral strains are created on the perimeter cell walls. The 3D zone of confinement reduces soil particle lateral mobility, but vertical loading on the confined infill results in considerable lateral stress and resistance at the cell-soil interface.
Geocells are used in construction to reduce erosion, stabilize soil, protect channels, and provide structural reinforcement for load support and earth retention.
Geocells were first developed in the early 1990s as a way to improve the stability of roads and bridges. They quickly gained popularity for their ability to stabilize soils and control erosion on steep grounds. Today, geocells are used in a variety of applications, including road construction, landfills, mining operations, and green infrastructure projects.
Geocells are a revolutionary way of walling off and confining soil, aggregate, or other infill materials. These three-dimensional cellular structures can be expanded during installation so that they form flexible walls with interconnected strips reinforcing tensile strength while also preventing movement by holding everything in place through compression increases due to environmental factors like weathering.
When pressure is applied to the soil enclosed inside a geocell, as in a load support application, lateral strains are created on the perimeter cell walls. The 3D zone of confinement reduces soil particle lateral mobility, but vertical loading on the confined infill results in considerable lateral stress and resistance at the cell-soil interface.
Geocells are used in construction to reduce erosion, stabilize soil, protect channels, and provide structural reinforcement for load support and earth retention.
Geocells were first developed in the early 1990s as a way to improve the stability of roads and bridges. They quickly gained popularity for their ability to stabilize soils and control erosion on steep grounds. Today, geocells are used in a variety of applications, including road construction, landfills, mining operations, and green infrastructure projects.
Product Type
Types of Geocells
Geocells are available in various sorts and specifications to solve various issues with different soil types. The best way to categorize geocells is perforated and non-perforated geocells.
Perforated geocells have small holes in them that allow water and air to flow through. This type of geocell is best for applications where the soil needs to be able to breathe, like in a green infrastructure project.
What's more, the perforations improve load distribution and reduce distortion. They are made up of a series of strips that connect to form cells. The strength of the perforated strip and the weld determine the integrity of the geocell.
Non-perforated geocells have smooth, solid walls and are best for applications where water needs to be kept out, like in a landfill. The smooth walls prevent the infiltration of water and help keep the soil inside the cell.
Geomembranes and prefabricated vertical drains are occasionally used as application-specific alternatives to geocells.
Perforated geocells have small holes in them that allow water and air to flow through. This type of geocell is best for applications where the soil needs to be able to breathe, like in a green infrastructure project.
What's more, the perforations improve load distribution and reduce distortion. They are made up of a series of strips that connect to form cells. The strength of the perforated strip and the weld determine the integrity of the geocell.
Non-perforated geocells have smooth, solid walls and are best for applications where water needs to be kept out, like in a landfill. The smooth walls prevent the infiltration of water and help keep the soil inside the cell.
Geomembranes and prefabricated vertical drains are occasionally used as application-specific alternatives to geocells.
Application
Base Stabilization
GeoCell is a confinement system that performs better than conventional crushed stone sections, and it provides an expedient construction technique for access roads over soft ground without being adversely affected by wet weather conditions. GeoCell can also be used to strengthen paved areas.
Slope Reinforcement
On slope applications, GeoCell can be filled with angular rock, concrete or with vegetated soil. The cells confine the infill material, creating a stable layer protecting the slope from erosion. GeoCell is a flexible system that will contour to the subgrade of a slope, reducing preparation time. When filled with vegetated soil or rock, the system is permeable - reducing water
runoff.
runoff.
Channel Protection
GeoCell can be installed on slopes as steep as 60 degrees and on channels with flow velocities greater than 25 ft/s (7.6m/s), depending on infill material. Angular rock is used for velocities up to 10 ft/s (3 m/s), vegetated soil up to 20 ft/s (6m/s) and concrete for velocities greater than 20 ft/s (6 m/s).
Retaining Walls
GeoCell can be used for both cut and fill applications on retaining walls. The flexible HDPE panels are custom made to the front to back dimensions required by the project engineer. GeoCell can be easily installed around curves, pipes or other structures. The panels are constructed with the front facing strip colored green or tan to blend in with the surroundings. GeoCell panels can be stacked to create a 90 degree wall, or they can be stair stepped at every layer to create exposed cell for vegetation. GeoCell is the perfect green wall solution.
Packing & Delivery
Packaging:
Strips packaging or Pallet Packaging
Lead time: Winthin 7 days after receiving the deposit payment
Lead time: Winthin 7 days after receiving the deposit payment
Producing capacity:
4,000 square meters per machine per day
Company Brief
Team Introduction
Shandong Lianxiang Engineering Materials Co., Ltd. for 10 years experience, is located in
Tai’an, Shandong province China. It is a high-tech enterprise integrating the production, development and sales of new geosynthetics such as geocell, geomembrane, geobag, GCL geosynthetic clay liner, geocell,fexible permeable hose, etc.
Our company has passed the ISO9001 quality, environmepational health and safety management system certification, and We aremembers of the China Tech Association of China on geosynthetics.
Our products not only cover almost every province in the country, but also exported to Southeast Asia, Europe, South America,Africa, received widespread praise from customers.
Tai’an, Shandong province China. It is a high-tech enterprise integrating the production, development and sales of new geosynthetics such as geocell, geomembrane, geobag, GCL geosynthetic clay liner, geocell,fexible permeable hose, etc.
Our company has passed the ISO9001 quality, environmepational health and safety management system certification, and We aremembers of the China Tech Association of China on geosynthetics.
Our products not only cover almost every province in the country, but also exported to Southeast Asia, Europe, South America,Africa, received widespread praise from customers.
Our position is to be a comprehensive service brand enterprise in the field of geosynthetics.
Our vision is to provide high quality and efficient material supply solutions for infrastructure projects
Certificaitons
Laboratory
FAQ
Q: Can you send samples?
A: Yes, we are very happy to provide you with free samples to check the quality of our products.
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer, located in Tai’an, Shandong Province for 10 years experience with factories covering an area of 23000 ㎡ with a complete R & D, production, sales, construction, after-sales one-stop service .
Q: Can you produce the product according to customers' requirements?
A: Sure,we are professional manufacturer, we would like provide customized services according to your requirements.
Q: How long is the delivery time?
A: General within 3-7 days after receiving the deposit
Q: How to control product quality?
A: Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping.
A: Yes, we are very happy to provide you with free samples to check the quality of our products.
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer, located in Tai’an, Shandong Province for 10 years experience with factories covering an area of 23000 ㎡ with a complete R & D, production, sales, construction, after-sales one-stop service .
Q: Can you produce the product according to customers' requirements?
A: Sure,we are professional manufacturer, we would like provide customized services according to your requirements.
Q: How long is the delivery time?
A: General within 3-7 days after receiving the deposit
Q: How to control product quality?
A: Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping.
