Quick Details
-
Brand Name:
-
TEREN
-
Model Number:
-
606
-
Max. Current:
-
2A/250VAC
-
Max. Working Pressure:
-
7500pa(-30~75°C)
-
Pressure Range:
-
20~300pa,50~500pa,100~1000pa,0.5~2.5Kpa
-
Pressure limit:
-
7500pa(-30~ 75°C)
-
Pressure connection:
-
6.0mm PVC tube, P1/ "+" high, P2/ "-" low
-
Electrical Contact:
-
SPDT, 2A/250VAC, 1A/30VDC
-
Max. switching frequency:
-
6 switching cycles/min
-
Electrical connection:
-
Flag or screw terminals
-
Repeatability:
-
±2%
-
Materials:
-
housing PC, cover PC, diaphragm silicone and contact silver
-
Protection:
-
IP54
-
Approval:
-
CE
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
1A/30VDC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TEREN
-
Model Number:
-
606
-
Max. Current:
-
2A/250VAC
-
Max. Working Pressure:
-
7500pa(-30~75°C)
-
Pressure Range:
-
20~300pa,50~500pa,100~1000pa,0.5~2.5Kpa
-
Pressure limit:
-
7500pa(-30~ 75°C)
-
Pressure connection:
-
6.0mm PVC tube, P1/ "+" high, P2/ "-" low
-
Electrical Contact:
-
SPDT, 2A/250VAC, 1A/30VDC
-
Max. switching frequency:
-
6 switching cycles/min
-
Electrical connection:
-
Flag or screw terminals
-
Repeatability:
-
±2%
-
Materials:
-
housing PC, cover PC, diaphragm silicone and contact silver
-
Protection:
-
IP54
-
Approval:
-
CE
-
Certification:
-
CE
Product Description
606.0

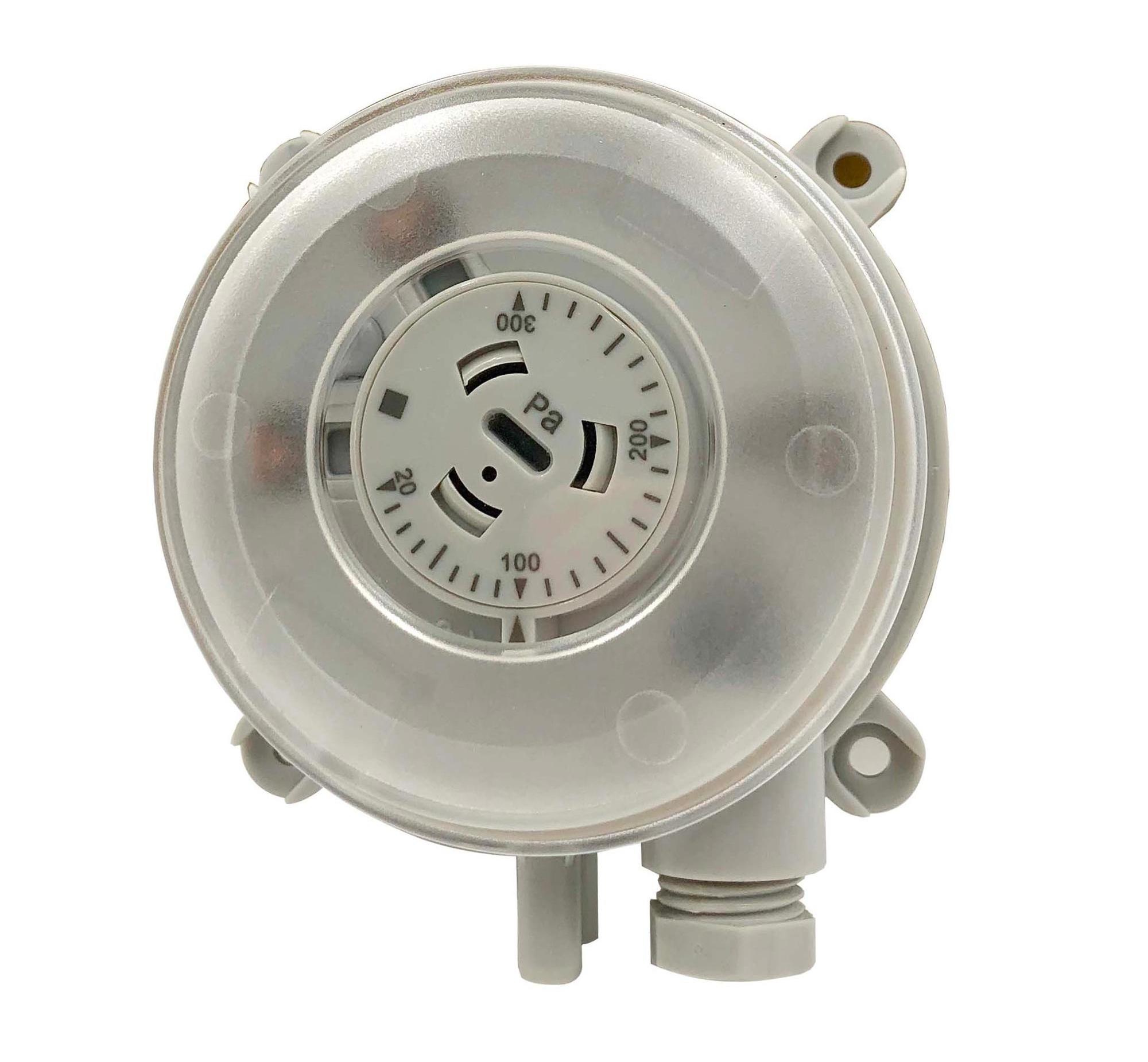

Install ear type
606.1
No ear, with bracket
Screw terminal
Flag terminal
Accessories (should be ordered separately)
Specification
Applications & Features
Monitoring overpressure, vacuum and differential pressure of the air and other non-combustible, non-aggressive gases
|
Item
|
Value
|
|
Place of Origin
|
Guangdong, China
|
|
Brand Name
|
TEREN
|
|
Model Number
|
606
|
|
Adjustable range
|
4 ranges, see models
|
|
Pressure limit
|
7500Pa (-30~75°C)
|
|
Working temperature
|
-30~75°C
|
|
Storage temperature
|
-30~75°C
|
|
Pressure connection
|
φ6.0mm PVC tube, P1/ “+” high, P2/ “-” low
|
|
Service life
|
over 10
6
switching cycles
|
|
Electrical Contact
|
SPDT, 2A/250VAC, 1A/30VDC
|
|
Max. switching frequency
|
6 switching cycles/min
|
|
Electrical connection
|
Flag or screw terminals
|
|
Repeatability
|
±2%
|
|
Materials
|
housing PC, diaphragm silicone, contact silver or gold plated
|
|
Weight
|
135g with bracket, 85g without bracket
|
|
Protection
|
IP54
|
|
Approval
|
CE
|
Model Table
|
Model
|
606
|
|
|
|
|
|
Adjustable Air Differential Pressure Switch
|
|
Enclosure
|
|
0
1
|
|
|
|
|
With install ear
No ear, with bracket
|
|
Adjustable range
|
|
|
0
1
2
3
|
|
|
|
20~300Pa
50~500Pa
100~1000Pa
0.5~2.5kPa
|
|
Engineering unit
|
|
|
|
0
7
8
9
|
|
|
Pa
mbar
inch wc
mm wc
|
|
Contact material
|
|
|
|
|
0
1
|
|
Silver plated
Gold plated
|
|
Terminal
|
|
|
|
|
|
0
1
|
Flag terminal
Screw terminal
|
606.0xxxx has OEM package with 60 pcs/carton. P/N is 606.0xxxx-OEM.
Dead Band
|
Part No.
|
Range
|
Dead Band
|
|
606.X0XXX
|
20-300Pa
|
Typical 15Pa
|
|
606.X1XXX
|
50-500Pa
|
Typical 25Pa
|
|
606.X2XXX
|
100-1000Pa
|
Typical 50Pa
|
|
606.X3XXX
|
0.5-2.5kPa
|
Typical 100Pa
|
Dead Band is factory set. Customers can not adjust.
