Quick Details
-
Weight:
-
50kg
-
package:
-
carton box
-
Main Material:
-
Metal
-
Factory Location:
-
Shanghai (China)
-
Business Type:
-
Manufacturer, Trading
-
desigation:
-

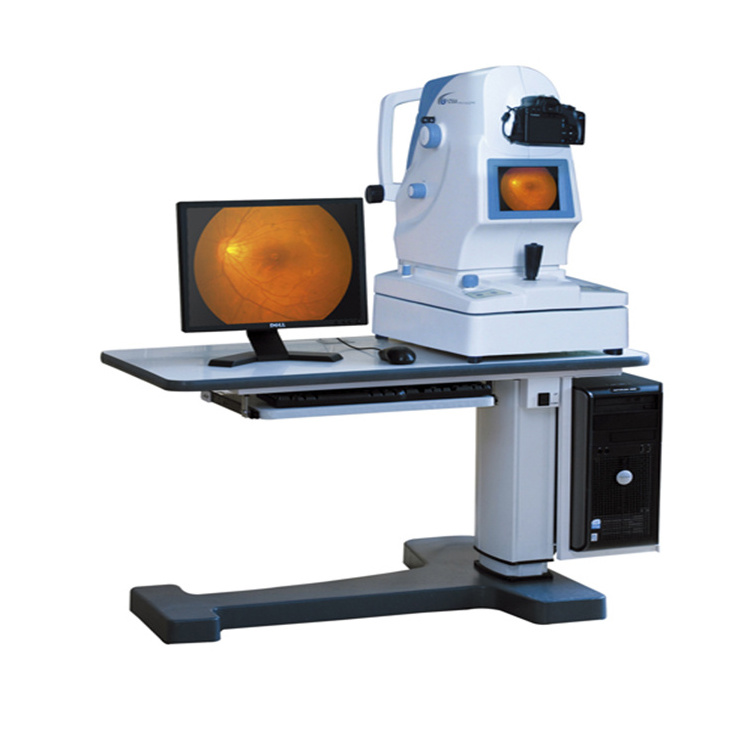

Popular optical digital fundus camera
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Link
-
Model Number:
-
YZ50A
-
Weight:
-
50kg
-
package:
-
carton box
-
Main Material:
-
Metal
-
Factory Location:
-
Shanghai (China)
-
Business Type:
-
Manufacturer, Trading
-
desigation:
-
Popular optical digital fundus camera
Product Description
Feature
1. Patient can have a comfortable experience during the shooting program while using a chinrest which is designed in accordance
with ergonomics.
2. With excellent aspheric lens, a high efficient program of optical imaging is provided for operators. Split lines make the
focusing operation much more convenient, and pupil alignment spots make the location much more accurate.
3. Using a high resolution DSLR, we can provide you HD images.
4. Operators can observe the whole shooting program through a 5.7 inche LCD screen.
5. A simple operation interface can make the shooting operation much convenient.
1. Patient can have a comfortable experience during the shooting program while using a chinrest which is designed in accordance
with ergonomics.
2. With excellent aspheric lens, a high efficient program of optical imaging is provided for operators. Split lines make the
focusing operation much more convenient, and pupil alignment spots make the location much more accurate.
3. Using a high resolution DSLR, we can provide you HD images.
4. Operators can observe the whole shooting program through a 5.7 inche LCD screen.
5. A simple operation interface can make the shooting operation much convenient.
Specification
|
Model
|
|
YZ50A1
|
YZ50A2
|
||
|
Type
|
|
Non-Mydriatic
|
|
||
|
Picture Angle
|
|
45°
|
|
||
|
Working Angle
|
|
41mm
|
|
||
|
Minimum Pupil Diameter
|
|
3.7mm
|
|
||
|
Display
|
|
5.7 inch TFT Color LCD
|
|
||
|
Disptric Compensation for Patient's Eye
|
|
-25D to -11D with minus dioptric lens
-12D to +10D with no dioptric lens +9D to +25D with plus dioptric lens |
|
||
|
Focusing Mode
|
|
Infrared split bright target coincidence
|
|
||
|
Light Source
|
for view
|
Halogen lamp 12V, 30W with infrared filter
|
|
||
|
|
for shot
|
Xenon flash lamp (max. 90Ws)
|
|
||
|
Flash Adjustment
|
|
8 levels: 30Ws- 90Ws with 7.5Ws increment
|
|
||
|
Internal Fixation Target
|
|
LCD(9 points)
|
|
||
|
|
|
Right / Left eye auto detection
|
|
||
|
Horizontal Movement
|
|
50 mm(back and forth), 80 mm(left and right)
|
|
||
|
Vertical movement
|
|
30mm
|
|
||
|
Chinrest movement
|
|
62mm
|
|
||
|
Auto Tracking / Auto shot
|
|
Manual
|
X-Y-Z direction
|
||
|
Imaging Device
|
|
High resolution digital SLR camera
|
|
||
|
Power Supply
|
|
Voltage:AC 110~220 V±10% Frequency: 50~60 Hz
|
|
||
|
Power consumption
|
|
150 VA
|
|
||
|
Dimension
|
|
307 mm(W)×555 mm (D)×600(H)
|
|
||
|
Weight
|
|
32KG
|
|
||
