Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Leader
-
Voltage:
-
380V,3phase,50HZ
-
Dimension(L*W*H):
-
1650*1250*1700mm
-
Weight:
-
500 KG
-
Keyword:
-
Sugar/pollen tumbler screening sieve /grain sieving sifter machine
-
Capacity:
-
2-50t
-
Motor brand:
-
China famous band
-
Maerial:
-
carbon steel and stainless steel
-
Diameter(mm):
-
600-2900
-
Screen cleaning system:
-
balls,brushes,air jet,ultrasound etc
-
Amplitude:
-
60-80 mm horizontally and 5-40 mm vertically
-
Sieving accurancy:
-
over 95%
-
Usage:
-
Separation Screening
-
Layer(s):
-
1-5Layer
Quick Details
-
Type:
-
Circular
-
Marketing Type:
-
Hot Product 2021
-
Warranty of core components:
-
1.5 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Leader
-
Voltage:
-
380V,3phase,50HZ
-
Dimension(L*W*H):
-
1650*1250*1700mm
-
Weight:
-
500 KG
-
Keyword:
-
Sugar/pollen tumbler screening sieve /grain sieving sifter machine
-
Capacity:
-
2-50t
-
Motor brand:
-
China famous band
-
Maerial:
-
carbon steel and stainless steel
-
Diameter(mm):
-
600-2900
-
Screen cleaning system:
-
balls,brushes,air jet,ultrasound etc
-
Amplitude:
-
60-80 mm horizontally and 5-40 mm vertically
-
Sieving accurancy:
-
over 95%
-
Usage:
-
Separation Screening
-
Layer(s):
-
1-5Layer
Products Description

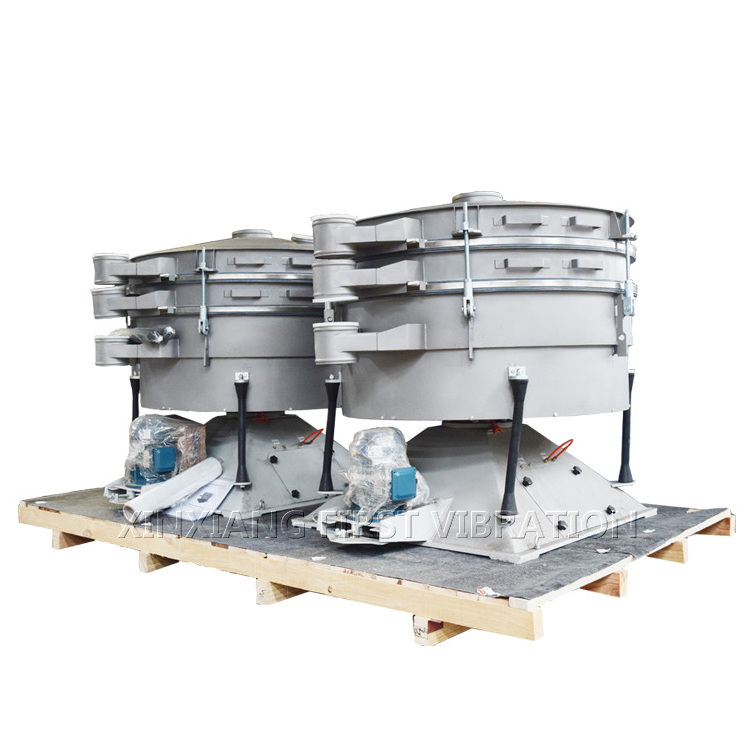

tumbler vibrating screen
100-325mesh Quartz sand zirconia powder sorting tumbler vibrating screen machine machine which is designed to meet the requirements of large output and high-density sieving.It make use of artificial sieving movement successfully(its sieving precision,sieve efficiency and sieve life is 5-10 times of common sieve machine),and suitable for all the fine,ultra-fine powder and special materials,particularly suitablefor materials which are difficulltto deal with
.
Technical Parameters
|
Model
|
Diameter
(mm)
|
Sieving area
(㎡)
|
Inclination angle
( °)
|
Powder
(kw)
|
|
YBS-1200
|
1200
|
0.98
|
0-10
|
2.2
|
|
YBS-1600
|
1600
|
1.81
|
0
|
4
|
|
YBS-2000
|
2000
|
2.80
|
|
4
|
|
YBS-2400
|
2400
|
4.15
|
|
5.5
|
|
YBS-2600
|
2600
|
5.31
|
|
5.5
|
Applied Field
It is widely for fine powder and special materials, particularly suitable for materials which are difficult to classify.Details are as follows: Salt,EPS, citric acid, metallic silicon, glass powder, aluminum hydroxide, fertilizer, cellulose, crumb rubber,mineral etc.
Products Showcase
Main Features:
* Large capacity than normal vibrating screen;
* The accurate is six stage separation, and screening efficiency is highly from 95% to 99%
* Using silicone rubber ball, ultrasonic device such as efficient clean network system.
* Without blocking mesh net,Sealed dust and safe operation;
* The acceleration is 4.5 times lower than the vibrating screen,so the screening parts life increase and reduce maintenance;
* With low noise which is less then 75 db. Optimize the weight balance, foundation dynamic load is low.
* The accurate is six stage separation, and screening efficiency is highly from 95% to 99%
* Using silicone rubber ball, ultrasonic device such as efficient clean network system.
* Without blocking mesh net,Sealed dust and safe operation;
* The acceleration is 4.5 times lower than the vibrating screen,so the screening parts life increase and reduce maintenance;
* With low noise which is less then 75 db. Optimize the weight balance, foundation dynamic load is low.
