Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
5.5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GoodCut
-
Voltage:
-
AC380V/3PH/50Hz
-
Dimension(L*W*H):
-
2500*1800*1000mm
-
Power (kW):
-
5.5
-
Weight (KG):
-
1350
-
Warranty of core components:
-
2 Year
-
Product name:
-
1325 CNC Stone Engraver for Stone Carving and Cutting
-
Working area:
-
1300x2500mm
-
Table Surface:
-
Aluminum Profile and PVC T-Slot Table
-
Control system:
-
Mach 3/Weihong/DSP
-
Spindle:
-
5.5kw Water Cooling Spindle
-
Motor and driver:
-
Leashine 450C Stepper Motor
-
Inverter:
-
Best Inverter
-
Transmission:
-
Taiwan HIWIN Guide Rails, TBI ball screw
-
Table structure:
-
Heavy Duay Frame
-
Application:
-
Stone, marble, granite etc
Quick Details
-
Working Table Size(mm):
-
1300*2500*300mm
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
5.5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GoodCut
-
Voltage:
-
AC380V/3PH/50Hz
-
Dimension(L*W*H):
-
2500*1800*1000mm
-
Power (kW):
-
5.5
-
Weight (KG):
-
1350
-
Warranty of core components:
-
2 Year
-
Product name:
-
1325 CNC Stone Engraver for Stone Carving and Cutting
-
Working area:
-
1300x2500mm
-
Table Surface:
-
Aluminum Profile and PVC T-Slot Table
-
Control system:
-
Mach 3/Weihong/DSP
-
Spindle:
-
5.5kw Water Cooling Spindle
-
Motor and driver:
-
Leashine 450C Stepper Motor
-
Inverter:
-
Best Inverter
-
Transmission:
-
Taiwan HIWIN Guide Rails, TBI ball screw
-
Table structure:
-
Heavy Duay Frame
-
Application:
-
Stone, marble, granite etc

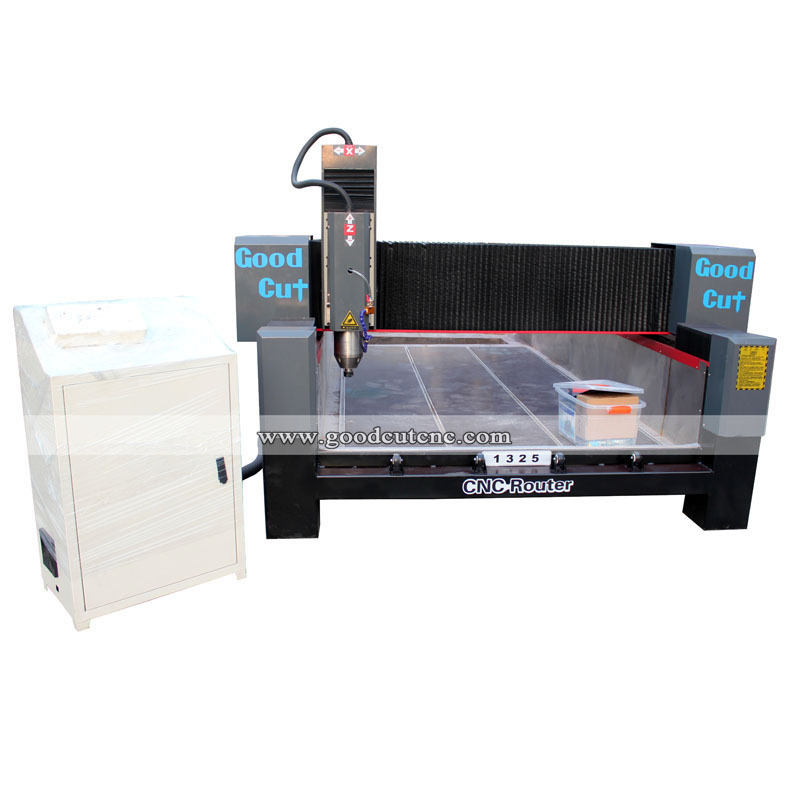

1325 CNC Stone Engraver for Stone Carving and Cutting with Water Cooling Spindle
Parameter:
|
Model
|
GC1325S CNC ROUTER
|
|
X/Y Axis Working Size
|
1300mm*2500mm(optional)
|
|
Z-Axis working Size
|
200mm(available for options)
|
|
Working Materials
|
MDF,Acrylic,stone, iron,alum,copper,bamboo,jade,etc.
|
|
Working Table
|
Aluminum working table.
|
|
Max travelling speed
|
30m/min
|
|
Max working speed
|
20m/min
|
|
Spindle
|
Air cooling spindle or water cooling spindle(optional) Brand:Italy HSD,CS,other brands(optional)
|
|
Spindle Power
|
3kw,4.5kw,6kw,7.5kw,9kw,etc(optional)
|
|
Inverter
|
Delta, Alpha,Fulin,Panasonic,Yaskawa,etc
|
|
Working voltage
|
AC380V/220V
|
|
Guide Rail
|
HIWIN, PMI, PDF,NSK ,etc
|
|
Transmission
|
XY-High precision gear transmission Z-TBI BALL SCREW
|
|
Control systerm
|
DSP, NCstudio,Mach3,syntec(optional)
|
|
Application
|
Advertisement,crafts,moulding,seal, label,wood processing,etc.
|
Feature:
1. X and Y axis use Taiwan Hiwin linear square guide rail and transmission with YYC helical gear rack, insure of high precision and high stability.
2. Z-axis, adopt imported high accuracy ball screw, ensures more stable movement and high
accuracy.
3. High speed stepper drivers will largely increase the engraving speed.
4. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to
be deformed. Lathe body is fabricated by ourselves to make sure best quality and low price.
5. The rotary fixed horizontally at the end of the lathe body, when don't use the rotary, the machine can do all the engraving or cutting work as other cnc routers, improving the
utilization rate.
Advantages:
1. Machine body design with high strength and double driving motors of Y axis, which have more reasonable design, fast processing speed, easy-operated maintenance and low fault rate.
2. Advanced CNC processing system has powerful functions and humanized operation, as well as can receive data through U disk or network.
3. Imported and high precise linear guide ways have features such as stable operation, high precision and steady support, which prolong service life of machines.
4. Z axis adopts imported ball screw with industrial level can positioning accurately and make processing effects more perfect.
5. Energy-saving vacuum absorption table function and dust collectors can protect the environment.
6. Software has good compatibility. The machine can be compatible with various CAD/CAM design & making software such as TYPE3, Artcam, JD, Artcut, UG, MasterCAM, PowerMill and so on.
Application:
1. Suitable for natural marble, granite, bluestone, sandstone, artificial stone, tombstone, milestone, ceramic tile, jade, crystal, ceramics, glass, plastic, wood, bamboo, cambered surface, sphere, stainless steel, iron, copper, aluminum, titanium alloy, can doing 3D embossment, and line engraving, beveling, drilling 2D engraving.
2. Such as granite stone can be layered engraving to 3mm.
3. Marble, bluestone can be engraving to 3mm on time.
4. Engraving characters, letters, pattern, intaglio, rilievi, handwriting, ancient calligraphy, abraziune colored drawing, flat carving colored drawing, etc. on stone, glass, depth can control optionally, to reach the artistic effect.
