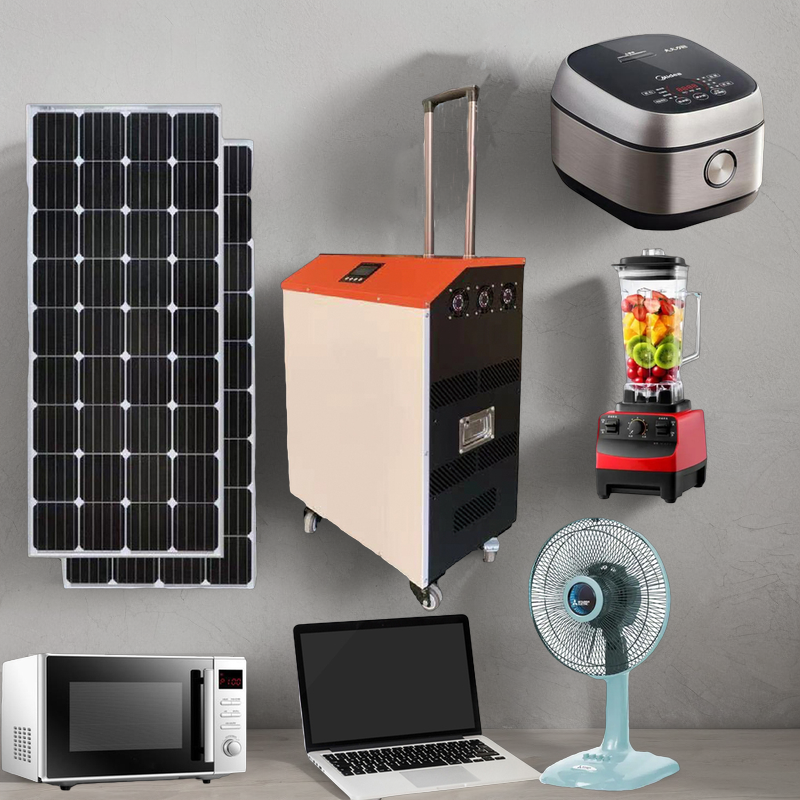

PYSUN 5000w 5kwh Built-In Inverter Emergency Power Supply Facilities Power Storage Backup Solar Power Generator

PYSUN 5000w 5kwh Built-In Inverter Emergency Power Supply Facilities Power Storage Backup Solar Power Generator

FOB Reference Price: Get Latest Price

≥30 Sets

US $1224

≥100 Sets

US $1098

≥500 Sets

US $898.2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Controller Type:: MPPT

Model Number:: Solar Power Generator

Place of Origin:: Jiangsu, China

Brand Name:: PYSUN

Continuous Max. Output Power:: 5000W

Battery:: 25.6V 120A

Photovoltaic Panel Access:: PV Voltage ≤ 100V, PV Current ≤ 30A

Ac Charging:: Input: AC165V-240V; Output: 29.2V/15A

Dc Output:: USB:5V/1A, 2.1A; DC: 12V/10A

Conversion Efficiency:: ≥93%

Weight:: 75KG

Size:: 620mm*415mm*860mm

Operating Temperature:: -10℃-40℃

Storage Temperature:: -20℃-70℃

Quick Details

Power Source:: AC Adaptor, Solar Panel

Battery Type:: LiFePO4

Inverter Type:: Pure Sine Wave

Controller Type:: MPPT

Model Number:: Solar Power Generator

Place of Origin:: Jiangsu, China

Brand Name:: PYSUN

Continuous Max. Output Power:: 5000W

Battery:: 25.6V 120A

Photovoltaic Panel Access:: PV Voltage ≤ 100V, PV Current ≤ 30A

Ac Charging:: Input: AC165V-240V; Output: 29.2V/15A

Dc Output:: USB:5V/1A, 2.1A; DC: 12V/10A

Conversion Efficiency:: ≥93%

Weight:: 75KG

Size:: 620mm*415mm*860mm

Operating Temperature:: -10℃-40℃

Storage Temperature:: -20℃-70℃

Model No.	APG3000	APG5000
Battery Parameters:	25.6V 120A	51.2V 100A
Weight:	30KG	75KG
Dimensions:	550mm415mm860mm	620mm415mm860mm
Input Voltage (VDC):	20-29.2V	40-55V
Output Frequency (Hz):	50/60Hz±5%	50/60Hz±5%
Output Power:	3000W	5000W
Max. PV Output Power:	5000W	9000W
Max. PV input Power&Current	PV input voltage ≤ 100V PV input current ≤ 30A	PV input voltage: 30-150V PV input current: ≤ 60A
Output Waveform:	Pure sine wave	Pure sine wave
Conversion Efficiency:	≥93%	≥93%
AC Charging Parameter:	Input: AC 165V-240V Output: 29.2V/15A	Input: AC 165V-240V
DC Output:	1.USB:5V/1A 2.1A 2.DC: 12V/10A	1.USB:5V/1A 2.1A 2.DC: 12V/10A
Inverter Protection Function:	Input under-voltage, over-voltage, anti-reverse connection protection, output overload, over-temperature, short-circuit protection.
Operating Environment Temperature:	-10~-40℃	-10~-40℃
Storage Environment Temperature:	-20~70℃	-20~70℃
Altitude:	0-15000m	0-15000m

Residential Energy Storage System

Solar Rack & Pack Battery

5kw(SolarInverter)+5kwh/10kwh/15kwh Advantages:

•Multiple sizes available
•Patented design for appearance
•Easy installation
•Customizable panel service
•Supports parallel expansion
•Customizable BMS online communication protocol.
Application Scenarios:
Backup power systems, data processing centers, home backup power, hospitals, banks, small businesses, uninterrupted power supply
for small base stations.

Off Grid Stackable Battery System

5kw(SRNE/Deye)+ 5kwh/10kwh/15kwh

Advantages:
•Longer runtime and larger energy storage capacity. •Flexibility: modular design and scalability according to specific
requirements. •High power output •Space efficiency: Effectively utilizes limited space.
Application Scenarios:
Renewable energy storage, network backup power, Home energy storage, industrial automation,
emergency backup power, and other industrial applications.

All in One Home Solar Energy Storage System

Advantages:
•Expandable capacity options
•LiFePo4 battery
•Easy installation
•Split or all-in-one types to choose from
•Wall-mounted/Stacked models

Application:
•Solar self-consumption

•Peak shaving and load shifting

•Emergency backup power

•Energy management and optimization
