Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
DP-L55
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5.0x2.2x4.5m
-
After Warranty Service:
-
No service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
Automatic:
-
Yes
-
Film Width:
-
300-600mm
-
Suitable Material:
-
HDPE LDPE LLDPE
-
Film Thickness(HD):
-
0.009-0.10mm
-
Film Thicknedd(LD):
-
0.02-0.15mm
-
Film Extrusion Output(HD):
-
40kg/hr
-
Film Extrusion Output(LD):
-
50kg/hr
-
Name:
-
polyethylene PE LDPE HDPE Plastic Blown Film Blowing Extruder Machine
-
Certification:
-
CE ISO9001
-
Film Thickness (mm):
-
0.009 - 0.05
Quick Details
-
Output (kg/h):
-
40 - 50
-
Number of Layers:
-
Single-layer
-
Brand Name:
-
DEPAI
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
DP-L55
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5.0x2.2x4.5m
-
After Warranty Service:
-
No service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
Automatic:
-
Yes
-
Film Width:
-
300-600mm
-
Suitable Material:
-
HDPE LDPE LLDPE
-
Film Thickness(HD):
-
0.009-0.10mm
-
Film Thicknedd(LD):
-
0.02-0.15mm
-
Film Extrusion Output(HD):
-
40kg/hr
-
Film Extrusion Output(LD):
-
50kg/hr
-
Name:
-
polyethylene PE LDPE HDPE Plastic Blown Film Blowing Extruder Machine
-
Certification:
-
CE ISO9001
-
Film Thickness (mm):
-
0.009 - 0.05

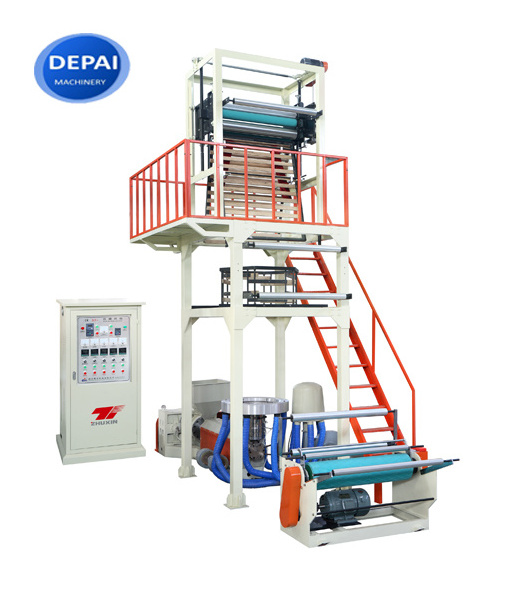

L55 Hot Sale Polyethylene PE LDPE HDPE Plastic Blown Film Blowing Extruder Machine For Sale
Product Description
The machine body is made of square steel, with frequency converter controlled traction, friction single winder and elevator, which is suitable for blowing HDPE/LDPE industrial and agriculture film.
Main Specification
| Model | DP-L45 | DP-L50 | DP-L55 | DP-L 60 | DP-L 65 | DP-L 70 |
| Suitable material | HDPE,LDPE,LLDPE | |||||
| Reduced diameter of film(mm) | 200-500 | 300-600 | 400-800 | 300-900 | 300-1000 | 400-1200 |
| Film thickness of (mm) | HD:0.009-0.05 LD:0.02-0.15 | |||||
| Max.output(kg/h) | HD40 | HD 45 | HD 55 | HD 60 | HD65 | HD70 |
| LD45 | LD 50 | LD 60 | LD65 | LD70 | LD75 | |
| Extruder | ||||||
| Screw diameter | 45 | 50 | 55 | 60 | 65 | 70 |
| Screw L/D | 28:1/30:1 | |||||
| Screw material | Sacm-645/38 crmoala | |||||
| Cylinder material | Sacm-645/38 crmoala | |||||
| Cylinder cooling(w) | 250*2 | 250*2 | 370*2 | 550*2 | 550*3 | 550*3 |
| Main motor(kw) | 7.5 | 11 | 15 | 18 | 22 | 25 |
| Cylinder temperature control | 3 | 3 | 3 | 3 | 3 | 3 |
| Average power consume(kw) | 10 | 12 | 18 | 25 | 30 | 32 |
| Type of die | ||||||
| Die size(mm) | HD60/80 LD100/120 | HD60/100 LD120/150 | HD80/100 LD180/200 | HD100/120 LD200/220 | HD120/150 LD220/250 | HD150/180 LD250/280 |
| Temperature control | 3 | 3 | 3 | 3 | 3 | 3 |
| Air ring | 1 | 1 | 1 | 1 | 1 | 1 |
| Air blower power (kw) | 1.5 | 2.2 | 3 | 3.2 | 4 | 4.5 |
| Center steady stick | 1 | 1 | 1 | 1 | 1 | 1 |
| Take up unit | ||||||
| Roller width(mm) | 160*650 | 160*850 | 165*1100 | 165*1200 | 165*1400 | 160*1800 |
| Effective width(mm) | 500 | 600 | 800 | 1000 | 1200 | 1500 |
| Height adjustable Type(mm) | 800 | 800 | 800 | 800 | 800 | 800 |
| Take-up speed(m/min) | 10-100 | 10-100 | 10-100 | 10-100 | 10-80 | 10-80 |
| Take-up motor(2.2) | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 |
| Winding Unit | ||||||
| Type | Surface friction type | |||||
| Winding motor(N.m) | 10 | 10 | 10 | 10 | 10 | 10 |
| Winding speed(m/min) | 10-100 | 10-100 | 10-100 | 10-80 | 10-80 | 10-80 |
| Voltage | 380V,50HZ,3PHASE | |||||
| Outline diameter(L*W*H)(mm) | 5000×1800×4200 | 5500*2200*4500 | 5500*2500*5200 | 5000*2400*4200 | 5500*2500*5200 | 5800*7800*6300 |
| Weight(kg) | 2000 | 2200 | 2500 | 2800 | 3000 | 3200 |
Optional Parts
1. Auto Loader
2. Film Corona Surface Treater
3. Rotary Die Head
4. Air Compressor
5. Mechanics Screen Changer
6. Double Winder
7. Air shaft
