Quick Details
-
Model Number:
-
DL-4.0DJ
-
Warranty:
-
12 Months
-
Color:
-
Customer Request
-
Certification:
-
CE/ISO90001
Quick Details
-
Lifting Capacity:
-
4000KG
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DELILAI
-
Model Number:
-
DL-4.0DJ
-
Warranty:
-
12 Months
-
Color:
-
Customer Request
-
Certification:
-
CE/ISO90001
Product Description
Features
1.Thickened 25mm solidsteel scissor arm,
high strength, corrosion deformation resistance.
2.Hydraulic lock and mechanical double safety device. automatic unlocking when descending.
3.
The oil cylinder adopts imported sealing rings.
4.All imported sealsand ball valves are equipped with hydraulic explosion-proof devices.
5.Precise laser cutting technology, accurate size, smooth cut and high finish.
6.All shafts are equipped with wearresistant bearings and macromolecule wear-resistant sliding blocks.
7.24V safety control circuit.
Specification
|
Brand name
|
DELILAI
|
|
|
Product name
|

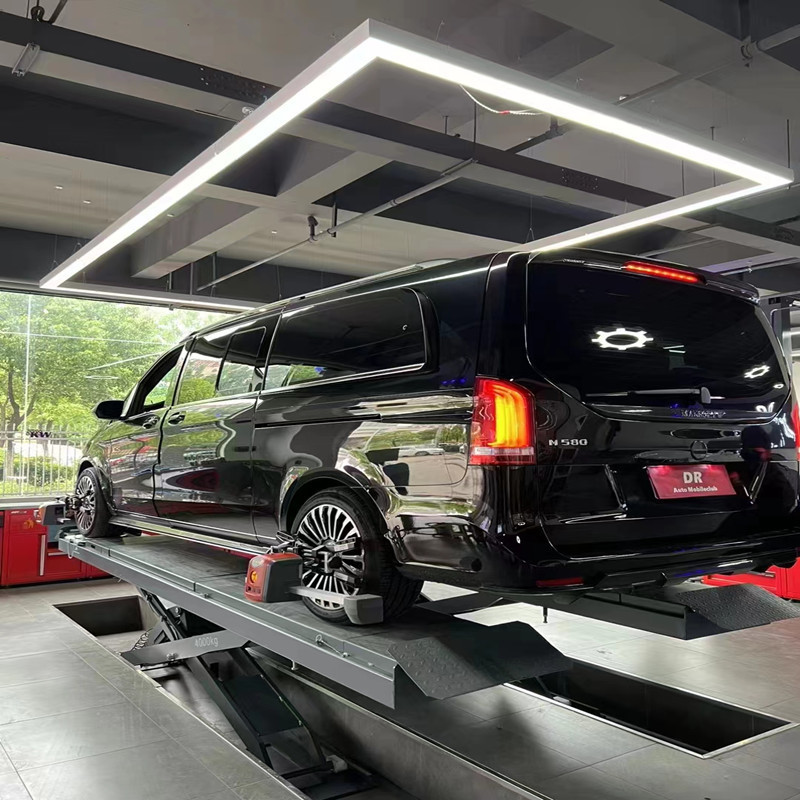

in ground main-sub large scissor car lift
|
|
|
Model number
|
DL-4.0DJ
|
|
|
main scissor Lifting capacity
|
4T
|
|
|
sub scissor lifting capacity
|
3.5T
|
|
|
main scissor Lifting height
|
330-1830mm
|
|
|
sub scissor lifting height
|
450mm
|
|
|
main scissor Table length
|
4500mm
|
|
|
sub scissor table length
|
1400-1630mm
|
|
|
main scissor Table width
|
620mm
|
|
|
sub scissor table width
|
550mm
|
|
|
Moto power
|
2.2kw
|
|
|
Voltage
|
380v/220v/customized
|
|
|
Air pressure
|
0.4-0.6mpa
|
|
Details Images
01
The platform length of the sub scissor canbe extended from 1400mm to 1630mm
02
scissor arm is made of 25mm solid manganese steel plate
03
Mechanical hydraulic double locking devic
4
Safety lock teeth-durable and safe
05
Polymer wear-resistant slider
06
Each shaft has oil filling hole，convenient for maintenance and have long service time
07
Booster arm lifts more
08
main scissor side adopts 60mmX120MM s
quare tube ,more solid
09
oil Cylinder
