Quick Details
-
Brand Name:
-
Unionwell
-
Model Number:
-

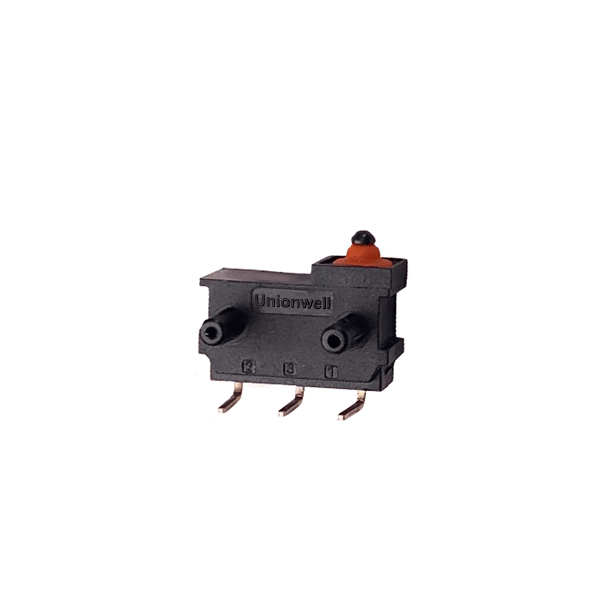

G303-130L00A67U
-
Max. Current:
-
3A
-
Operating Temperature:
-
-40℃~85℃
-
Protection Level:
-
IP67
-
IP level:
-
ip67
-
Product Name:
-
G303-130L00A67U
-
Application:
-
Car Part
-
Supply Capacity:
-
600,000pcs/month
-
Quality:
-
priority
-
Contact Resistance:
-
100m Ohm Max(without wire type)
-
Insulation Resistance:
-
100M Ohm Min
-
Electrical life:
-
Min.100,000cycles
-
Mechanical Life:
-
Min.500,000cycles
-
Certification:
-
ROHS
-
Rating:
-
0. 1A
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Unionwell
-
Model Number:
-
G303-130L00A67U
-
Max. Current:
-
3A
-
Operating Temperature:
-
-40℃~85℃
-
Protection Level:
-
IP67
-
IP level:
-
ip67
-
Product Name:
-
G303-130L00A67U
-
Application:
-
Car Part
-
Supply Capacity:
-
600,000pcs/month
-
Quality:
-
priority
-
Contact Resistance:
-
100m Ohm Max(without wire type)
-
Insulation Resistance:
-
100M Ohm Min
-
Electrical life:
-
Min.100,000cycles
-
Mechanical Life:
-
Min.500,000cycles
-
Certification:
-
ROHS
-
Rating:
-
0. 1A
Feature
-Designed for water and dust tight(IP67)
-Small compact size
-Global safety approvals
-Long life and high reliability
-Variety of levers
-Wide range of wiring terminals
-Widely used in Automotive Electronics, Appliance and Industrial Control etc.
-Customized designs
-Designed for water and dust tight(IP67)
-Small compact size
-Global safety approvals
-Long life and high reliability
-Variety of levers
-Wide range of wiring terminals
-Widely used in Automotive Electronics, Appliance and Industrial Control etc.
-Customized designs
Rating：
0.1A /125VAC; 3A/ 12VDC ; 0.1A /250VAC; 0.1A/ 48VDC u 1E5.
Operating
FrequencyElectrical: 0.1A-120/3A-10~30 cycles/minute
Operating Frequency
Mechanical:
120 cycles/minute
Contact Resistance(Initiative):
100mΩ Max
Insulation Resistance(at 500VDC):
100MΩ Min
Vibration durability:
10~55Hz, move 0.75mm(p-p)
Dielectric Strength：
500VAC (50~60Hz)
Storage Temperature：
-40℃-+85℃
Storage Humidity：
85% RH Max
Service Life
Electrical：
6,000~500,000/cycles(Depend on part number)
Service
Mechanical：
Min.500,000/cycles
