Quick Details
-
Screw Speed (rpm):
-
55 rpm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LIFEI
-
Voltage:
-
customized, customized
-
Dimension(L*W*H):
-
customized, customized
-
Power (kW):
-
45
-
Weight:
-
5500 KG, 5500-12000 KG
-
Computerized:
-
Yes
-
Model Number:
-
LF- LSJ
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
25:1
-
Screw diameter (mm):
-
110-140
-
Screw Speed (rpm):
-
55 rpm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LIFEI
-
Voltage:
-
customized, customized
-
Dimension(L*W*H):
-
customized, customized
-
Power (kW):
-
45
-
Weight:
-
5500 KG, 5500-12000 KG
-
Computerized:
-
Yes
-
Model Number:
-
LF- LSJ

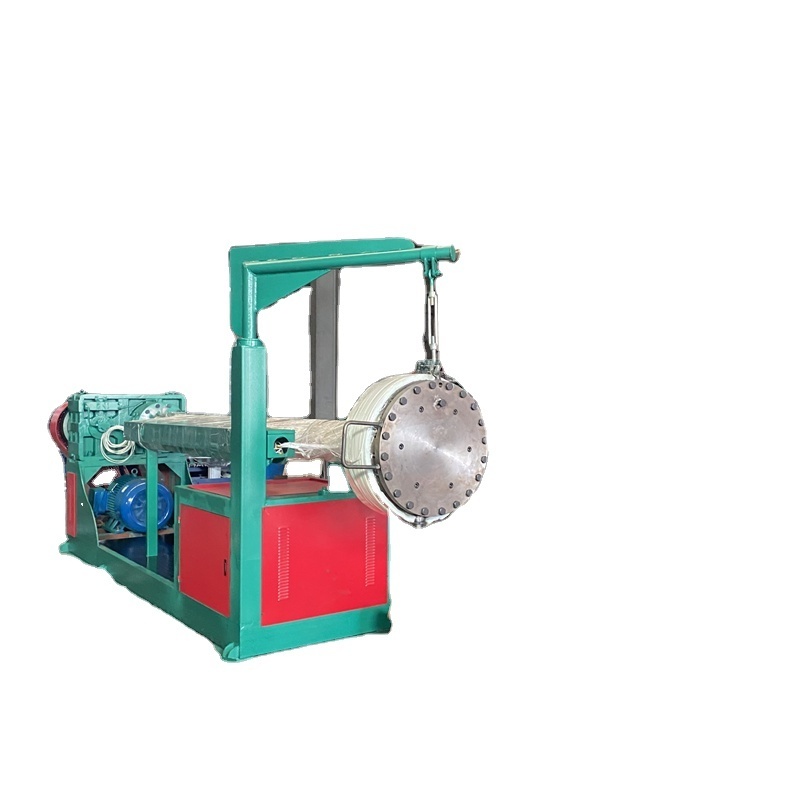

plastic tape drawing machine
1.The drawing machine , using material of polypropylene and high density polyethylene, through heating, extruding and drawing, makes tape that is then winded for the weaving of the circular loom.
2..Having been improved so many times, the machine can use 100% recycled PP and PE granules or powder to produce yarn.
3.The screw and cylinder are made of nitrided 38CrMoAlA alloy steel, the hardness of which can reach over HV 950. Helical gear reducer made of 20CrMnTi alloy is applied to the extruder as well.
4.The chain wheel adopts 45# medium carbon steel after being treated by high-frequency quench.
5.The driving rollers are electroplated with hard Cr and the self-control tension winding roller is adopted by the traction unit.
>> Main Technical Parameters:
Technical Paramters are subject to change without prior notice!
| Item | LF-700 | LF-1000 | LF-1200 | LF-1200 | LF-1800 | LF-2000 |
| Diameter of Screw(mm) | 110 | 120 | 120 | 135 | 135 | 140 |
| L/Dratio of screw | 20:1 | 22:1 | 23:1 | 24:1 | 24:1 | 24:1 |
| Rotational speed of screw(r/min) | 10-55 | 8-48 | 8-48 | 7-42 | 7-42 | 6-40 |
| Width of Die(mm) | 700 | 1000 | 1200 | 1600 | 1800 | 2000 |
| Number of oven | 2 | 2 | 2 | 2 | 2 | 2 |
| Motor power of extruder | 18.5/22 | 22/30 | 22/30 | 30/37 | 37/45 | 37/45 |
| Heating Power of extruder | 24 | 32 | 37 | 77 | 80 | 86 |
| Power of Driving Motor | 5.5 | 7.5 | 7.5 | 11 | 11 | 11 |
| Heating power of the Oven(kw) | 15 | 20 | 24 | 30 | 30 | 30 |
| Drawing Rate | 4-8 | 4-8 | 4-8 | 4-8 | 4-8 | 4-8 |
| Thickness of tape(mm) | 0.025 -0.08 | 0.025 -0.08 | 0.025 -0.08 | 0.03 -0.08 | 0.03 -0.08 | 0.03 -0.08 |
| Production capacity(Kg/h) | 40-80 | 60-120 | 70-140 | 90-180 | 100-200 | 110-220 |
| Drawing speed(M/min) | 20-150 | 20-150 | 20-150 | 20-150 | 20-150 | 20-150 |
| Installing dimensions(LxWxH)(mm) | 13300 x1350 x1260 | 14700 x1750 x1400 | 16200 x2050 x1450 | 16800 x2600 x1450 | 16800 x2950 x1450 | 20000 x3200 x1450 |
| Weight(kg) | 5500 | 7500 | 8500 | 10000 | 11000 | 11000 |
Highly skilled service engineers are available 24 hours a day
Shortest lead time.
Q: Are you a trading company or a factory?
A: we are A factory.
Q: how long is your delivery time?
A: it usually takes 30 days, or 15-20 days not to have stock.
Q: can we buy one for quality testing?
A: Yes,we are glad to accept A trial order for quality testing.
Q: what are your terms of payment?
A:Payment<=1000USD,100% in advance.Payment>=1000 USD , 30% T/T in advance,balance before shippment.
if you have another question,Please feel free to contact me.
