Quick Details
-
Brand Name:
-
SG
-
Dimension(L*W*H):
-
4.5*3.5*5 m
-
Weight:
-
3500 KG
-
Item name:
-
stone milling machine
-
Model:
-
3R2615
-
Material:
-
casting steel
-
Usage:
-
flour milling
-
Finished prduct size:
-
0.125-0.044mm
-
Feed size:
-
less than or equal to 20 mm
-
Motor Power:
-
18.5 KW
-
Application:
-
gypsum,talc,calcite,limestone,marble,feldspar,barite,dolomite,kaolin
-
Provide:
-
Free spare parts
-
After-sales Service Provided:
-
Field maintenance and repair service
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Capacity(t/h):
-
0.7-3 t
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SG
-
Dimension(L*W*H):
-
4.5*3.5*5 m
-
Weight:
-
3500 KG
-
Item name:
-
stone milling machine
-
Model:
-
3R2615
-
Material:
-
casting steel
-
Usage:
-
flour milling
-
Finished prduct size:
-
0.125-0.044mm
-
Feed size:
-
less than or equal to 20 mm
-
Motor Power:
-
18.5 KW
-
Application:
-
gypsum,talc,calcite,limestone,marble,feldspar,barite,dolomite,kaolin
-
Provide:
-
Free spare parts
-
After-sales Service Provided:
-
Field maintenance and repair service
Product Description

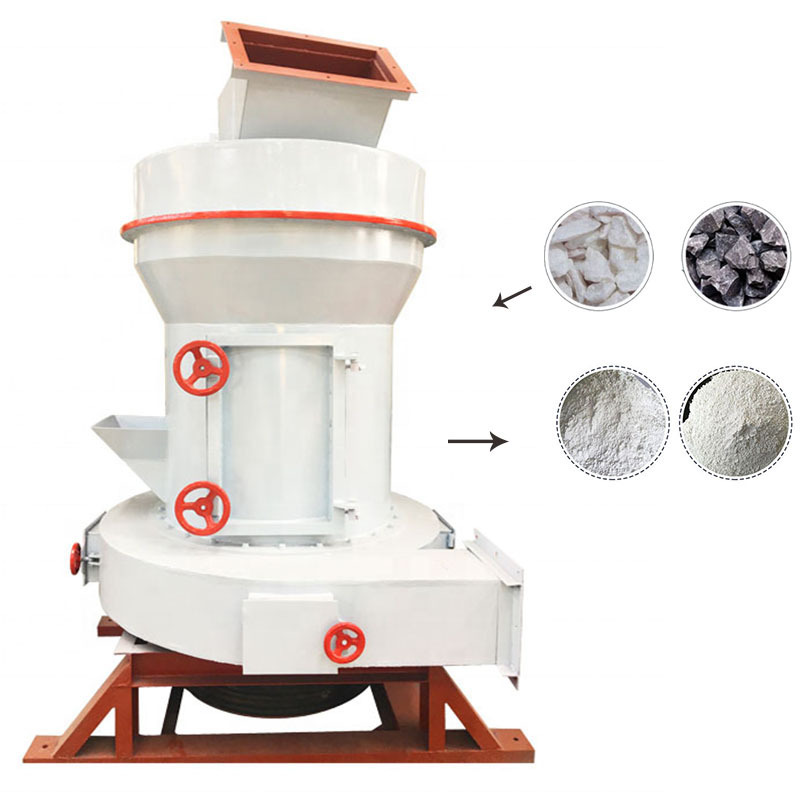

Raymond mill is widely used for non-flammable and non-explosive materials with Moh hardness below grade 9.3 and water content less than 6%. such as: Quartz, recrystallization, calcite, potassium feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, graphite, glass, titanium ore, copper ore, chrome ore, manganese ore, refractory materials, insulation materials, coal tar, coal powder, carbon black, clay, titanium dioxide, iron oxide. The final size ranges from 60 mesh to 325 mesh (0.044mm to 0.125mm), and some parts can be 1000 mesh (0.013mm).
Suitable material that can be grinding:
such as barite, calcite, zeolite,potassium feldspar, talc, marble, limestone, dolomite,fluorite and lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass and thermalinsulation material in mine, metallurgy, chemistry and building industry.
Work Principle
Raymond Mill's working principle is that the grinding roller is rolled tightly on the grinding ring under the action of centrifugal force. The shovel scoops the material to the middle of the grinding roller and the grinding ring. The material is broken into powder under the action of the grinding pressure, and then Under the action of the fan, the powdered material is blown through the analyzer, and the fineness-required material passes through the analyzer. The regrind chamber can no longer meet the required requirements and continue to be ground. The material of the analyzer enters the cyclone separator and is collected and collected. The exhaust uses industrial filter cloth to separate exhaust air into powder.
Raymond Mill's working principle is that the grinding roller is rolled tightly on the grinding ring under the action of centrifugal force. The shovel scoops the material to the middle of the grinding roller and the grinding ring. The material is broken into powder under the action of the grinding pressure, and then Under the action of the fan, the powdered material is blown through the analyzer, and the fineness-required material passes through the analyzer. The regrind chamber can no longer meet the required requirements and continue to be ground. The material of the analyzer enters the cyclone separator and is collected and collected. The exhaust uses industrial filter cloth to separate exhaust air into powder.
|
Product Name
|
4r3216 Raymond Grinding Mill
|
|
Material
|
Carbon steel
|
|
Feeding size
|
less than 25mm
|
|
Finished product size
|
60-325 mesh(0.125-0.044mm)
|
|
Capacity
|
2-8t/h
|
|
Diameter of ring
|
970mm
|
|
Diameter of roller
|
320mm
|
|
Height of roller
|
160mm
|
Raymond Mill's Complete Structure
Raymond Mill's complete structure is composed of main engine, analyzer (pulverizer), pipeline device, blower, finished cyclone separator, jaw crusher, bucket elevator, electromagnetic vibrating feeder, electronically controlled motor and other components. Raymond Mill's main machine consists of a frame, air inlet volute, blade,grinding roller, agrinding ring, cover and motor.
Raymond Mill's complete structure is composed of main engine, analyzer (pulverizer), pipeline device, blower, finished cyclone separator, jaw crusher, bucket elevator, electromagnetic vibrating feeder, electronically controlled motor and other components. Raymond Mill's main machine consists of a frame, air inlet volute, blade,grinding roller, agrinding ring, cover and motor.
Main Features
1. Raymond Mill's three-dimensional structure, small footprint, complete sets, from the block material to the finished powder independently into a production system.
2. The fineness of the finished powder is even and the screening rate is 99%. This is difficult for other milling equipment.
3. The main drive of the milling machine adopts a sealed gear box and pulleys, with stable transmission and reliable operation.
4. The important parts of Raymond Mill are made of high-quality steel. Wear-resistant parts are made of high-performance wear-resistant materials. The whole machine has high wear resistance and reliable operation.
5, the electrical system adopts centralized control, the milling workshop can basically realize unmanned operation, and convenient maintenance.
1. Raymond Mill's three-dimensional structure, small footprint, complete sets, from the block material to the finished powder independently into a production system.
2. The fineness of the finished powder is even and the screening rate is 99%. This is difficult for other milling equipment.
3. The main drive of the milling machine adopts a sealed gear box and pulleys, with stable transmission and reliable operation.
4. The important parts of Raymond Mill are made of high-quality steel. Wear-resistant parts are made of high-performance wear-resistant materials. The whole machine has high wear resistance and reliable operation.
5, the electrical system adopts centralized control, the milling workshop can basically realize unmanned operation, and convenient maintenance.
Technical Data
Our Company
Zhengzhou Shuguang Heavy Machinery Co.,Ltd,founded in 1993,is an integral system that produce R&D,production and sales.
We are located in 19th,Longjiang west road,Shangjie district,Zhengzhou city,Henan,China.
Our Company produce Raymond mill,micro powder mill,Rotary dryer,Shredder,Ball mill,Jaw crusher,Impact crusher,Hammer crusher,Cone crusher,Vibrating Screen,Vibrating Feeder,stone and sand production line etc. Our products are well known to the international market such as America,Italy,Chile,Sri Lanka,Australia,Peru And so on. We warmly welcome and expect strong support from more customers,We will serve and repay our society as always be more excellent products.
Our Company produce Raymond mill,micro powder mill,Rotary dryer,Shredder,Ball mill,Jaw crusher,Impact crusher,Hammer crusher,Cone crusher,Vibrating Screen,Vibrating Feeder,stone and sand production line etc. Our products are well known to the international market such as America,Italy,Chile,Sri Lanka,Australia,Peru And so on. We warmly welcome and expect strong support from more customers,We will serve and repay our society as always be more excellent products.
Our service
Pre-Sales Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support.
* View our Factory.
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
FAQ
Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.
Q: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Why choose Shuguang Heavy Machinery Co.,Ltd?
A: We are factory.
25-year’s experience in heavy machinery.Professional team offers technical support to customers.All our machines passed the CE certificate.
We have a professional after-sale service team to promptly and thoroughly solve your problems.
If you are looking for this machine,please contact us now!
