L&B Stainless Steel Food Grade Electric Steam Jacketed Kettle/other food processing machinery

L&B Stainless Steel Food Grade Electric Steam Jacketed Kettle/other food processing machinery

FOB Reference Price: Get Latest Price

≥1 Sets

US $2500

≥4 Sets

US $2300

≥10 Sets

US $2000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Machinery Function:: cooking and mixing

Material:: Stainless Steel 304/316

Application:: Food Industry

Function:: Multifunction

MOQ:: 1 Unit

Speed:: 0-2800rpm

Heating:: Electric Steam

Certification:: CE ISO

Voltage:: 220v/380v/customized

Advantage:: Customization Service

Keywords:: other food processing machinery

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: BLS

Machinery Capacity:: 50-1000L

Machinery Function:: cooking and mixing

Material:: Stainless Steel 304/316

Application:: Food Industry

Function:: Multifunction

MOQ:: 1 Unit

Speed:: 0-2800rpm

Heating:: Electric Steam

Certification:: CE ISO

Voltage:: 220v/380v/customized

Advantage:: Customization Service

Keywords:: other food processing machinery

Product Description

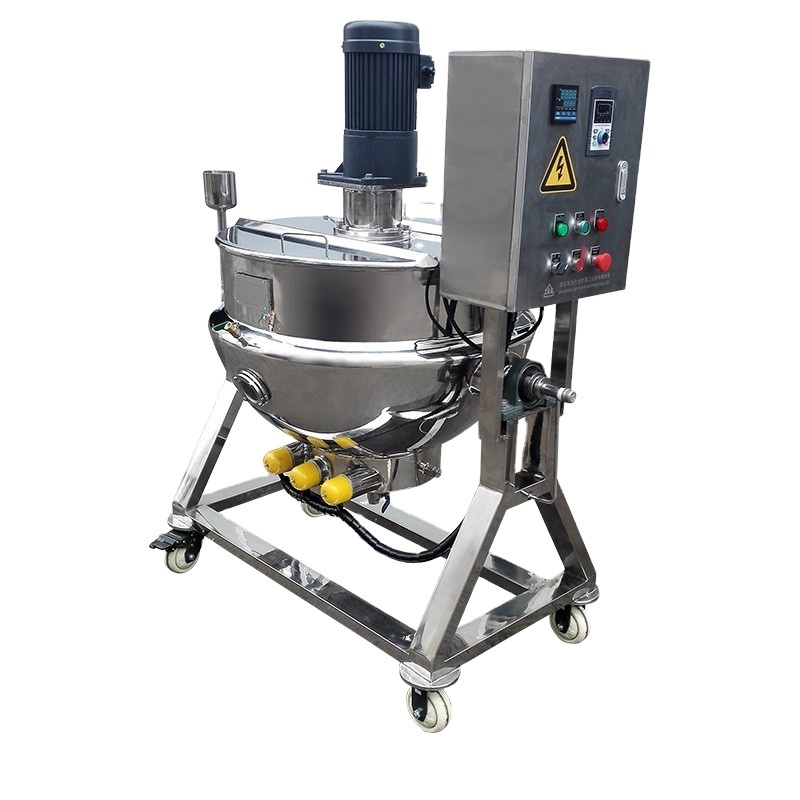

L&B Stainless Steel Food Grade Electric Steam Jacketed Kettle Mixer With Scrapper

Hot-selling jacketed kettle has the advantages of large heating area, high thermal efficiency, fast material
heating, uniform heating and easy control of heating temperature. Widely used in food processing and brewing, such as candy,cakes, beverages, juice, jam, candied fruit, dairy and canned food, wine making, pharmaceutical and daily chemical industrie. other food processing machinery.

Configuration and features:

*Cooking mixer machine food is composed of kettle, bracket, worm wheel and worm etc.

*The kettle can revolve with 180°.

*The equipment is used for open

concentration, mainly for decocting and concentration of liquids in industries of pharmaceuticalindustry, food industry, chemical industry and light industry etc.

*Contact area of the equipment with materials is made of stainless steel SUS304,which has perfect corrosion—proof performance, and
is highly endurable according to GMP requirements.

*Blender also can be added according customer requirements.

scraper mixer

inside the kettle equip scraper mixer to blend your products,it also can avoid the product stick into the kettle

stainless steel control cabinet to operate the kettle conveniently,it has on/ff switch,heating on/off,emergency stop,electric power supply light,speed converter display etc.

electric heating tube to heat your products

wheels can be installed or not according to customer's requirement ,wheels can move the whole kettle easily.

Oil level observation hole:

you can observe the oil level here,once the conduction oil reach this location,you can stop to add the oil into the jacket

oil cup which is used to add the conduction oil into the jacket

worm wheels to incline the kettle to discharge the finished products out

Technical Paramenters

model	heating area (m2)	amount of heat conduction oil (kg)	power and root number (KW*Z)	boiling time for reference (min)
JCG50	0.45	20	3*3	10-15
JCG100	0.58	30	4*3	10-15
JCG150	0.88	45	4*3	20-30
JCG200	1.13	55	5*3	20-30
JCG300	1.43	65	6*3	20-30
JCG400	1.75	75	8*3	20-30
JCG500	2.00	120	8*3	20-35
JCG600	2.3	160	9*3	20-35
JCG1000	3	230	12*3	20-35
