Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hairuibao
-
Voltage:
-
220V 380V 440V
-
Dimension(L*W*H):
-
4200*2200*2250mm
-
Weight:
-
13000 kg
-
Warranty:
-
1 Year
-
PLC Brand:
-
custom
-
Name:
-
semi-auto flat bed creasing and die cutting machine
-
Brand:
-
Hairuibao
-
Max.Paper Size:
-
1230*850mm
-
Min.Paper Size:
-
350*450mm
-
Max.Die-cutting Size:
-
1210*830mm
-
The minimum size in mouth:
-
8
-
Max.Die-cutting Pressure:
-
300n/c㎡
-
Die cutting precision:
-
±0.1
-
Max.die-cutting speed:
-
4500 sheets/h
-
Max.Feeding Pile Height:
-
1400mm(above thelevel)
Quick Details
-
Type:
-
Die-cutting Machine
-
Production Capacity:
-
150 m/min
-
Max. workable width:
-
1200mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hairuibao
-
Voltage:
-
220V 380V 440V
-
Dimension(L*W*H):
-
4200*2200*2250mm
-
Weight:
-
13000 kg
-
Warranty:
-
1 Year
-
PLC Brand:
-
custom
-
Name:
-
semi-auto flat bed creasing and die cutting machine
-
Brand:
-
Hairuibao
-
Max.Paper Size:
-
1230*850mm
-
Min.Paper Size:
-
350*450mm
-
Max.Die-cutting Size:
-
1210*830mm
-
The minimum size in mouth:
-
8
-
Max.Die-cutting Pressure:
-
300n/c㎡
-
Die cutting precision:
-
±0.1
-
Max.die-cutting speed:
-
4500 sheets/h
-
Max.Feeding Pile Height:
-
1400mm(above thelevel)

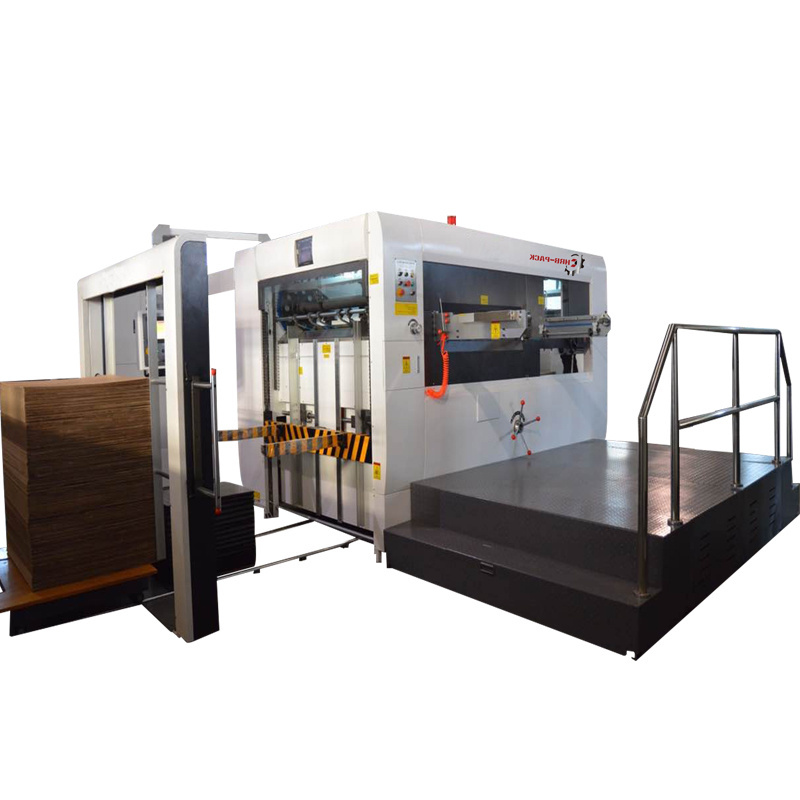

Semi-Auto Flat Die Cutting And Creasing Machine/Flatbed Semi-Automatic Pressed Flat Die-Cutting And Creasing Machine
| Model | MY-1200 | MY-1300 | MY-1500 | MY-1650 |
| Max.Paper Size | 1230×850mm | 1320×940mm | 1510×1120mm | 1670×1250mm |
| Min.Paper Size | 350×450mm | 400×500mm | 450×550mm | 500×550mm |
| Max.Die-cutting Size | 1210×830mm | 1300×920mm | 1490×1100mm | 1650×1200mm |
| The minimum size in mouth | 8 | 8 | 8 | 8 |
| Max.Die-cutting Pressure | 300n/cm2 | 300n/ cm2 | 300n/ cm2 | 300n/ cm2 |
| Carboard | 200-2000g/ m2 | 200-2000g/ m2 | 200-2000g/m2 | 200-2000g/ m2 |
| Corrugated paper | 8mm(max.thickness) | 8mm(max.thickness) | 8mm(max.thickness) | 8mm(max.thickness) |
| Die cutting precision | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Max.die-cutting speed | 4500 sheets/h | 4500 sheets/h | 4500 sheets/h | 4000 sheets/h |
| Max.Feeding Pile Height | 1400mm(above thelevel) | 1400mm(above thelevel) | 1400mm(above thelevel) | 1400mm(above thelevel) |
| Max.Collecting Pile Height | 1200mm(above thelevel) | 1250mm(above thelevel) | 1250mm(above thelevel) | 1300mm(above thelevel) |
| Total Power | 11KW | 13.5KW | 13.5KW | 20KW |
| Weight | 13T | 14.5T | 17.5T | 21T |
| Dimensions | 4200×2200×2250mm | 4200×2250×2250mm | 4200×2300×2250mm | 4200×2450×2250mm |
1. Who are we?
We are based in Hebei, China, start from 2009,sell to Central America(14.29%),Eastern Asia(14.29%),Mid East(14.29%),Africa(14.29%),Southeast Asia(14.29%),South Asia(14.29%),North America(5.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
corrugated cardboard production line,flexo printer slotter die cutter machine,flute laminator machine,folder gluer machine,corrugated cardboard line
4. Why should you buy from us not from other suppliers?
1. Hairuibao Carton Machinery Co.,ltd is a large manufacture for carton machinery in China.
2. Our Company specialized in doing carton machinery for more than 25 years.
3. Our quality is high and price is competitived.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Cash,Escrow;
Language Spoken:English,Chinese
