- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
1500 KG
-
Dimensions (L x W x H)mm:
-
2700x1550x1500
-
Structure weight:
-
1500KG
-
Min.Ground(mm):
-
350
-
Engine Model:
-
Changchai
-
Engine Type:
-
Vertical,4-Cylinder,Water Cooled and 4-stroke
-
Rated Power(kw)/Rated speed (r/min):
-
37/ 2200
-
Transmission Type:
-
8F+2R
Quick Details
-
Brand Name:
-
CPM
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
New Product 2022
-
Weight:
-
1500 KG
-
Dimensions (L x W x H)mm:
-
2700x1550x1500
-
Structure weight:
-
1500KG
-
Min.Ground(mm):
-
350
-
Engine Model:
-
Changchai
-
Engine Type:
-
Vertical,4-Cylinder,Water Cooled and 4-stroke
-
Rated Power(kw)/Rated speed (r/min):
-
37/ 2200
-
Transmission Type:
-
8F+2R
Product Description
Weifang CP Machinery C

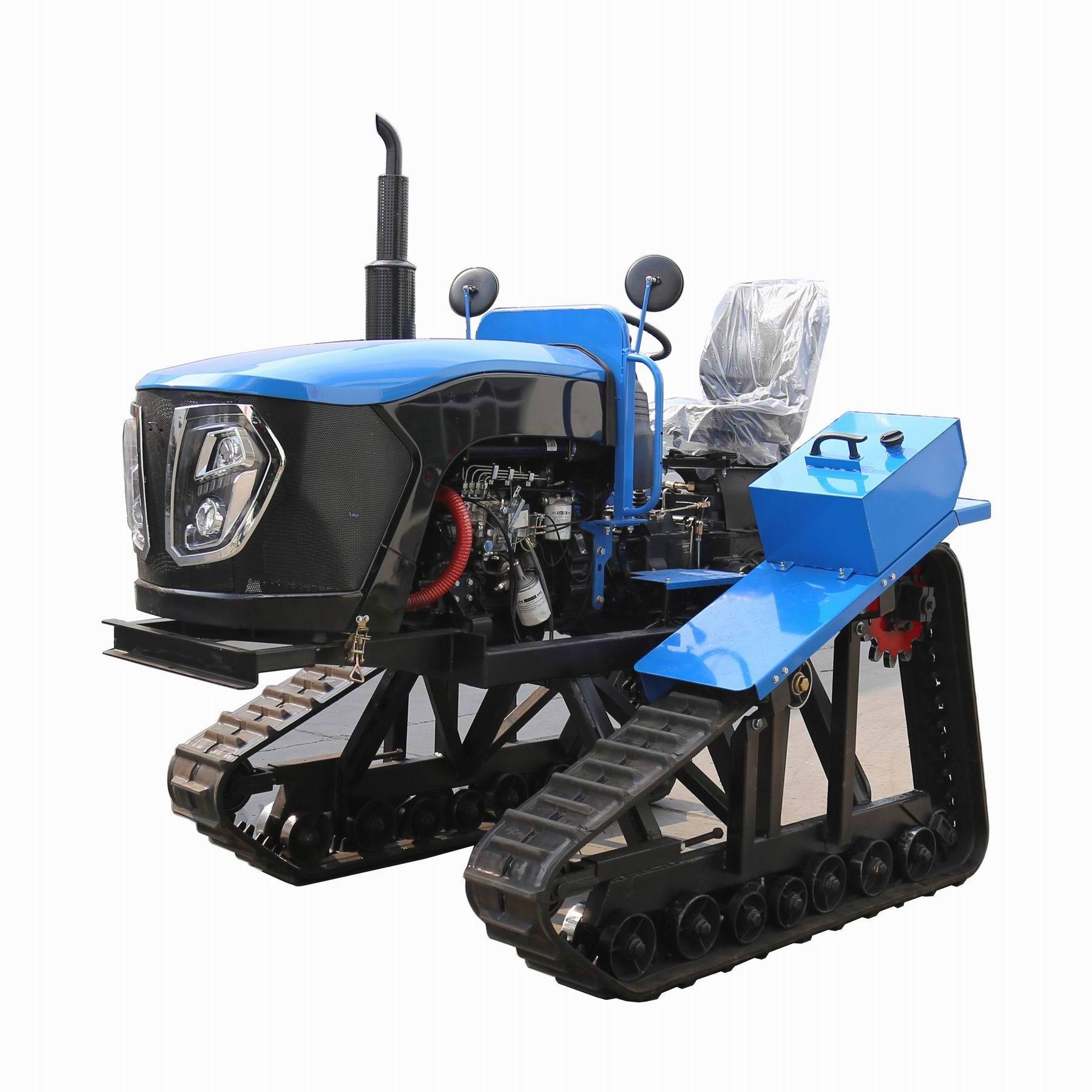

hinese new 100 hp multi garden farm rubber tracks crawler tractors
The rubber crawler tractor has the advantages of small grounding pressure, large adhesion and good passability in paddy field, so as to realize protective tillage in paddy field.At the same time, dryland work compacts the soil much less than wheel tow.Rubber crawler tractor adopts hydraulic control planetary differential mechanism, small turning radius (can be turned in situ), flexible turning turn, reduce the field turning transfer and other auxiliary hours, rotary tillage work efficiency is 10-20%, ploughing work more than 20%.The rubber crawler tractor adopts the whole frame structure, good rigidity and high clearance from the ground. It is especially suitable for the paddy field where the mud bottom is deeper and the wheeled tractor is difficult to operate.It is an ideal power machine for paddy field cultivation in rice producing areas.
Specification
|
item
|
value
|
|
Condition
|
New
|
|
Type
|
Crawler Tractor
|
|
wheel
|
2WD
|
|
Rated Power (HP)
|
50HP
|
|
Usage
|
crawler Tractor
|
|
Drive Type
|
Gear Drive
|
|
Certificate
|
CE/ISO
|
|
Brand Name
|
CPM
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Warranty
|
1.5 years
|
|
|
Free spare parts, Video technical support, Online support
|
|
Key Selling Points
|
High quality with cheap price
|
|
Marketing Type
|
New Product 2022
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1.5 years
|
|
Core Components
|
Gearbox, Gear
|
|
Engine Brand
|
CHANGCHAI
|
|
Engine Type
|
Vertical,4-Cylinder,Water Cooled and 4-stroke
|
|
Rated Power(kw)/Rated speed (r/min)
|
37/ 2200
|
|
Clutch
|
Dry,Dual-stage type
|
|
Lifting capacity(at point of 610mm)KN
|
＞12
|
|
Dimensions (L x W x H)mm
|
2700x1550x1500
|
|
Structure weight
|
1500KG
|
|
Min.Ground(mm)
|
350
|
|
Brakes
|
Wet disc brakes
|
|
Capacity of fuel tank(L)
|
40
|
|
PTO Speed(rpm)
|
540/720
|
|
Transmission Type
|
8F+2R gear
|
|
Tyre
|
Crawler
|
Packing & Delivery
Nude
packing
3 units in a 40' HQ container
