Quick Details
-
Application:
-
fish pond, Landfill
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUXIN
-
Model Number:
-
LUXIN018
-
Material:
-
HDPE LDPE LLDPE EPDM EVA
-
Color:
-
Black White Green Blue
-
Product Name:
-
HDPE Geomembrane Liner
-
Length:
-
50-200m
-
Thickness:
-
0.3mm-3.0mm
-
Width:
-
1m~8m
-
Keyword:
-
HDPE Geomembrane Waterproof
-
Density:
-
0.940g/cm3
-
Surface:
-
Double Smooth
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
fish pond, Landfill
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUXIN
-
Model Number:
-
LUXIN018
-
Material:
-
HDPE LDPE LLDPE EPDM EVA
-
Color:
-
Black White Green Blue
-
Product Name:
-
HDPE Geomembrane Liner
-
Length:
-
50-200m
-
Thickness:
-
0.3mm-3.0mm
-
Width:
-
1m~8m
-
Keyword:
-
HDPE Geomembrane Waterproof
-
Density:
-
0.940g/cm3
-
Surface:
-
Double Smooth
Product Description
geomembranes /pond liner/ hdpe geomembrane/ pond liner fish farm/ pond liners agricultural/ pond liners /pond liner for sale /hdpe pond liner/hdpe geomembrane price/geomembrane hdpe/hdpe geomembrane 1mm/geomembrane hdpe 1.5mm/pond liner hdpe/fish pond liner/pond liner price
HDPE Geomembrane Pond Underlayment is the kind of black smooth geomembrane HDPE liner which is the ideal geotechnical material for water containment in aquaculture project.HDPE Geomembrane Pond Underlayment is made by high density polyethylene with carbon black or other different colors with adding different color master batch, such as green, blue, transparent, etc. Our black high density HDPE Geomembrane Pond Underlayment features anti-seepage, excellent resistance to UV radiation and is suitable for exposed conditions which is widely used for solid waste containment, mining and water containment applications.
Specification
|
Thickness
|
0.75
|
1.00
|
1.25
|
1.50
|
2.00
|
2.50
|
3.00
|
|
Density g/m2
|
≥0.94
|
≥0.94
|
≥0.94
|
≥0.94
|
≥0.94
|
≥0.94
|
≥0.94
|
|
Tensile Yield Strength (N/mm)
|
≥11
|
≥15
|
≥18
|
≥22
|
≥29
|
≥37
|
≥44
|
|
Tensile Breaking Strength(N/mm)
|
≥20
|
≥27
|
≥33
|
≥40
|
≥53
|
≥67
|
≥80
|
|
Bongation at yield(%)
|
≥12
|
≥12
|
≥12
|
≥12
|
≥12
|
≥12
|
≥12
|
|
Elongation at break(%)
|
≥700
|
≥700
|
≥700
|
≥700
|
≥700
|
≥700
|
≥700
|
|
Tear resistance(N)
|
≥93
|
≥125
|
≥160
|
≥190
|
≥250
|
≥315
|
≥375
|
|
Puncture strength(N)
|
≥240
|
≥320
|
≥400
|
≥480
|
≥640
|
≥800
|
≥960
|
|
Tensile load stress cracking
|
≥300
|
≥300
|
≥300
|
≥300
|
≥300
|
≥300
|
≥300
|
Application
Environmental Protection:
Landfills, sewage treatment plants, mining, power plant regulating pools, industrial and hospital solid
wastes, etc.
wastes, etc.
Water conservancy:
Such as seepage control, leakage stoppage, reinforcement, seepage control of water channels,vertical core wall, slope protection,etc
Such as seepage control, leakage stoppage, reinforcement, seepage control of water channels,vertical core wall, slope protection,etc
Aquaculture:
Intensive, factory aquaculture pond, fish pond, shrimp pond lining, sea cucumber circle slope protection,etc
Intensive, factory aquaculture pond, fish pond, shrimp pond lining, sea cucumber circle slope protection,etc

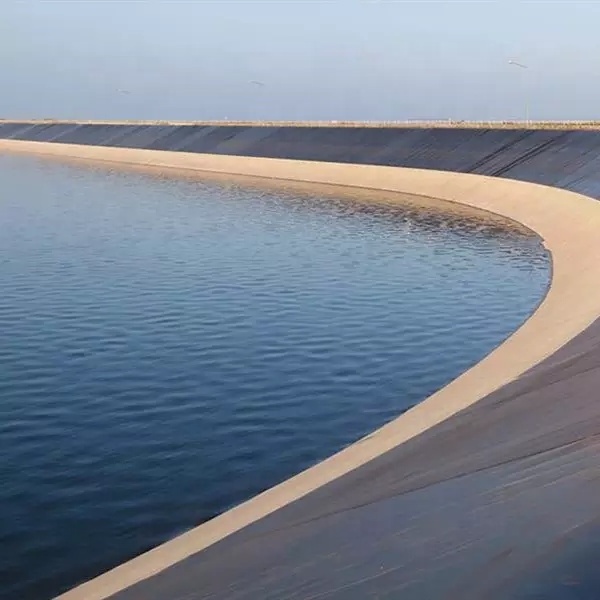

Engineering Case
Packing & Delivery
Special PP double woven bag for export
