Vertical adjustable attenuator SJ-B 0-20dB 75 Ohms 20DB 75ohm SJ-B CATV High frequency attenuator NEW ORIGINAL

Vertical adjustable attenuator SJ-B 0-20dB 75 Ohms 20DB 75ohm SJ-B CATV High frequency attenuator NEW ORIGINAL

FOB Reference Price: Get Latest Price

≥100 Pieces

US $0.1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Impedance:: 75 Ohms

Knob Color:: Blue

Operating Frequency:: 0~1000MHz

Adjustable Range:: 0~20dB

Insertion Loss:: ≤0.5dB

Quick Details

Brand Name:: YOINNOVATI

Type:: attenuator

Model Number:: SJ-B 0-20dB

Place of Origin:: Guangdong, China

Impedance:: 75 Ohms

Knob Color:: Blue

Operating Frequency:: 0~1000MHz

Adjustable Range:: 0~20dB

Insertion Loss:: ≤0.5dB

Product Description

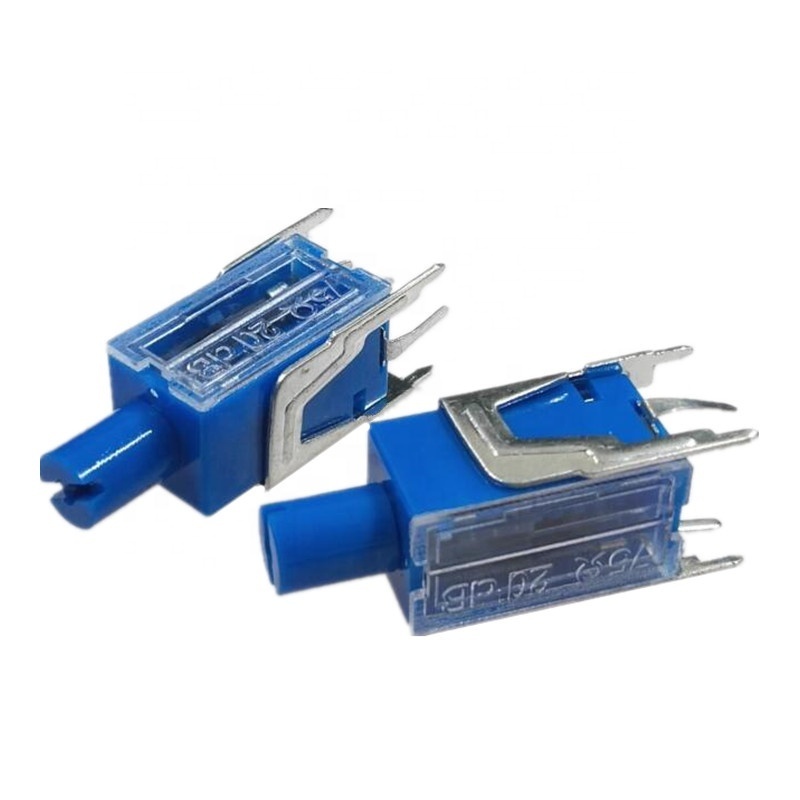

SJ-B CATV Variable Attenuator

CATV Attenuator DT-SJB-V8B/R, SJ Series Variable Attenuator,SJ-B Vertical Type,Adjustable Attenuation Range:0~20dB,Knob Length:8mm,Knob Color: Blue or Red is Optional,impedance:75Ohm,Operating Frequency:0~1000MHz,insertion Loss:≤0.5dB,Frequency Response:5~300MHz: ≤0.3dB,300~1000MHz:≤0.5dB,Reflection Loss:5~300MHz: ≥20dB,300~1000MHz:≥15dB.

Item	Performance
Product Name	SJ-B Variable Attenuator-Vertical Type-2MM-(DT-SJB-V8B/R)
DAYTAI Model	DT-SJB-V8B	DT-SJB-V8R
DAYTAI Model	Knob Color: Blue	Knob Color: Red
Impedance	75 Ohms
Operating Frequency	0~1000MHz
Adjustable Range	0~20dB
Knob Length	8mm
Insertion Loss	≤0.5dB
Frequency Response	5~300MHz: ≤0.3dB, 300~1000MHz:≤0.5dB
Reflection Loss	5~300MHz: ≥20dB,300~1000MHz:≥15dB
Reflection Loss	<300 MHz	<18
	<550 MHz	<16
	<860 MHz	<14
Maximal attenuation	Test at full C.C.W.position	20 dB ± 2 dB
Maximal attenuation	Test at full C.C.W.position	10 dB ± 2 dB
Minimal attenuation	Test at full C.W.position	<0.5 dB
Total rotation turns	Form full C.W position the shaft total rotation turns	4.5 ± 0.5 turns
Rotation torque	Rotation speed 60°/1sec.	50gfcm MAX
Axis stopper strength	Test at full C.W. position	800gfcm MIN
Terminal strength	After on application of 500gfcm for 10± 5 sec with terminals.	No evidence of poor contact between resistance element and terminals or any physical damage
Resistance to soldering heart.	Less tan 300°C and quicker then 3 sec.	No evidence of poor contact between resistance element and terminals or any physical damage
Reliability Test
Rotation life	More than 200 times of back and forth
