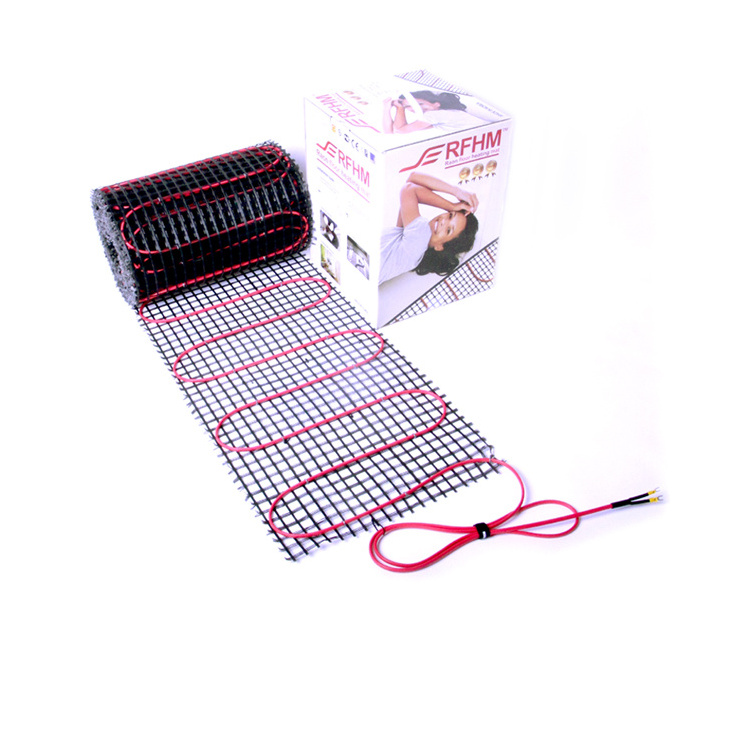

[Raon System] Spydereco electric heating element floor heating cable mat RFHM-SP-25W

General Information

H S Code	8516.80.0000
Order Unit	1 roll
Minimum Order Quantity	30~50rolls (Heat Tracing & Snow Melting Heating Cable / Mat : 10rolls)
Daily Producing Capacity	500rolls
Certificates	CE, Russian CU(EAC), KC, Q Mark
Warranty Period	10 Years After Purchasing
Payment Methods	T/T, Irrevocable L/C, Western Union, Moneygram, Paypal
Basic Price Terms	F.O.B. Busan Port / Incheon Airport, Korea
Shipment Period	Shipment will be completed within 10 days  After Balance Payment
Departing Port	Busan Port or Incheon Port (Ocean Freight ) Incheon Airport (Air Freight)

Introdution of Raon System Corporation

No.1 Electric Heating System Manufacturer

The No.1 Manufacturer of highly efficient heating system!

Raon System Corporation!

Our company - Raon System Corporation - was established in 1998 as a specialized manufacturer of electric heating products.

Our company - Raon System Corporation – is the leading company which has the best technique based on the accumulated long production experience and continuous R & D.

In addition, we developed the cutting-edge production facilities. On the basis of such the latest facilities, we are manufacturing almost full range of electric heating cables, such as ; floor heating cable, floor heating mat, snow-melting cable and mat, deicing cable, pipe tracing cable, green house cables, etc

We registered 7 patents and 4 utility models. As well as we acquired various international certificates like ISO9001, CE, Russian U, Korea Electric Safety KC and Q mark(quality certificat

Our heating cable is easy and quick to install. As well as it realizes rapid and even heating effect and is the eco-friendly product without electromagnetic waves. Moreover, we always uses highest quality raw materials for production, so it has long product span and safe.

Furthermore, we developed constant-temperature heating cable “Spydereco” which is possible to compose the circuit through cutting following the installation space shape for the first in the world. It overcomes the weakness of usual constant-temperature heating cable which is not possible to cut.

Actually, our heating cables are exporting to more than 20 countries including China, Japan, UK, Canada, Switzerland, Mexico, Russia, Uzbekistan and Kazakhstan etc…

Raon means “fun” in pure Korean word, which expresses our desire to make the world where everyone lives a pleasant life.

We will continuously strive to lead the development of safer and more convenient products with differentiated technology.

Are you interested in electric heating cables?

Please consult with our Raon System Corporation.

Raon System Corporation will become the most stable and reliable business partner to you.

Specifications of Raon System Corporation Heating Cables

Usage	Floor Heating				Snow-Melting		Freezing Protection for Pipe
Model No.	RPHC-30W	RFHC-18W	RFHM-D3.5-15W	RFHC-SP-25W / RFHC-SP-C25W	RSMC-C	RSMC-A	RPHC-15W	RPHC-30W	RPHC-50W
Conductors Design	Double Conductors	Triple twisted Conductors	Triple twisted Conductors	Copper Bus Wire : 1.25mm 2 x 2	Single Multi Conductor
Using Voltage	220V (Vmax: 240V)				380V or 220V		220V (Vmax: 240V)
Normal Power Output	30W/m (at 10℃ in Air)	18W/m (at 10℃ in Air)	15W/m (at 10℃ in Air)	25W/m (at 10℃ in Air)	35W/m (at 10℃ in Air)		15W/m (at 10℃ in Air)	30W/m (at 10℃ in Air)	50W/m (at 10℃ in Air)
Max. Maintenance Temperature	95℃ (at 20℃ in Air)	65℃ (at 20℃ in Air)	65℃ (at 20℃ in Air)	60~70℃ (at 20℃ in Air)	95℃ (at 20℃ in Air)		50℃ (at 20℃ in Air)	85℃ (at 20℃ in Air)	120℃ (at 20℃ in Air)
Max. Exposure Temperature	125℃	120℃	105℃		120℃		150℃	150℃	150℃
Diameter	7mm	6mm	3.5mm	8.5mm x 6.5mm	7mm		4mm x 7mm	5mm x 9mm	7mm x 13mm
Applicable Standards	IEC 800-30
Certificates	CE, Q, CU(EAC), KC
Cable Using Length							Min: 3M / Max: 100M

Features of Raon System Corporation Heating Cable

Heating System which is free of electromagnetic waves

Heating Cables of Raon Sysem Corporation are an eco-friendly products which are harmless to human body through devising electromagnetic wave shielding structure.

Long Life Span( More Than 30 Years)

Heating Cables of Raon Sysem Corporation use insulation jacket of superior materials like PTFE fluorine resin and have been drastically enforced insulation and physical strength of products through using 2~3 outer jackets.

Heating Cables of Raon Sysem Corporation enlarge the life span by increasing the length of heating element per meter to 2 ~ 3 times and minimizing the overheating stress.

High Efficiency Heating System

Heating Cables of Raon Sysem Corporation are possible to heat up quickly by electric energy. Heating Cables of Raon Sysem Corporation are high efficiency energy products which are possible to preserve heat in mortar layer

Radiant Heating System

Heating system which is possible to heat up the indoor air when floor is sufficiently heated

Healthy Heating System

Heating Cables of Raon Sysem Corporation materialize the healthy heating system without noise, combustion fragrance or dust.

Supplying of Safety (Snow-Melting)

Snow-Melting Heating Cables of Raon Sysem Corporation help safe driving and walking in winter.

Moreover it doesn’t cause damage of buildings by chemicals of snow removal.

Flexible System (Snow-Melting)

Snow-Melting Heating Cables of Raon Sysem Corporation are suitable for installation without any restrictions following surface covering materials.

Simple Installation ( Spydereco )

Spydereco Heating Cables of Raon Sysem Corporation are simple to install and is possible to cut in accordance with installation area because of its parallel circuit structure.

OEM product Manufacturing

We are able to produce OEM products and its minimum order quantity is 5,000 meters per order.

Possible to print the Buyers Brand.

Possible to adjust electricity consumption following the usage

Possible to make heating cable for special electric voltage (AC 380voltage ~ 450voltage) and for D.C. (12 voltage, 24voltage and 48voltage), etc.
