Quick Details
-
Warranty:
-
1 year
-
Model:
-
YZ50-150H
-
Max Drilling Depth:
-
210m
-
Max Drilling Diameter:
-
300mm
-
Total Power:
-
25Hp
-
Drilling Angle:
-
0°- 90 °
-
Rotation Speed:
-
0-150r/min
-
Max Torque:
-
700Nm
-
Max Lifting Force:
-
100KN
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XDEM
-
Weight:
-
750KG
-
Warranty:
-
1 year
-
Model:
-
YZ50-150H
-
Max Drilling Depth:
-
210m
-
Max Drilling Diameter:
-
300mm
-
Total Power:
-
25Hp
-
Drilling Angle:
-
0°- 90 °
-
Rotation Speed:
-
0-150r/min
-
Max Torque:
-
700Nm
-
Max Lifting Force:
-
100KN

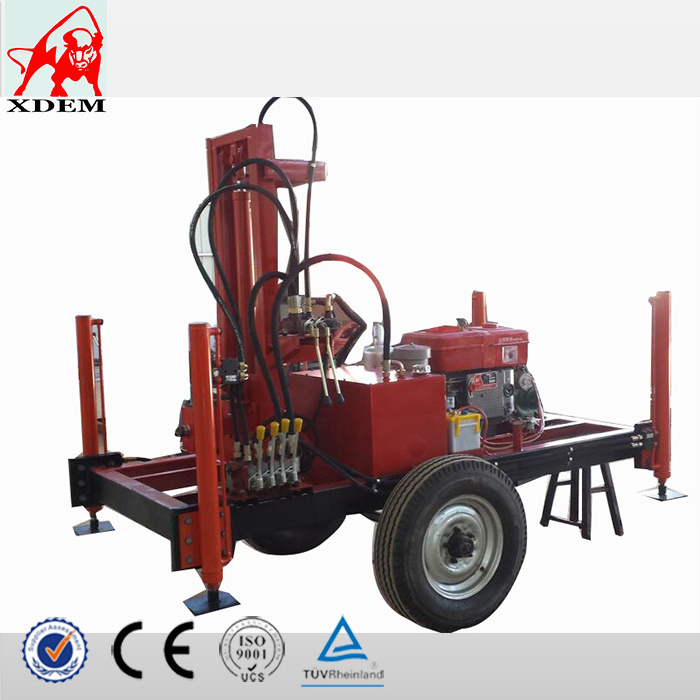

XDEM YZ50-150H full hydraulic drilling rig/portable digging machines/borehole drilling machine
This water well rig is suitable for drill rig is a portable hydraulic drive and great torque drill rig with water pump, mainly used in small water well, core drilling, exploration, road and building prospecting, etc .
YZ50-150H Features:
1. Telescopic drill tower;
2. Double hydaraulic rod lifting and lowering systems with strong power, lifting power up to 10ton.
3. Hydraulic chassis with wheels can be equipped;
4. Can drill all kinds of land condition from soft to hard.
Main Diameter of the water well rig:
|
Working Way |
Hydraulic |
|
Power Source |
Diesel Powered |
|
Total Power |
25Hp |
|
Max Drilling Depth |
210m |
|
Max Drilling Diameter |
300mm |
|
Drilling Angle |
0°- 90 ° |
|
Rotation Speed |
0-150r/min (Continuously Variable Transmission) |
|
Max Torque |
700Nm |
|
Max Lifting Force |
100KN |
|
Machine Height |
3.2 M (working state) 2.2M ( transportation state ) |
|
Weight |
800 Kg |
|
Dimension |
3000 x 1300 x 2200 MM |
Options:
Wheels & Manual Legs:
Chassis with hydraulic legs:
Crawler with controls:
Matching mud pumps:
Drilling pipes and tools:
