Quick Details
-
Place of Origin:
-
Zhuzhou
-
Brand Name:
-
Cowee
-
HRC:
-
HRC45/55/60/65
-
Flute:
-
4Flutes
-
Customized:
-
Non-Standard sizes Customized
-
suitable for:
-
Carbon steel, high speed steel, stainess steel, requeched steel
-
Precision:
-
High Precision and High Hardness
-
Materials:
-
Tungsten Carbide
-
Diameter:
-
1-20mm
-
Suitable for:
-
original steel, cast iron, Aluminum, copper, graphite, plastics,
-
Keywords:
-
carbide endmill/ carbide flat endmill/ carbide milling cutter
Quick Details
-
Material:
-
Carbide, Tungsten
-
Coating:
-
AlTiN, TiAIN
-
Warranty:
-
6 month
-
Place of Origin:
-
Zhuzhou
-
Brand Name:
-
Cowee
-
HRC:
-
HRC45/55/60/65
-
Flute:
-
4Flutes
-
Customized:
-
Non-Standard sizes Customized
-
suitable for:
-
Carbon steel, high speed steel, stainess steel, requeched steel
-
Precision:
-
High Precision and High Hardness
-
Materials:
-
Tungsten Carbide
-
Diameter:
-
1-20mm
-
Suitable for:
-
original steel, cast iron, Aluminum, copper, graphite, plastics,
-
Keywords:
-
carbide endmill/ carbide flat endmill/ carbide milling cutter
Product Description
|
Product Name
|

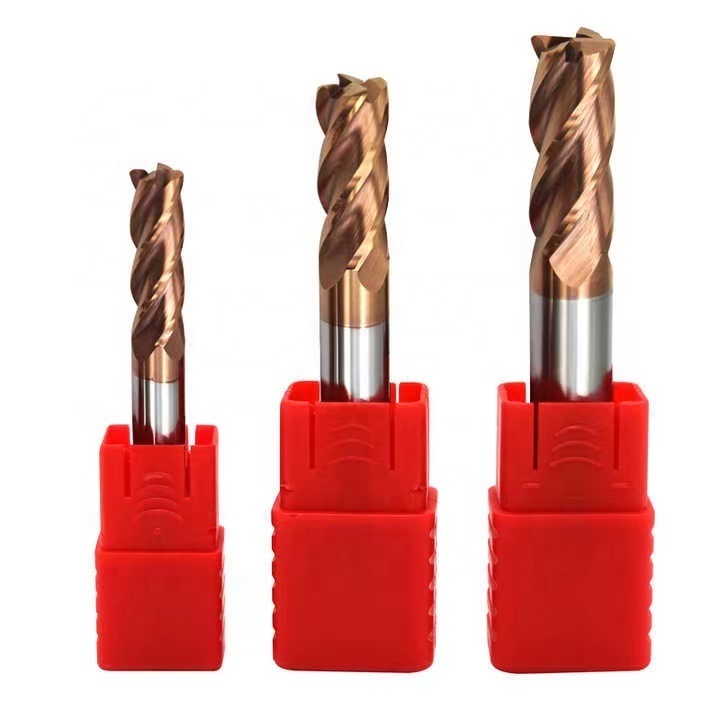

Solid Carbide Endmill CNC Cutter Tool For Metal Milling Router Bits Flat End Mill HRC 45/55/60/65
|
|
|
|
|||
|
Grain Sizes
|
0.4-0.6μm
|
|
|
|
|||
|
Co
|
10%, 12%
|
|
|
|
|||
|
TRS
|
>3600 N/mm2
|
|
|
|
|||
|
Hardness
|
HRA 91.8-92.5
|
|
|
|
|||
|
Work piece
|
HRC45-50 HRC55-60 HRC65 HRC68
|
|
|
|
|||
|
Helix angle
|
30°-45 °
|
|
|
|
|||
|
Diameter of cutting edge
|
0.2-0.9 mm; 1-20 mm
|
|
|
|
|||
|
Diameter of rods
|
4-20 mm
|
|
|
|
|||
|
Length
|
50-100mm
|
|
|
|
|||
|
Cutting Form
|
Flat, Square, Ball Nose, Corner Radius, Taper Flute.etc
|
|
|
|
|||
|
Flutes No
|
1-7 Flutes
|
|
|
|
|||
|
HRC45
|
HRC55
|
HRC60
|
HRC65
|
|
Grain Size:0.6um
Co:10 %
Flexural strength:3350N/mm2
|
Grain Size:0.6um
Co:10 %
Flexural strength:4000N/mm2
|
Grain Size:0.5um
Co:12 %
Flexural strength:4300N/mm2
|
Grain Size:0.4um
Co:12.5 %
Flexural strength:4300N/mm2
|
Size Information
Coating choice : AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut : Original steel, cast iron, Aluminum, copper, graphite, plastics, Titanium, alloy, harden steel, stainless steel, HSS etc.
|
Code No.
|
Diamter
( D)
|
Cutting length
( L )
|
Total length
( L )
|
Shank
( D)
|
Flutes
( Z )
|
|
4GW1-01003050
|
1
|
3
|
50
|
4
|
4
|
|
4GW1-01504050
|
1.5
|
4
|
50
|
4
|
4
|
|
4GW1-02050500
|
2
|
5
|
50
|
4
|
4
|
|
4GW1-02507050
|
2.5
|
7
|
50
|
4
|
4
|
|
4GW1-03008050
|
3
|
8
|
50
|
4
|
4
|
|
4GW1-04010050
|
4
|
10
|
50
|
4
|
4
|
|
4GW1-04015075
|
4
|
15
|
75
|
4
|
4
|
|
4GW1-04020100
|
4
|
20
|
100
|
4
|
4
|
|
4GW1-05013050
|
5
|
13
|
50
|
6
|
4
|
|
4GW1-06015050
|
6
|
15
|
50
|
6
|
4
|
|
4GW1-06020075
|
6
|
20
|
75
|
6
|
4
|
|
4GW1-06030100
|
6
|
30
|
100
|
6
|
4
|
|
4GW1-06020060
|
8
|
20
|
60
|
8
|
4
|
|
4GW1-08025075
|
8
|
25
|
75
|
8
|
4
|
|
4GW1-08035100
|
8
|
35
|
100
|
8
|
4
|
|
4GW1-010025075
|
10
|
25
|
75
|
10
|
4
|
|
4GW1-010040100
|
10
|
40
|
100
|
10
|
4
|
|
4GW1-012030075
|
12
|
30
|
75
|
12
|
4
|
|
4GW1-012040100
|
12
|
40
|
100
|
12
|
4
|
|
4GW1-014030080
|
14
|
30
|
80
|
14
|
4
|
|
4GW1-014100100
|
14
|
40
|
100
|
14
|
4
|
|
4GW1-016040100
|
16
|
40
|
100
|
16
|
4
|
|
4GW1-018040100
|
18
|
40
|
100
|
18
|
4
|
|
4GW1-020040100
|
20
|
40
|
100
|
20
|
4
|
|
4GW1-06040150
|
6
|
40
|
150
|
6
|
4
|
|
4GW1-08050150
|
8
|
50
|
150
|
8
|
4
|
|
4GW1-010050150
|
10
|
50
|
150
|
10
|
4
|
|
4GW1-012050150
|
12
|
50
|
150
|
12
|
4
|
|
4GW1-014060150
|
14
|
60
|
150
|
14
|
4
|
|
4GW1-016060150
|
16
|
60
|
150
|
16
|
4
|
|
4GW1-018060150
|
18
|
60
|
150
|
18
|
4
|
|
4GW1-020060150
|
20
|
60
|
150
|
20
|
4
|
Recommending Styles
Company Introduction
The company has a wide range of inspection equipment’s to fulfil products quality inspection, using ERP system for ordering processing, tracking and delivery.
The company mission and vision are to help customer solve the business needs by providing One-Stop Procurement peace of mind solution with various tungsten carbide material and carbide cutting tools for metalworking and woodworking to all customers all over the world.
our main products:
Metal cutting tools: carbide cutting insert, carbide end mill carbide drill carbide taps carbide reamers carbide saw blade
Wood working tool: wood cutting insert carbide drill bit saw blade and planer reversible cutting insert carbide saw tips
Solid carbide rod for metal & wood
Solid carbide rod for metal & wood
Advertising working tools
Tungsten carbide preform tools like strips plate block
Our Service & Strength
1. With Competitive price & Quality is stability
2. OEM & ODM Service is welcomed
3.Customized tools offered
4.Reply is timely
5. Fast delivery and high quality
6.Good after-sale service
Delivery & Packing
FAQ
A: Generally, we pack our goods in plastic tube then in carton, suitable for shipping container.
Q2. What is your terms of payment?
A: We are accept the T/T, Western Union and Paypal for payment.
Q3. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving payment. The specific delivery time depends on the items and the quantity of your order.
A: Generally, it will take 10 to 15 days after receiving payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: if the sample if making by drawings, customers need to be paid the costs for the sample and freight.
Q5.
Do you test all your goods before delivery?
A: Yes,we are 100% strictly tested the goods before shipments
.
6.
How do you make our business long-term and good relationship?
A: 1.We are kept the excellent quality & competitive price to ensure our customers' benefit；
2: We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
3. Fast delivery time.
