Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
95POWER
-
Power supply method:
-
DC4.5-5.5V,POE44~57V
-
Average current:
-
200mA@5V
-
Working temperature:
-
-20℃~70℃
-
Physical interface:
-
2 network ports and 1 DC power interface
-
Wifi protocol:
-
IEEE802.11b/g/n
-
Wireless security:
-
WPA/WPA2, WEP,TKIP,and AES
-
Bluetooth protocol:
-
Bluetooth 4.2/5.0
-
Transmission rate:
-
1Mbps/2Mbps
-
Wireless safety:
-
AESHWEncryption
-
Transmitting power:
-
-20~+8dBm
Quick Details
-
Chipset:
-
nRF52832 nRF52840
-
Application:
-
Positioning and Navigation
-
Model Number:
-
VDB3601
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
95POWER
-
Power supply method:
-
DC4.5-5.5V,POE44~57V
-
Average current:
-
200mA@5V
-
Working temperature:
-
-20℃~70℃
-
Physical interface:
-
2 network ports and 1 DC power interface
-
Wifi protocol:
-
IEEE802.11b/g/n
-
Wireless security:
-
WPA/WPA2, WEP,TKIP,and AES
-
Bluetooth protocol:
-
Bluetooth 4.2/5.0
-
Transmission rate:
-
1Mbps/2Mbps
-
Wireless safety:
-
AESHWEncryption
-
Transmitting power:
-
-20~+8dBm
Product Description
The Bluetooth IoT gateway VDB3601 uses nRF52832/ nRF52840 chips.VDB3601 is a Bluetooth gateway that supports 485 communication.The communication between WiFi and Bluetooth is through a serial port. It can be flexibly applied to various scenarios. Forexample, you can remotely control the BLE device, receive data from the BLE device, and send it to the background server. In addition, the VDB3601 supports POE switch power supply and 5V adapter power supply for convenience.
In addition, the TF card is reserved inside the gateway, which is convenient to support the storage function of network
disconnection. Reserve dual Bluetooth to scan up to 19 + 19 Bluetooth devices simultaneously.
VDB3601 Compatible with RS485 interface, can expand to connect 10 slave gateways, reducethecabling cost.(Custom required)

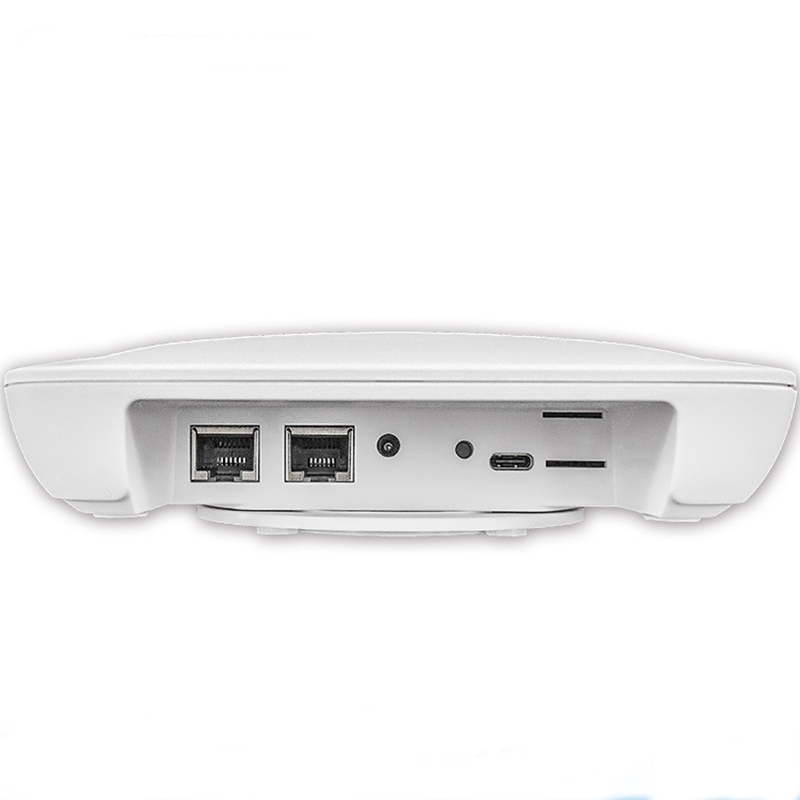

The VDB3601 uses a dual-network port design and can be cascaded to multiple devices. POEhashighreliability and protects the network port against lightning surges up to 4kV in common mode and 2kV in differential mode . The 4G/Cat.1 module is compatible with the gateway, which facilitates the special scenario in which network cables cannot be distributed.
In addition, the TF card is reserved inside the gateway, which is convenient to support the storage function of network
disconnection. Reserve dual Bluetooth to scan up to 19 + 19 Bluetooth devices simultaneously.
VDB3601 Compatible with RS485 interface, can expand to connect 10 slave gateways, reducethecabling cost.(Custom required)
Application
1、The Bluetooth gateway connects to the BLE device, collects data from the Bluetooth device and uploads it to the server.
1、The Bluetooth gateway connects to the BLE device, collects data from the Bluetooth device and uploads it to the server.
2、The Bluetooth gateway connects Bluetooth devices to transmit data in both uplink and downlink directions. Such as connecting
Bluetooth smart door locks, remote switch locks, etc.
Bluetooth smart door locks, remote switch locks, etc.
Specification
|
item
|
value
|
|
Size
|
150x47mm(φxH)
|
|
Power supply method
|
DC4.5-5.5V、POE44~57V
|
|
Average current
|
200mA@5V (Single host)
|
|
Working temperature
|
-20℃~70℃
|
|
Wifi protocol
|
IEEE802.11b/g/n
|
|
Bluetooth protocol
|
Bluetooth®4.2/5.0
|
|
Transmission rate
|
1Mbps/2Mbps
|
|
Wireless safety
|
AESHWEncryption
|
|
Transmitting power
|
-20~+8dBm
|
