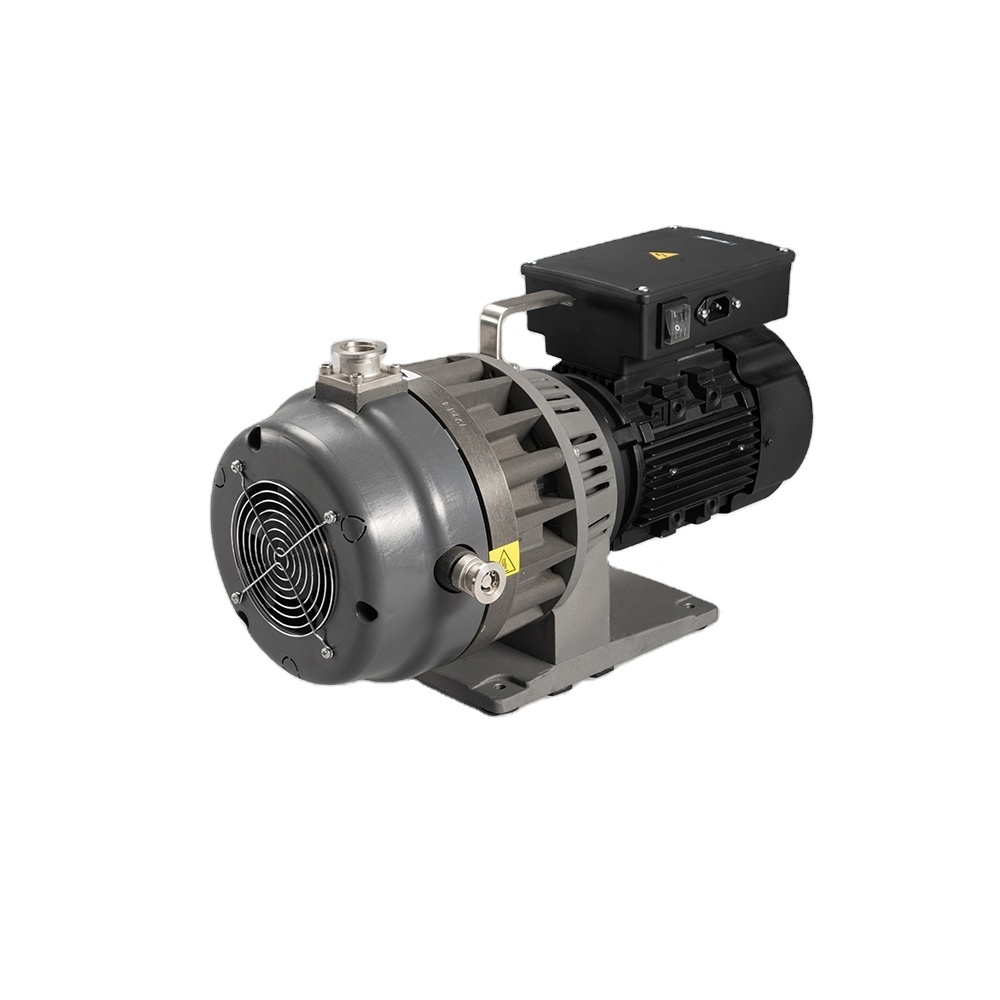

9.4 m3/h, 5.7 cfm pumping speed GEOWELL dry scroll pump GWSPS150 combined with lower ultimate pressures and lower noise level

9.4 m3/h, 5.7 cfm pumping speed GEOWELL dry scroll pump GWSPS150 combined with lower ultimate pressures and lower noise level

FOB Reference Price: Get Latest Price

≥1 Sets

US $1940

≥10 Sets

US $1250

≥100 Sets

US $1050

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 year

Brand Name:: GEOWELL

Model Number:: GWSPS150

Place of Origin:: Liaoning, China

Structure:: Scroll Pump

Outlet Size:: KF16

Power:: 0.55kw

motor:: 1 or 3 phase

Certification:: CE, EAC, ISO9001 certificated

Feature:: No oil, low noise, maintenance free,provide clean vacuum

Mechanical Seal:: Clearance sealed

Motor:: 1/3 phase,50-60Hz,1425/1725rpm,110-416V,550W.Plug for USA,EU,UK,India

Standard or Nonstandard:: Standard

Material:: Aluminum alloy

Color:: Grey

Quick Details

Application:: Food and Beverage Industry, Pharmaceutical industry, Ultrahigh vacuum unit, Vacuum sputtering machine, IC plasma cleaning machine, IC plasma polishing machine, IC packaging machine, IC transport chamber, LED vacuum annealing furnace, Load lock/transfer chambers, Glove box, LED packaging machine, Liquid crystal injection and packaging, Vacuum annealing furnace, Vacuum diffusion oven, 3D metal printing, Single crystal growth furnace, Microwave cleaning and microwave drying machine, E-beam/Laser melting, Vacuum degassing, Vacuum gas substitution, Freezing dryer, Vacuum storage, Low temperature plasma sterilizer, Dental equipment, Lithium battery drying and packaging machine, Spectroscopy/scanning electron microscopy, Space environment simulation machine, Helium Leak detector, Mass spectrometer, Cryopump regeneration, Oil free ultrahigh vacuum unit, Vacuum equipment

Pressure:: Low Pressure

Voltage:: 110~115v,200~230v,380~415v,460v

Warranty:: 1 year

Brand Name:: GEOWELL

Model Number:: GWSPS150

Place of Origin:: Liaoning, China

Structure:: Scroll Pump

Outlet Size:: KF16

Power:: 0.55kw

motor:: 1 or 3 phase

Certification:: CE, EAC, ISO9001 certificated

Feature:: No oil, low noise, maintenance free,provide clean vacuum

Mechanical Seal:: Clearance sealed

Motor:: 1/3 phase,50-60Hz,1425/1725rpm,110-416V,550W.Plug for USA,EU,UK,India

Standard or Nonstandard:: Standard

Material:: Aluminum alloy

Color:: Grey

Product Description

· Model: GWSPS150

Oil free Scroll Vacuum Pump

· Pumping Speed:

2.6 l/s(50Hz), 3.1 l/s(60Hz)

· Ultimate Pressure:

Up to 10 Pa/0.1 mbar

Features & Benefits

Specification

Working principle

GWSPS oil free scroll vacuum pump is constructed with pump head assembly, crank pin assembly, bracket assembly, air flush assembly, and exhaust valve assembly. Two spiral cylinders, one offset and orbiting against the other fixed with an offset of 180° to form several crescent-shaped pockets of different sizes. By means of an eccentric drive, the orbiting scroll is made to orbit about the fixed scroll, reducing the volume of the pockets and compressing gas from outside towards the inside thereby pumping the gas from vacuum chamber.

Model

GWSPS75

GWSPS150

GWSPS300

GWSPS500

GWSPS900

Pumping Speed

50Hz

l/s

1.0

2.6

4.4

6.7

11.6

l/min

60.0

156.0

264.0

402.0

693.0

m ³ /h

3.6

9.4

15.8

24.0

41.6

cfm

2.2

5.7

8.8

14.7

24.6

60Hz

l/s

1.2

3.1

5.3

8.1

13.9

l/min

72.0

187.0

317.0

482.0

831.6

m ³ /h

4.2

11.1

18.9

28.8

50.0

cfm

2.4

6.8

10.6

17.6

30.0

Ultimate Pressure

≤15

≤10

≤8

≤5

≤200

mbar

≤1.5*10 ^-1

≤1.0*10 ^-1

≤8.0*10 ^-2

≤5.0*10 ^-2

≤2.0

Torr

≤1.1*10 ^-1

≤7.5*10 ^-2

≤6.0*10 ^-2

≤3.7*10 ^-2

≤1.5

psi

≤2.2*10 ^-3

≤1.5*10 ^-3

≤1.2*10 ^-3

≤7.5*10 ^-4

≤2.9*10 ^-2

Noise Level

dB(A)

≤57

≤57

≤60

≤61

≤65

Leakage

mbar·l/s

1*10 ^-7

Max. Inlet/Exhaust Pressure

MPa

0.1 / 0.13

Ambient Operation Temp.

℉

41～104

Motor 1 phase

Power

0.55

Voltage

110～115 (60Hz)，200～230 (50Hz)

Speed

rpm

1425(50Hz)，1725(60Hz)

Plug

North America, Europe, UK/Ireland, India

Motor 3 phase

Power

0.55

0.55

0.75

1.50

Voltage

200～230 or 380～415 (50Hz)，200～230 or 460 (60Hz)

Speed

rpm

1425 (50Hz)，1725 (60Hz)

Inlet/Exhaust Flange

KF25/KF16

KF40/KF16

KF40/KF16*2

Dimensions

1 phase

505*265*275

510*265*275

535*320*305

3 phase

505*265*275

510*265*275

535*320*305

590*320*345

Net Weight

1 phase

3 phase

Cooling Type

Air cooled

Safety precaution

The GWSPS series oil free scroll vacuum pumps are suitable for clean processes only.
Do not pump toxic, explosive, flammable or corrosive substances or substances which contain chemicals, solvents or
particles.GEOWELL will not perform maintenance work on pumps which have used special gases or other hazardous substances.
Be sure the inlet gas temperature must be lower than 122 °F.

Application Field

Semiconductor industry

Vacuum sputtering machine.

IC plasma cleaning machine.

IC plasma polishing machine.

IC packaging machine.

IC transmission chamber.

Photoelectric industry

LED vacuum annealing furnace.
Load lock/transfer chambers.
Glove box.
LED packaging machine.
Liquid crystal injection and packaging.

Material industry

Vacuum annealing furnace.
Vacuum diffusion oven.
3D metal printing.
Single crystal growth furnace.
Microwave cleaning and microwave drying machine.
E-beam/Laser melting.
Vacuum degassing.
Vacuum gas substitution.

Food and drug industry

Freezing dry.

Vacuum storage.

Low temperature plasma sterilizer.
Vacuum storage.

Analyzing instrument and device

Spectroscopy/scanning electron microscopy.
Space environment simulation machine.
Helium Leak detector.
Mass spectrometer.
Cryopump regeneration.
Accelerators/synchrotrons.
