Quick Details
-
Blade Speed (m/min):
-
27.41.59.78MPM
-
Weight (KG):
-
170
-
Motor Power (kw):
-
1.1
-
Name:
-
Metal saw machine BS-712R single side saw machine
-
Model:
-
BS-712R
-
@90°Round steel:
-
178mm(7)
-
@90°Square steel:
-
178*210mm(7*8.25)
-
Blade size:
-
19*0.9*2362mm
-
Motor power:
-
750W1HP(3PH),1.1Kw1.5HP(1PH)
-
Drive:
-
Gear V-belt
-
Packing size:
-
129*73*115cm
-
N.W./G.W.:
-
170/192kg
-
Trade term:
-
EXW ,FOB ,CNF ,CIF
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
SGSK
-
Cutting Capacity (mm):
-
178X210mm
-
Blade Speed (m/min):
-
27.41.59.78MPM
-
Weight (KG):
-
170
-
Motor Power (kw):
-
1.1
-
Name:
-
Metal saw machine BS-712R single side saw machine
-
Model:
-
BS-712R
-
@90°Round steel:
-
178mm(7)
-
@90°Square steel:
-
178*210mm(7*8.25)
-
Blade size:
-
19*0.9*2362mm
-
Motor power:
-
750W1HP(3PH),1.1Kw1.5HP(1PH)
-
Drive:
-
Gear V-belt
-
Packing size:
-
129*73*115cm
-
N.W./G.W.:
-
170/192kg
-
Trade term:
-
EXW ,FOB ,CNF ,CIF

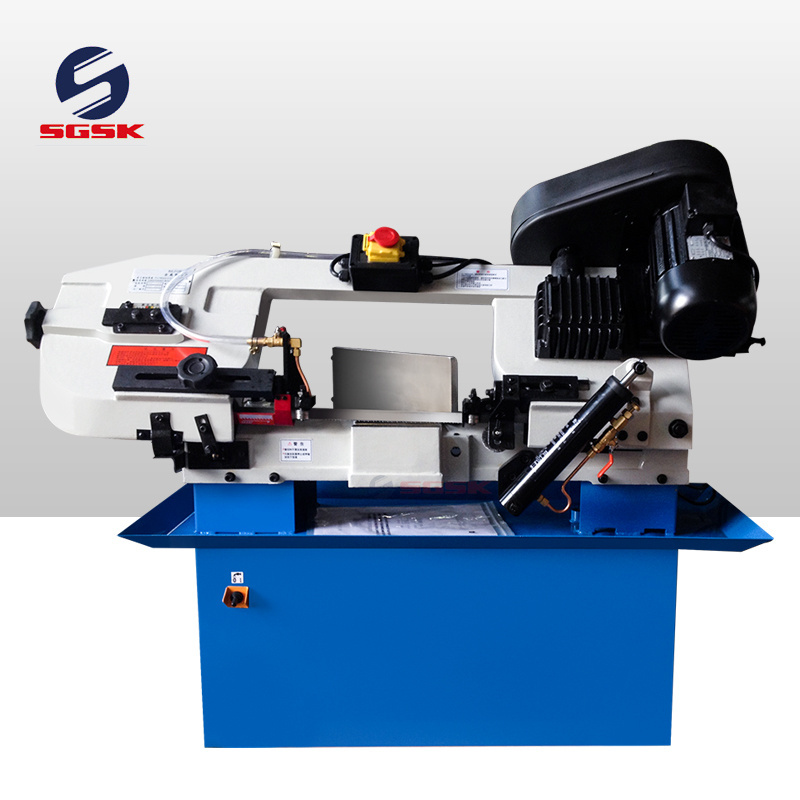

Metal saw machine BS-712R single side saw machine
Products Description
Details Display
The main performance characteristics:
1. The maximum processing capacity is 7",
2. The belt drive has fourth gear cutting speed (indicated by the letter N);
3. The belt drive has third th gear cutting speed (indicated by the letter G);
4. The Fast clamp, clamp the rotary of (0 degrees ~45 degrees) cutting (BS-712N);
5. With a locking handle, a saw bow rotary (0 degrees ~45 degrees ) cutting (BS-712GR);
6. Can the vertical horizontal dual-use ;
7. The fall speed of the saw bow is controlled by the hydraulic cylinder;
8. The machinery with base a roller, can be free to move ;
9. With stop device (After the machine sawing and cutting will automatically stop );
10. With a open the door power-off protection device (rear protection cover open when the machine will automatically power off),
11. The cooling system can prolong the service life of the saw blade, can improve the accuracy of the work piece;
12. Block device (fixed sawing length);
Application:
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
Product main technical parameters:
1. The maximum processing capacity is 7",
2. The belt drive has fourth gear cutting speed (indicated by the letter N);
3. The belt drive has third th gear cutting speed (indicated by the letter G);
4. The Fast clamp, clamp the rotary of (0 degrees ~45 degrees) cutting (BS-712N);
5. With a locking handle, a saw bow rotary (0 degrees ~45 degrees ) cutting (BS-712GR);
6. Can the vertical horizontal dual-use ;
7. The fall speed of the saw bow is controlled by the hydraulic cylinder;
8. The machinery with base a roller, can be free to move ;
9. With stop device (After the machine sawing and cutting will automatically stop );
10. With a open the door power-off protection device (rear protection cover open when the machine will automatically power off),
11. The cooling system can prolong the service life of the saw blade, can improve the accuracy of the work piece;
12. Block device (fixed sawing length);
Application:
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
Product main technical parameters:
|
Main technical parameters
|
|
|
BS-712R
|
||
|
Machining capacity
|
@90°Round steel
|
|
178mm(7″)
|
||
|
|
@90°Square steel
|
|
178×210mm(7″×8.25″)
|
||
|
|
@45°Round steel
|
|
127mm(5″)
|
||
|
|
@45°Square steel
|
|
85×140mm(3.33″×5.5″)
|
||
|
Saw cutting speeds
|
|
@ 50HZ
|
22.34.49.64MPM
|
||
|
|
|
@ 60HZ
|
27.41.59.78MPM
|
||
|
Saw blade size
|
|
|
19×0.9×2362mm
|
||
|
Motor power
|
|
|
750W1HP(3PH),1.1Kw1.5HP(1PH)
|
||
|
Drive
|
|
|
Gear V-belt
|
||
|
Package size
|
|
|
129×73×115cm
|
||
|
NW/GW
|
|
|
170/192kg
|
||
