Quick Details
-
Brand Name:
-
Greenpower,GP
-
Model Number:
-
GPQ3
-
Rated Frequency (Hz):
-
50
-
Website:
-
www.sinogp.com
-
Type:
-
Moulded Case
-
Poles Number:
-
3
-
BCD Curve:
-
C
-
Rated Frequency:
-
50/60hz
Quick Details
-
Breaking Capacity:
-
16kA
-
Rated Voltage:
-
690V, 380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Greenpower,GP
-
Model Number:
-
GPQ3
-
Rated Frequency (Hz):
-
50
-
Website:
-
www.sinogp.com
-
Type:
-
Moulded Case
-
Poles Number:
-
3
-
BCD Curve:
-
C
-
Rated Frequency:
-
50/60hz

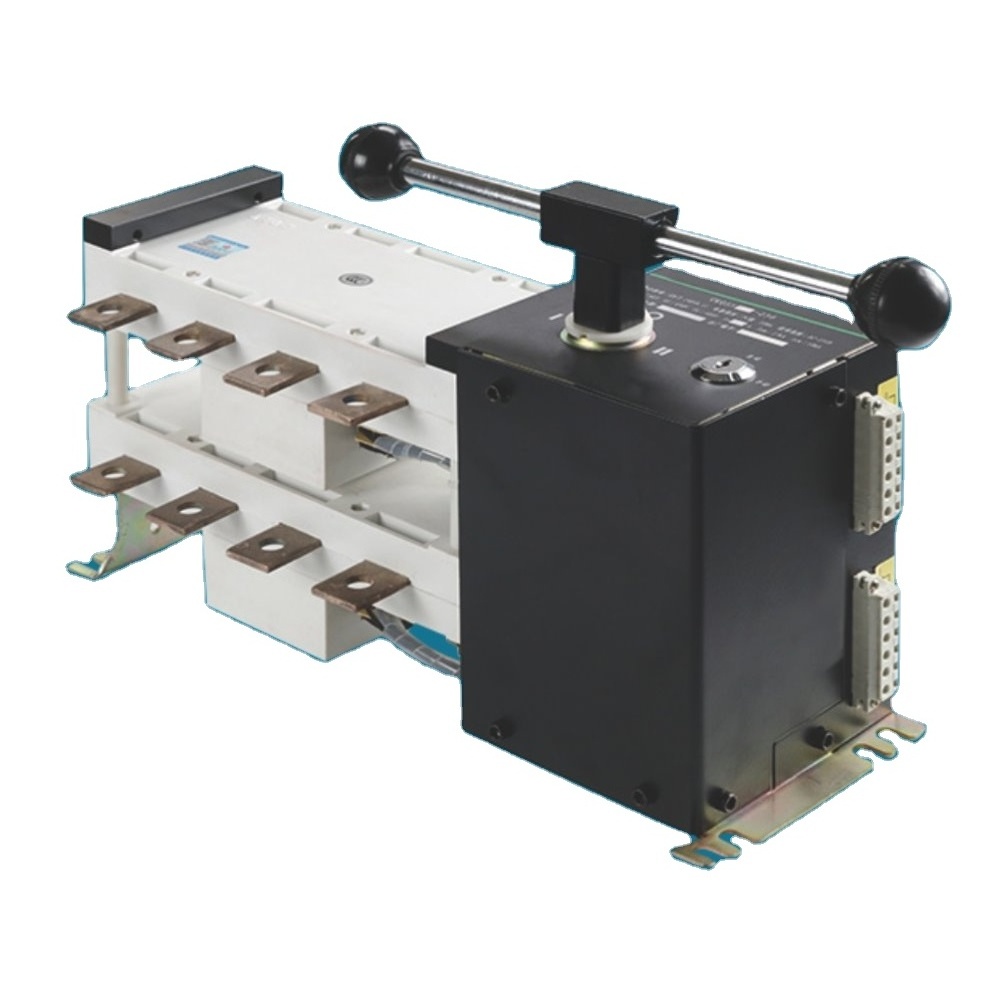

GPQ3 type dual power supply transfer switch (Class CB) is set the switches and control logic integrated without additional controller, achieve integration of automatic electromechanical switch, voltage detection, frequency detection, communication interface, electrical, mechanical interlocking functions, automatic, electric remote emergency manual control. It is suit for 50/60Hz, with rated working current from 16A to 630A, rated insulating voltage AC 690V. Rated impulse withstand voltage 8kV, rated working voltage 400V. It applies the standard IEC 60947-6.
|
GPQ3
GPQ5
|
Dual power supply transfer switch
Automatic dual power supply transfer switch
|
|
Z
|
Control function code:
Z: Grid-Grid
ZF: Grid-Generate |
|
100
|
Shield frame current
|
|
S
|
Breaking grade:
S: standard type H: high breaking type |
|
3P
|
Phase and N-phase structure
3 phase: 3P
4 phase: 4A, 4B, 4C, 4D |
|
100
|
Rated current
Main specification and execute |
|
Y
|
Transfer switch type
Y: Integrated type
Split-type no code
|
Note: The N phase of 4P circuit breaker has 4 structures:
4A: N phase do not install current tripper and N phase always connected;
4B: N phase do not install current tripper and N phase operated together with other 3 phases;
4C: N phase installed over-current tripper and N phase operated together with other 3 phases;
4D: N phase installed over-current tripper and N phase always connected.
Integrated control unit installed on the switch body; split type means the control unit through a 2m length connecting cable to connect the switch body, the control unit can installed on the cabinet door or surface panel.
|
Controller function
|
Grid-Grid
|
Grid-Generate
|
|
|
Main performance
|
Measuring phase voltage of the common and spare supply, if over the setting value, then transfer or lighting and sound warning
|
Measuring the voltage for each phase of supply, if find over the setting range of the setting time, it will commended to start generator, when the supply back to normal will transfer back
|
|
|
4 position working state
|
A. “Automatic” operation, B. Forced on “common supply”; C. forced on “spare supply” (or generator supply), D. “Stop” state.
|
|
|
|
Controller state indicate
|
Close, Open, Fault trip, Warning
|
|
|
|
Voltage protection range
|
Low-voltage protection ( 150V~200V; user can adjust, step in 1V; over-voltage (230, 280V, user can adjust, step in 1V
|
|
|
|
Control function
|
Common, spare (generator) automatic switch and recover; Common, spare (generator) automatic switch without automatic recover.
|
|
|
|
Control performance
|
Open delay time t1(0-60s, user can adjust), close delay t2 (0~60 s, user can adjust)
|
Open delay t1(0-60s, user can adjust); close delay t2 (0~60s, user can adjust); generator start delay t3 (0-30s, user can adjust); generator close delay t4 (0-300s, user can adjust)
|
|
|
Type
|
Frame current
|
Executed circuit breaker
|
phase of circuit breaker
|
Rated current(A)
|
Rated working voltage
|
Rated insulating voltage
|
|
GPQ3Z(ZF)-63
|
63
|
GPM3-63
|
3 P (S, H), 4P (H)
|
16, 20, 25, 32, 40, 50, 63
|
AC 690V
|
AC1000V
|
|
GPQ3Z(ZF)-100
|
100
|
GPM3-100
|
3P (S,H), 4P (H)
|
16,20,25,32,40,50,63,80,100
|
|
|
|
GPQ3Z(ZF)-255
|
255
|
GPM3-255
|
3P(S, H), 4P (H)
|
100,125,140,160,180,200,225
|
|
|
|
GPQ3Z(ZF)-400
|
400
|
GPM3-400
|
3P(S, H), 4P (H)
|
225,250,315,350,400
|
|
|
|
GPQ3Z(ZF)-630
|
630
|
GPM3-630
|
3P(S, H), 4P (H)
|
400,500,630,
|
|
|
|
GPQ3Z(ZF)-800
|
800
|
GPM3-800
|
3P(S, H)
|
630,700,800
|
|
|
Packing Details : Packing, Film covered, Pallets, Vacuum package with plywood case, Plywood case
Delivery Details : 3-30 days after confirmed order
1. Basic by Corrugated cartons
2. Suitable size with shock bubble film
3. Light material by pallets
4. Air dispatched film covered
5. Vacuum package with plywood case
6. Loaded container
