Quick Details
-
Place of Origin:
-
Beijing, China
-
Warranty:
-
3 Years
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Brand Name:
-
Hua wei
-
Model Number:
-
S200-48T4X
-
Place of Origin:
-
Beijing, China
-
Warranty:
-
3 Years
Product Description
Indicator lights and buttons
The S200-48T4X has no PoE mode status and USB indicators. The indicators and meanings of other indicators are the same as those of the S200-48P4X. Please refer to the S200-48P4X.
power supply system
The power configuration mode of the device is a built-in single AC power supply, and does not support pluggable power modules.
cooling system
The device has a built-in fan. The heat dissipation type is forced cooling by the fan. The airflow direction is left, forward, and right.
Product Paramenters
|
Model
|
S200-48T4X
|
|
Description
|
S200-48T4X (48 10/100/1000BASE-T Ethernet ports, 4 10G SFP+, AC power supply)
|
|
Chassis height
|
1u
|
|
Typical power consumption
|
43.3W
|
|
Typical cooling value
|
147.74BTU/hour
|
|
Maximum power consumption
|
50.4W
|
|
Maximum cooling value
|
171.97BTU/hour
|
|
MTBF
|
55.33 years
|
|
MTTR
|
2 hours
|
|
Power supply system
|
built-in AC power supply
|
|
Rated input voltage
|
AC input: 100V AC ~ 240V AC; 50/60Hz
|
|
Input voltage range
|
AC input: 90V AC ~ 264V AC; 47Hz ~ 63Hz
|
|
Maximum input current
|
2A
|
|
Fan type
|
built-in fan
|
|
Heat dissipation method
|
air-cooled heat dissipation, intelligent speed regulation
|
|
Airflow direction
|
left forward wind, right out wind
|
Detail Images

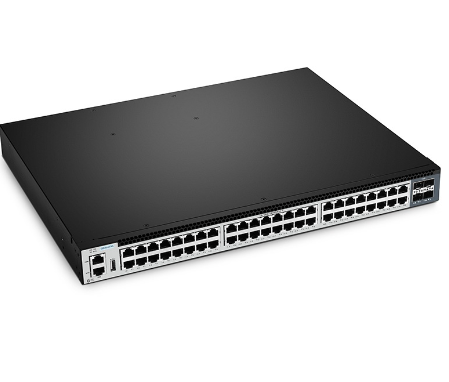

S200-48T4X Appearance
1.48 10/100/1000BASE-T Ethernet electrical interfaces
2.4 10GE SFP+ Ethernet optical interfaces
3.1 Console interface 4
.1 RST button
Notice:
Long press (more than 6s): Restore factory settings and reset the device.
Short press: reset the device.
Resetting the device will cause business interruption, so use this button with caution
5. Ground screw
6. AC terminal anti-trip socket
illustrate:
The jack reserved for installing the anti-trip of the AC terminal, the anti-trip of the AC terminal is not shipped with the device.
7. AC power socket
