Quick Details
-
Pressure:
-
1.5MPa-15MPa
-
Size:
-
0.5 to 5 mm thick
-
Color:
-
black, green or as request
-
Thickness:
-
0.4mm-6.0mm
-
Tensile Strength::
-
5MPa-22MPa
-
Surface:
-
Smooth
-
Working Temperature::
-
150~570C
Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
non Asbestos Sheet
-
Density:
-
1.7-1.9g/cm3
-
Pressure:
-
1.5MPa-15MPa
-
Size:
-
0.5 to 5 mm thick
-
Color:
-
black, green or as request
-
Thickness:
-
0.4mm-6.0mm
-
Tensile Strength::
-
5MPa-22MPa
-
Surface:
-
Smooth
-
Working Temperature::
-
150~570C
Product Description

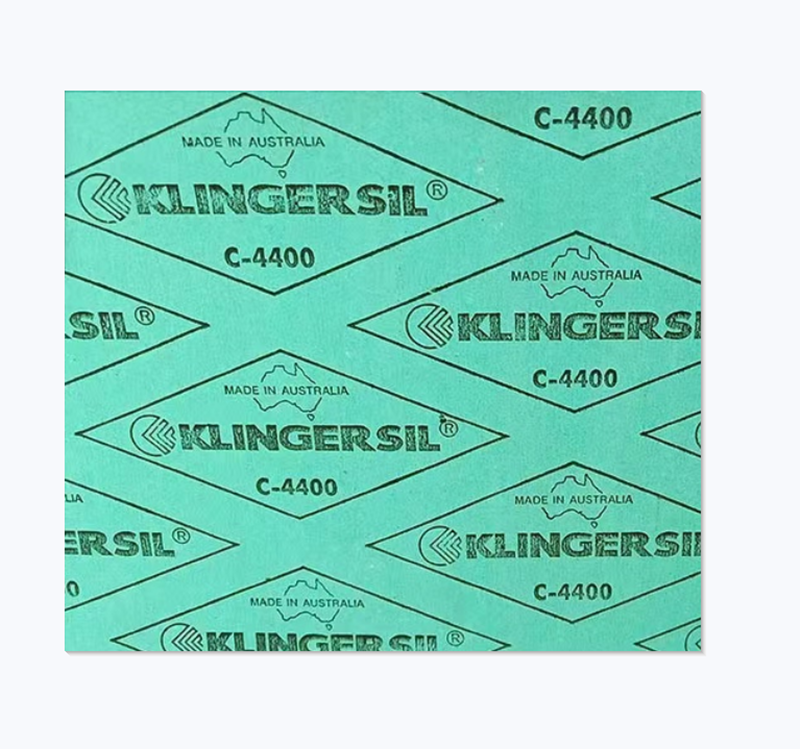

Sales of full series of klingersil asbestos free board :
C4243-1500*2000*2mm
C4243-1500*2000-3mm
C4400-1500*2000-2mm
C4400-1500*2000-3mm
C4500-1500*2000-2mm
C4500-1500*2000-3mm
Discount for large quantity, can be processed and customized
Standard thickness: 1.0 in common use; 1.5; 2.0; 3.0mm ; In addition, please call to inquire about ultra-thin or ultra-thick parts
technical parameter
Maximum operating temperature 400 ° C
Maximum operating pressure 100 bar
Compressibility ASTM F36A 11%
Rebound rate ASTM F36A (min) 55%
KLINGER hot press test 25 MPa 300 ° C
Thickness reduction 23 ° C 10%
Thickness reduction 300 ° C 22%
Tensile strength ASTM F152 15 MPa
Gas leakage DIN 3535/6 0.2 ml/min
Pressure relaxation BS7531 23 MPa
Pressure relaxation DIN 52913 (16h, 300 ° C) 25 MPa
Weight increase ASTM F146
ASTM oil No. 3 (5h/150 ° C) 3%
ASTM fuel oil B (5h/23 ° C) 5%
Thickness increase ASTM F146
ASTM oil No. 1 (5h/150 ° C) 0 - 5%
ASTM oil No. 3 (5h/150 ° C) 0 - 5%
ASTM fuel oil A (5h/23 ° C) 0 - 5%
ASTM fuel oil l B (5h/23 ° C) 0 - 5%
Density 1.6 g/cm3
Maximum operating temperature 400 ° C
Maximum operating pressure 100 bar
Compressibility ASTM F36A 11%
Rebound rate ASTM F36A (min) 55%
KLINGER hot press test 25 MPa 300 ° C
Thickness reduction 23 ° C 10%
Thickness reduction 300 ° C 22%
Tensile strength ASTM F152 15 MPa
Gas leakage DIN 3535/6 0.2 ml/min
Pressure relaxation BS7531 23 MPa
Pressure relaxation DIN 52913 (16h, 300 ° C) 25 MPa
Weight increase ASTM F146
ASTM oil No. 3 (5h/150 ° C) 3%
ASTM fuel oil B (5h/23 ° C) 5%
Thickness increase ASTM F146
ASTM oil No. 1 (5h/150 ° C) 0 - 5%
ASTM oil No. 3 (5h/150 ° C) 0 - 5%
ASTM fuel oil A (5h/23 ° C) 0 - 5%
ASTM fuel oil l B (5h/23 ° C) 0 - 5%
Density 1.6 g/cm3
| brand | yapai |
| provinces | Hebei |
| Size | 1 to 5 mm thick |
| color | black, red, green or as request |
