Quick Details
-
Dimension(L*W*H):
-
2800mm*6600mm
-
Year:
-
2024
-
Power (kW):
-
25 kW
-
Weight (KG):
-
25000 KG
-
Applicable Industries:
-
pyrolysis
-
Raw material:
-
pyrolysis machine for waste tyre/rubber/plastic
-
Function:
-
pyrolysis machine
-
Final product:
-
pyrolysis oil , carbon black , steel wire
-
Technology:
-
pyrolysis plastic to fuel
-
Material of Reactor:
-
Q245R /Q345R steel boiler plate
-
Reactor thickness:
-
16mm/18mm
-
machine landing area:
-
400 square meter
-
Operators:
-
4 workers
-
Factory:
-
Over 20 years manufacturing experience
-
Product name:
-
pyrolysis waste plastic to furnace oil Hot sale in Europe
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huayin
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2800mm*6600mm
-
Year:
-
2024
-
Power (kW):
-
25 kW
-
Weight (KG):
-
25000 KG
-
Applicable Industries:
-
pyrolysis
-
Raw material:
-
pyrolysis machine for waste tyre/rubber/plastic
-
Function:
-
pyrolysis machine
-
Final product:
-
pyrolysis oil , carbon black , steel wire
-
Technology:
-
pyrolysis plastic to fuel
-
Material of Reactor:
-
Q245R /Q345R steel boiler plate
-
Reactor thickness:
-
16mm/18mm
-
machine landing area:
-
400 square meter
-
Operators:
-
4 workers
-
Factory:
-
Over 20 years manufacturing experience
-
Product name:
-
pyrolysis waste plastic to furnace oil Hot sale in Europe
waste plastic tyre pyrolysis plant and refinery cost fast installation
With the increasing awareness of environmental protection in the world, the harmless and resourceful disposal of waste tires/plastic has become an important trend. The waste plastic /tyre recycle to fuel oil machinery is designed to process the waste into valuable products -industrial fuel oil, carbon black, and steel wire through catalytic cracking technology. This green technology has created good economic and social benefits.
Specification of waste plastic pyrolysis plant and refinery
|
Unit capacity
|
5-15tons
|
|
Production mode
|
Batch type
|
|
Overall Dimension
|
35M*12M*8M
|
|
Total Weight
|
30-45Tons
|
|
Internal Volume of Reactor
|
22.8-49.85CBM
|
|
Condensing System
|
Horizontal condenser & Square box condenser
|
|
Emission Control System
|
Water film scrubber & Stainless steel scrubber plus internal filters
|
|
Heating system
|
Oil burners and gas burners
|
|
Feeding System
|
Hydraulic feeder
|
|
Discharging System
|
Side discharging : U -shape screw conveyor
|
Input raw material
Input raw material : waste tyre ,rubber , plastic , pp, pe , ps , abs etc.
Output product : Pyrolysis oil , carbon black , and steel wire , syngas.
Capacity : 10kg , 750kg , 4ton , 5ton , 10ton , 15ton, 30ton , 50ton. support customization.
Output product
|
Output Products
|
Application
|
|
Fuel Oil
(40%-55%) |
1. Used as the heating material and sell it to cement factories, glass factories, ceramic factories, electric power factories, steel making factories, boiler factories, etc.
2. Used in heavy oil generator for electricity generation. 3. Deep process it into diesel oil with our distillation plant, color, and smell removal system, the final oil can be used in trucks, tractors, etc. |
|
Carbon Black (30%-35%)
|
Make it to pellet or briquette as heating material.
|
|
Steel Wire (10%-15%)
|
It's easy to sell to scrap metal dealers.
|
|
Flammable Gas (8%-10%)
|
1. Recycled into the furnace to heat reactor instead of coal/wood/oil/natural gas.
2. Storage the exceed gas to restart the next batch. |
working process
Operation process of waste plastic pyrolysis plant
1. Loading the waste material into the pyrolysis reactor manually or with auto feeder.
2. Heating the pyrolysis reactor and producing oil.
3. The exhaust gas which can not be cooled to liquid oil will be recycled to heat the reactor. Smoke will be purified through strong and powerful dust removal device.
4. Cool the pyrolysis reactor after oil production is finished.
5. Discharging carbon black and steel wire.
1. Loading the waste material into the pyrolysis reactor manually or with auto feeder.
2. Heating the pyrolysis reactor and producing oil.
3. The exhaust gas which can not be cooled to liquid oil will be recycled to heat the reactor. Smoke will be purified through strong and powerful dust removal device.
4. Cool the pyrolysis reactor after oil production is finished.
5. Discharging carbon black and steel wire.

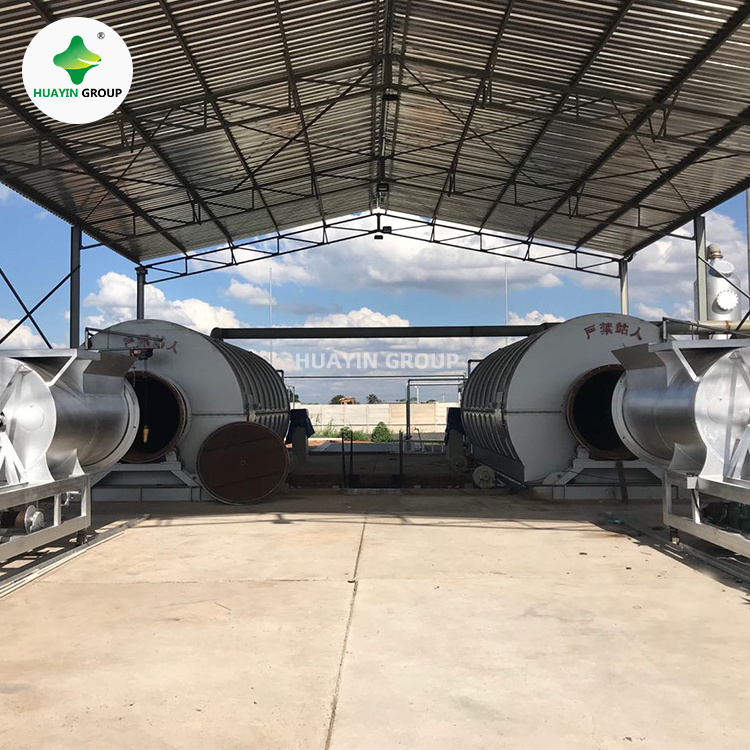

Installation cases
1.The material of the reactor is Q345R/Q245R boiler plate with 16/18mm thickness.
The rollers are engineered underfeeding port and oil outlet port which are external to the heating area to bring perfect rotating balance and longer service life.
2. Two devices to avoid backfire in production: oil-water separator and anti-back fire device.
2. Vacuum device makes the reactor work under ordinary pressure or negative pressure.
4. Temperature monitoring and Pressure gauge to monitor the pressure. If the pressure goes above a certain level, the bell will alarm and the safety valve will release the pressure automatically.
2. Vacuum device makes the reactor work under ordinary pressure or negative pressure.
4. Temperature monitoring and Pressure gauge to monitor the pressure. If the pressure goes above a certain level, the bell will alarm and the safety valve will release the pressure automatically.
5. The flue gas (caused by burning fuel to heat the reactor) will be purified and cooled by a powerful ceramic packing dust removal device, then can be released into the air through the chimney.
6. Carbon black will be discharged out in sealed condition to avoid pollution.
6. Carbon black will be discharged out in sealed condition to avoid pollution.
Our Advantages
Our Service
1. Huayin provides engineering design based on customers’ Help customers choose the most suitable models to recycle the waste.
2. We will send experienced engineer to customer’s site for guiding installation, commissioning and training the workers until the equipment runs stably.
3. Huayin provides one year warranty for each set of equipment and life -long maintenance service.
2. We will send experienced engineer to customer’s site for guiding installation, commissioning and training the workers until the equipment runs stably.
3. Huayin provides one year warranty for each set of equipment and life -long maintenance service.
Contact US
Established in 1993, Xinxiang HUAYIN Renewable Energy Equipment Co., Ltd is an environmental protection plant manufacturer integrating product R&D, design, production, marketing, installation and after-sales. HUAYIN Energy enjoys a technical and service team composed of more than 30 experienced engineers and a number of invention patents, CE, SGS, ISO9001 and ISO14001 certifications.
Our certificates
For more details informaiton about the pyrolysis machine ,welcome contact us !
