Quick Details
-
Application:
-
pond, landfill, mining, dam, fish pond, road, etc, POND, DAM, LANDFILL, SHRIMP FARM, ETC
-
Design Style:
-
Industrial
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Jiashang, Jiashang
-
Model Number:
-
Geomembranes, complete
-
Elongation at break::
-
Min 700%
-
Packaging Details:
-
rolled and and packing by woven bag
-
Length:
-
50-200m/roll
-
Thickness:
-
0.1mm-2.5mm
-
Function:
-
leakproof
-
Tensile strength::
-
Min8-44N/mm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
pond, landfill, mining, dam, fish pond, road, etc, POND, DAM, LANDFILL, SHRIMP FARM, ETC
-
Design Style:
-
Industrial
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Jiashang, Jiashang
-
Model Number:
-
Geomembranes, complete
-
Elongation at break::
-
Min 700%
-
Packaging Details:
-
rolled and and packing by woven bag
-
Length:
-
50-200m/roll
-
Thickness:
-
0.1mm-2.5mm
-
Function:
-
leakproof
-
Tensile strength::
-
Min8-44N/mm

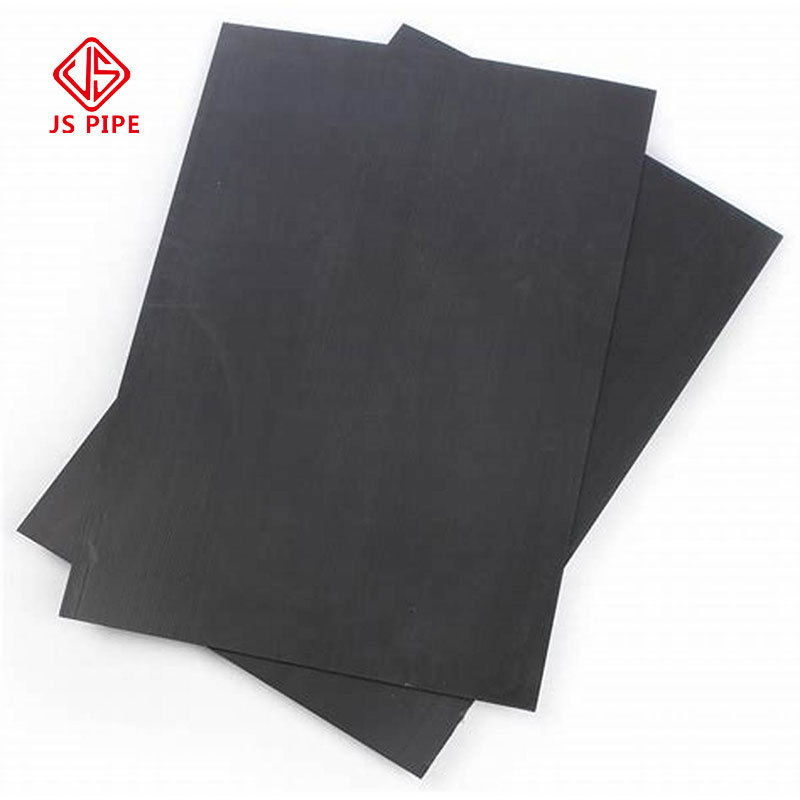

Products Description
Details Show
Specifications
|
Spec
|
GMS0.5
|
GMS0.75
|
GMS1.0
|
GMS1.25
|
GMS1.5
|
GMS2.0
|
GMS2.5
|
|||||||
|
Thickness
|
0.50mm
|
0.75mm
|
1.0mm
|
1.25mm
|
1.5mm
|
2.0mm
|
2.5mm
|
|||||||
|
Density( ≥)
|
0.940g/cc
|
0.940g/cc
|
0.940g/cc
|
0.940g/cc
|
0.940g/cc
|
0.940g/cc
|
0.940g/cc
|
|||||||
|
Tensile Properties(Each direction)(2) yield strength break strength yield elongation break elongation
|
7 kN/m 10 kN/m - 600%
|
10 kN/m 15 kN/m - 600%
|
13 kN/m 20 kN/m 11% 600%
|
16 kN/m 25 kN/m 11% 600%
|
20 kN/m 30 kN/m 11% 600%
|
26 kN/m 40 kN/m 11% 600%
|
33 kN/m 50 kN/m 11% 600%
|
|||||||
|
Tear Resistance(z)
|
56 N
|
84 N
|
115 N
|
140 N
|
170 N
|
225 N
|
280 N
|
|||||||
|
Puncture Resistance(z)
|
120 N
|
180 N
|
240 N
|
300 N
|
360 N
|
480 N
|
600 N
|
|||||||
|
Carbon Black Content
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
|||||||
|
Carbon Black Dispersion
|
Note(1)
|
Note(1)
|
Note(1)
|
Note(1)
|
Note(1)
|
Note(1)
|
Note(1)
|
|||||||
|
Oxidative InductionTime(OIT)Standard OIT(≥)
|
60 min.
|
60 min.
|
60 min.
|
60 min.
|
60 min.
|
60 min.
|
60 min.
|
|||||||
|
Note(1): Carbon black dispersion (only near spherical agglomerates) for 10 different views:9 in Categories 1 or 2 and 1 in Category3.
|
|
|
|
|
|
|
|
|||||||
