Quick Details
-
Weight:
-
650 KG
-
Product name:
-
Mini crawler tractor
-
Use:
-
Farm Land
-
Application:
-
Farm Work Machinery
-
After-sales Service Provided:
-
Online Support
-
Engine:
-
4 Cylinder Diesel Engine
-
Engine type:
-
Single Cylinder Engine
-
Horse power:
-
20hp~90hp
-
Color:
-
Customer Requirements
-
Tail Output Speed (R/M):
-
220
-
PTO Speed:
-
540/1000
Quick Details
-
Brand Name:
-
YueShan
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
CHANGDA
-
Weight:
-
650 KG
-
Product name:
-
Mini crawler tractor
-
Use:
-
Farm Land
-
Application:
-
Farm Work Machinery
-
After-sales Service Provided:
-
Online Support
-
Engine:
-
4 Cylinder Diesel Engine
-
Engine type:
-
Single Cylinder Engine
-
Horse power:
-
20hp~90hp
-
Color:
-
Customer Requirements
-
Tail Output Speed (R/M):
-
220
-
PTO Speed:
-
540/1000
Products Description
|
Model
|
YSCT-25D
|
YSCT-25P
|
YSCT-35D1
|
YSCT-35P1
|
YSCT-50D
|
YSCT-50P
|
YSCT-80
|
YSCT-120
|
||||||||
|
Number of cylinders
|
1
|
1
|
1
|
1
|
4
|
4
|
4
|
4
|
||||||||
|
Tank Capacity (L)
|
15
|
15
|
20
|
20
|
52
|
52
|
52
|
92
|
||||||||
|
Transmission System
|
|
|
|
|
|
|
|
|
||||||||
|
Number of Gear
|
6F+2B
|
6F+2B
|
6F+2B
|
6F+2B
|
8F+2B
|
8F+2B
|
8F+2B
*8F+8B
|
8F+2B
*8F+8B
|
||||||||
|
Max walking speed (km/h)
|
15
|
15
|
15
|
15
|
20
|
20
|
25
|
30
|
||||||||
|
Dimension
|
|
|
|
|
|
|
|
|
||||||||
|
Outline Size (CM)
|
2700*780*1060
|
2450*1100*1200
|
2750*930*1000
|
2650*1250*1400
|
2550*1400*1300
|
2650*1650*1550
|
2900*1800*1650
|
2900*1850*1650
|
||||||||
|
Crawler Track Width (CM)
|
180*72*36
|
250*84*42
|
180*72*36
|
280*90*38
|
230*72*48
|
350*90*56
|
350*90*56
|
350*90*58
|
||||||||
|
Chassis height from ground (CM)
|
20
|
40
|
20
|
40
|
20
|
40
|
40
|
45
|
||||||||
|
Gross Weight (KG)
|
750
|
950
|
950
|
1050
|
1350
|
1650
|
2050
|
2150
|
||||||||
|
Net Weight (KG)
|
650
|
850
|
850
|
950
|
1200
|
1500
|
1850
|
1950
|
||||||||

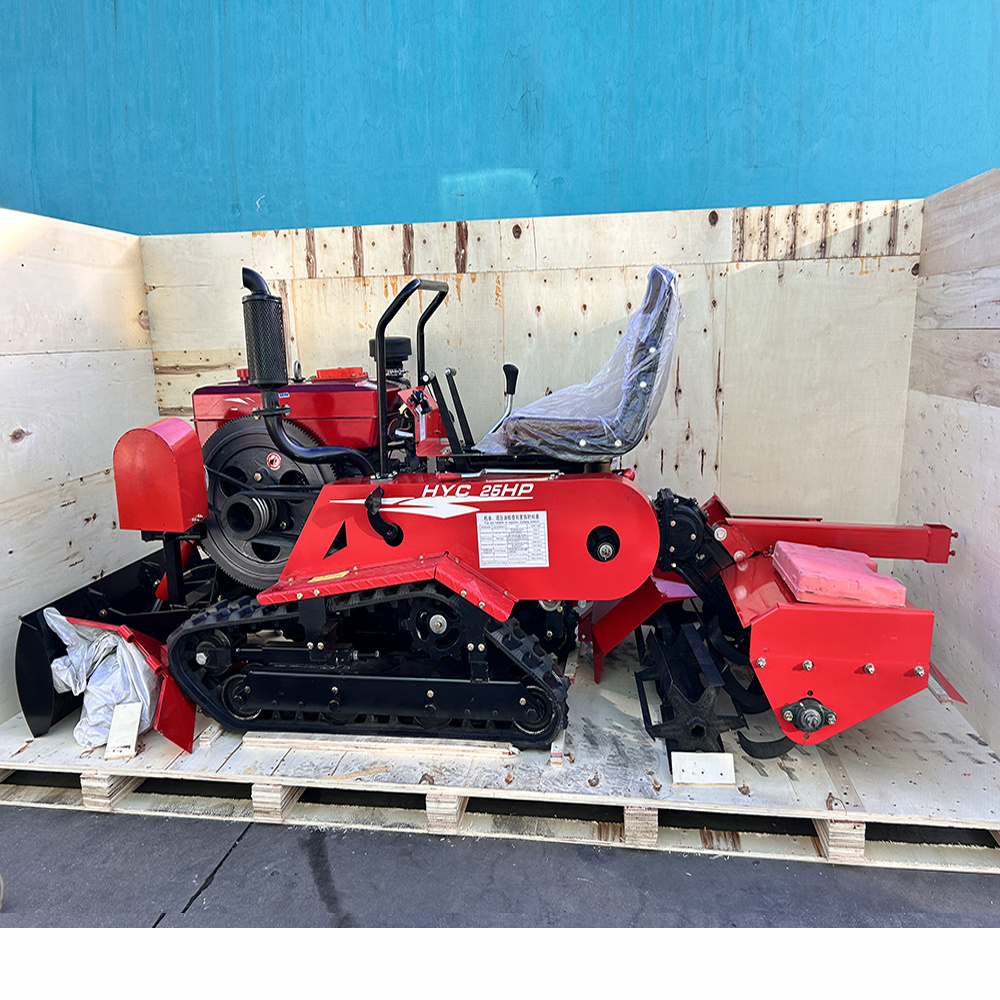

Details Images
25HP crawler tractor is custom-made full gear transmission. The engine is directly connected to the walking transmission and the rear rotary tillage transmission.
which can be matched with
Rotary tillage, trenching, backfilling, hoeing, dozer blade, loading shovel, snow shovel, saw clamp, breaker hammer, auger, double plow, sprayer, peanut planter, corn harvester, potato harvester , excavator, ridger, cane burying machine, fertilizer spreader, film mulching machine, leveling machine, remote control (6 /8 /12 channels), cab
and other attachments.
High-horsepower crawler tractors can be equipped with optional rear three-point hitch (PTO)
The engines are produced by Quanchai engine group or Changchai engine group.
Or can be customized.
The track is made of rubber + steel wire + iron skeleton.
Track attached to the ground area is large, strengthen the friction, steering and walking more flexible.
It will not cause rollover and tilt problems.
Crawler track tractor is custom-made full gear transmission. The engine is directly connected to the walking transmission and the rear rotary tillage transmission.
The front of the walking transmission has
3 forward gears, 1 backward gear,
and the rear of the working connection box.
Customer Photos
