Quick Details
-
Certificate:
-
ce
-
Warranty:
-
1 year, 1 Year
-
Protection:
-
IP67
-
OEM:
-
Accepted
-
WEIGHT:
-
2.35kg
-
Display Mode:
-
3 Digitsl (LED) Display
-
SIZE:
-
137*167*61.8mm
-
Dump load:
-
Included
-
Product name:
-

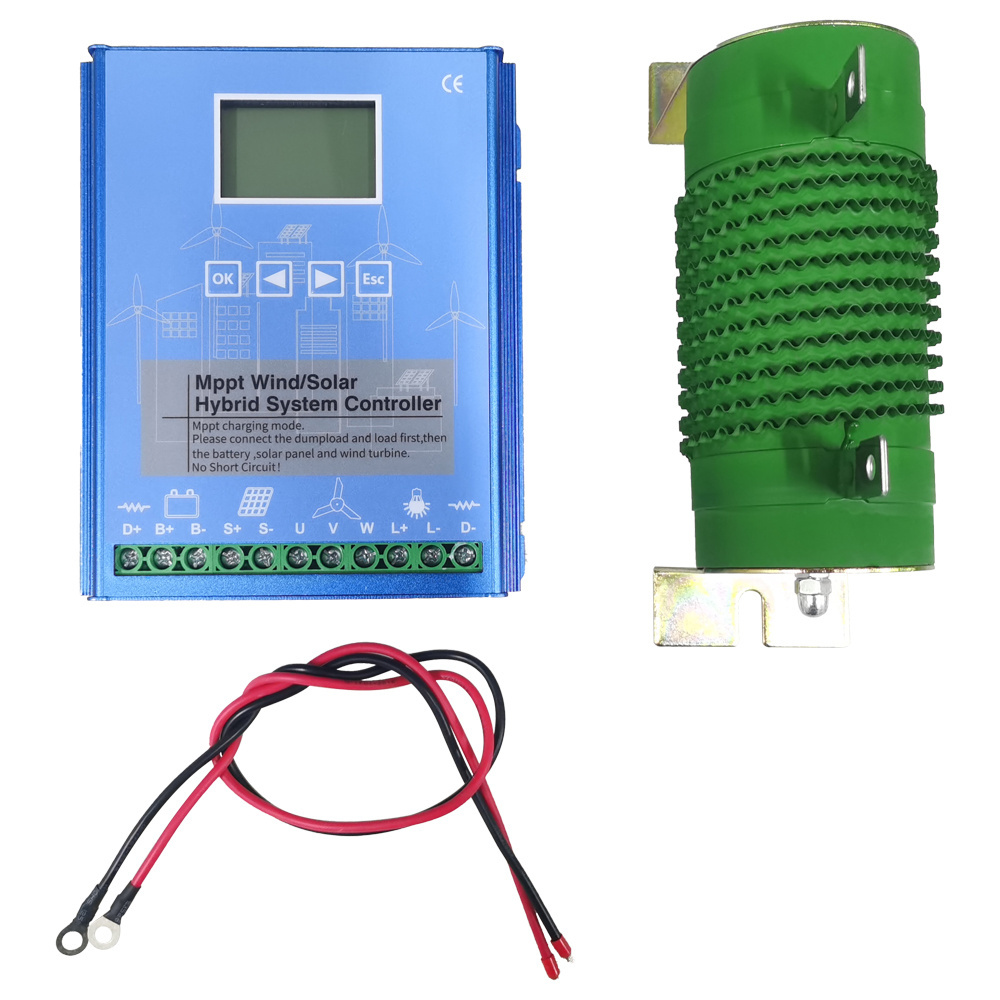

Hybrid Wind Solar Charge Controller
-
Rated Voltage:
-
12/24v AUTO / 48v
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FLTXNY
-
Model Number:
-
FLTXNY-WC02
-
Certificate:
-
ce
-
Warranty:
-
1 year, 1 Year
-
Protection:
-
IP67
-
OEM:
-
Accepted
-
WEIGHT:
-
2.35kg
-
Display Mode:
-
3 Digitsl (LED) Display
-
SIZE:
-
137*167*61.8mm
-
Dump load:
-
Included
-
Product name:
-
Hybrid Wind Solar Charge Controller
-
Rated Voltage:
-
12/24v AUTO / 48v
Specification
|
shell material
|
All aluminum body
|
|
net weight
|
2.35kg
|
|
gross weight
|
2.85kg
|
|
product size
|
137*167*61.8mm
|
|
packing size
|
360*250*120mm
|
|
Rated wind power
|
100W-600W
|
|
Rated PV power
|
100W-600W
|
|
Max input voltage
|
Wind turbine≤80V solar panel≤55V
|
|
The above three parameters must satisfy the conditions on the right.
|
（wind rated power+PV rated power）/system voltage≤40A Wind rated power/system rated voltage≤25A PV rated power /system rated power ≤25A
|
|
No-load Current (DC)
|
≤0.05A
|
|
Controller power mode
|
Battery or solar
|
|
Control mode
|
Wind generator MPPT boost charge、PWM dump load、PWM Over current Limiting function
|
|
Output working mode(Mode)
|
Mode 1: Light-control on. Light-control off (3 modes adjustable)
|
|
Display content
|
LCD display,Voltage, Percentage of battery power, Current, working mode of load, etc
|
|
Protection type
|
Solar Reversed Charging protection，Battery open circuit protection、battery anti-reverse connection protection protection、Over
current and over voltage auto brake protection、Over load protection,etc. |
|
Cooling mode
|
aluminium profiles Heat dissipation and self-cooling
|
|
Working temperature / Relative humidity
|
-25℃~+80℃ /0~90%，non-condensing
|
Details Images
All aluminum body
LCD display to fully grasp the information
The use of high-quality aviation aluminum, one-time molding stretch material, the surface of the anodic oxidation treatment has the advantages of high strength, impact resistance, wear resistance, fall resistance, fire prevention, etc., than the plastic shell has obvious advantages.
Fine workmanship
Safe and environmental protection
Heat dissipation method using aluminum profile heat dissipation since the cold impact resistance, wear resistance, fall resistance, fire resistance and other advantages, than the plastic shell has obvious advantages.
Fine workmanship
Wiring is clear
Brand series terminal block, baffle wiring port fixed on both sides, tight and not fall off.
Perfect workmanship
Excellence
Smooth surface, plates are formed in one go without welding.
Customized baffles
One-piece molding
The product baffle is made of special aluminum alloy with anti-corrosion treatment on the surface. The plates are formed in one piece without welding.
Application
Company show
Certifications
Product packaging
Logistics
Why Choose Us
1,Competitive Price
2,Controllable quality
--We are the factory/manufacturer so we can control production costs and then sell at the lowest price.
2,Controllable quality
--All products will be produced in our factory so we can show you every detail of the production and let you check the quality of the order.
3. Multiple payment methods
-- We accept online Alipay, bank transfer,Paypal ,LC, Western union etc.
4,Various forms of cooperation
--We are not only offer you our products, if it is needed, we could be your partner and design product according to your requirement. Our factory is your factory!
5.perfect after-sales service
--As a manufacturer of wind turbine and generator products for over 4 years ,we are very experiences to dealing all kinds of problems. So whatever happens,we will solve it at the first time.
