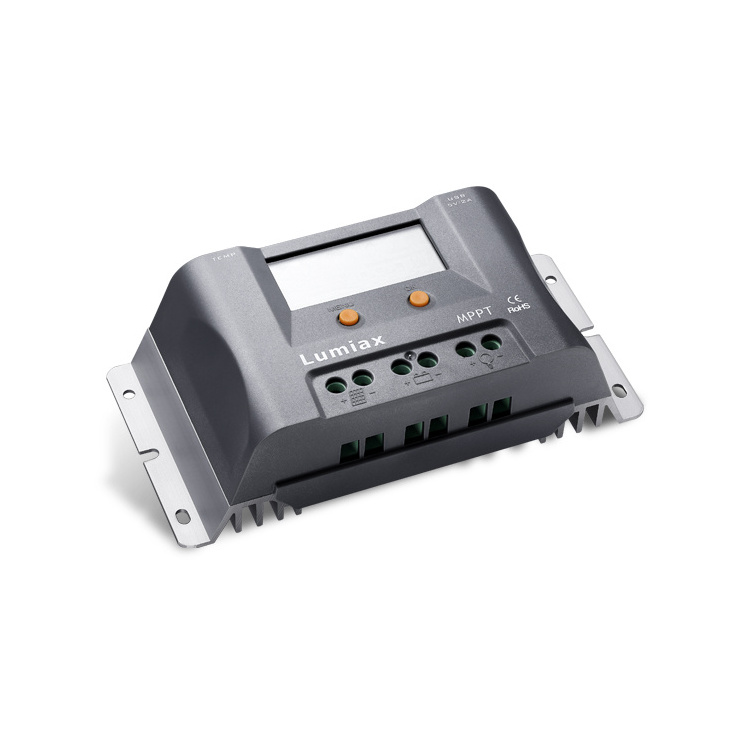

MT1050-EU
|
|
MT1550-EU
|
|
|||
|
Ampere
|
10A
|
|
15A
|
|
|||
|
System Voltage
|
12V
|
|
|
|
|||
|
Mppt Charging Voltage
|
< 14.5V @25℃
|
|
|
|
|||
|
Boost Voltage
|
14.5V @25℃
|
|
|
|
|||
|
Equal Voltage
|
14.8V @25℃（Liquid, AGM）
|
|
|
|
|||
|
Float Voltage
|
13.7V @25℃
|
|
|
|
|||
|
Low Voltage Disconnect
|
10.8~11.8V, SOC1~5
|
|
|
|
|||
|
Reconnect Voltage
|
11.6~12.8V
|
|
|
|
|||
|
Overcharge Protect
|
15.5V
|
|
|
|
|||
|
Battery Type
|
Liquid, Gel, AGM
|
|
|
|
|||
|
Max Voltage On Battery Terminal
|
20V
|
|
|
|
|||
|
Temperature Compensation
|
-4.17mV/K per cell (Boost, Equal), -3.33mV/K per cell (Float)
|
|
|
|
|||
|
Max Voltage On Pv Terminal
|
45V
|
|
35V
|
|
|||
|
Max Input Power
|
130W
|
|
200W
|
|
|||
|
Dusk/Dawn Detect Voltage
|
8V
|
|
|
|
|||
|
Mppt Tracking Range
|
(Battery Voltage+1V) ~ Voc*0.9
|
|
|
|
|||
|
Output Current
|
10A
|
|
15A
|
|
|||
|
USB Interface
|
5V,2A
|
|
|
|
|||
|
Working Mode
|
Standard 24H; Dusk to Dawn; Timer; User-defined Mode
|
|
|
|
|||
|
Max Tracking Efficiency
|
>99.9%
|
|
|
|
|||
|
Max Charge Conversion
|
97.5%
|
|
|
|
|||
|
Dimensions
|
189*96*53mm
|
|
|
|
|||
|
Weight
|
480g
|
|
|
|
|||
|
Self Consumption
|
7mA
|
|
|
|
|||
|
Grounding
|
Common Negative
|
|
|
|
|||
|
Wire Recommend
|
8AWG (10mm²)
|
|
|
|
|||
|
Protection Degree
|
IP32
|
|
|
|
|||
