Mortar Site Construction Cement And Concrete Mixer Mobile MT500

Mortar Site Construction Cement And Concrete Mixer Mobile MT500

FOB Reference Price: Get Latest Price

≥1 Pieces

US $7030

≥3 Pieces

US $6250

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: PMIXERS

Motor Power:: 11KW

Charging Capacity:: 500KG

Reclaiming capacity:: 500KG

Water Supply Mode:: Water Pump

Working Cycle Period:: 3minutes

Discharge Way:: Manual

Outline Dimension:: 1800*1600*1400MM

Weight (KG):: 900 kg

Power type:: Electric Engine

Quick Details

Mixing Power:: 11kW

Productivity:: 10T/H, 10T/H

Place of Origin:: Shandong, China

Brand Name:: PMIXERS

Motor Power:: 11KW

Charging Capacity:: 500KG

Reclaiming capacity:: 500KG

Water Supply Mode:: Water Pump

Working Cycle Period:: 3minutes

Discharge Way:: Manual

Outline Dimension:: 1800*1600*1400MM

Weight (KG):: 900 kg

Power type:: Electric Engine

Product Overview

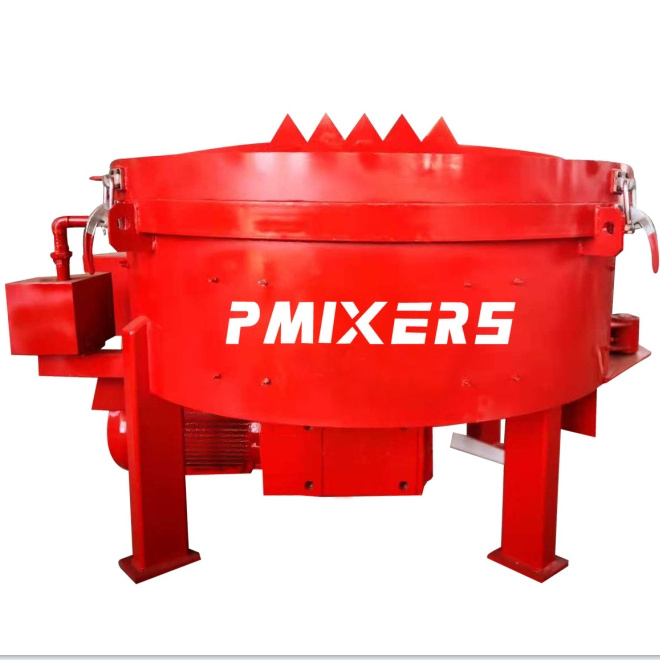

Pan mixer

Pan mixers is for the specialized mixing of:

- Refractory materials
- Powders
- Plaster
- Shotcrete
- Foundry materials

MT refractory mixer is used for mixing refractory materials, castables, friction materials, chemical matrials, precast concrete, mortar, aggregate mixing and glass materials, etc. Could work together with refractory wet shotcrete machine, used for refractory materials spraying project in the steel industry.

FEATURES AT A GLANCE

Features:

1. Pushbutton stop/start with safety grid and limit switch for automatic cut-out.
2. The mixers are all supplied (pre-wired) with starter, overload and isolator switch
3. Mixer discharge is self-cleaning.
4. Automatic metering and automatic water adding
5. Right angled drive for low discharge height
6. Pan floor and wall are lined with easily replaced wear segments

PRODUCT SPECIFICATIONS

	Mixing Capacity(kg)	Scraper	Feeding Height(mm)	Mixing Power(kw)	Rated Power	Weight(kg)	Dimension LWH(mm)
MT100	100	4	100	4	AC380V 50HZ	300	150010001300
MT250	250	5	1150	5.5	AC380V 50HZ	560	150013001400
MT500	500	5	1300	11	AC380V 50HZ	915	180016001400
MT800	800	5	1350	15	AC380V 50HZ	1200	180020501300
MT1000	1000	5	1300	18.5	AC380V 50HZ	1500	250022001500

Details Images

Why Choose Us

Global Services

The pan mixer can be used for castable and dry mortar, inside the mixer, there are liners, which are very wearable, so the pan mixer machine' using life is longer.

We can make a special design and supply a best solution. Top design team, sales team, producing team, shipping team and after-sales team.
