Quick Details
-
Usage:
-
Peanut Harvester
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YIZE
-
Dimension(L*W*H):
-
6100*2100*1900mm
-
Weight:
-
920 KG
-
Marketing Type:
-
New Product 2024
-
Product name:
-
Peanut picker machine
-
Keywords:
-
Peanut picking and harvesting machine
-
Function:
-
Combined Peanut Harvester
-
Used for:
-
peanut,groundnut
-
Automation level:
-
Fully automatic
-
Advantage:
-
Low loss rate
-
Loss rate:
-
≤1%
-
Broken rate:
-
≤3%
-
Impurity rate:
-
≤2%
Quick Details
-
Number of Rows:
-
1
-
Working Width(mm):
-
50 mm
-
Tractor Power(HP):
-
25 - 37 HP
-
Usage:
-
Peanut Harvester
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YIZE
-
Dimension(L*W*H):
-
6100*2100*1900mm
-
Weight:
-
920 KG
-
Marketing Type:
-
New Product 2024
-
Product name:
-
Peanut picker machine
-
Keywords:
-
Peanut picking and harvesting machine
-
Function:
-
Combined Peanut Harvester
-
Used for:
-
peanut,groundnut
-
Automation level:
-
Fully automatic
-
Advantage:
-
Low loss rate
-
Loss rate:
-
≤1%
-
Broken rate:
-
≤3%
-
Impurity rate:
-
≤2%
Product Description

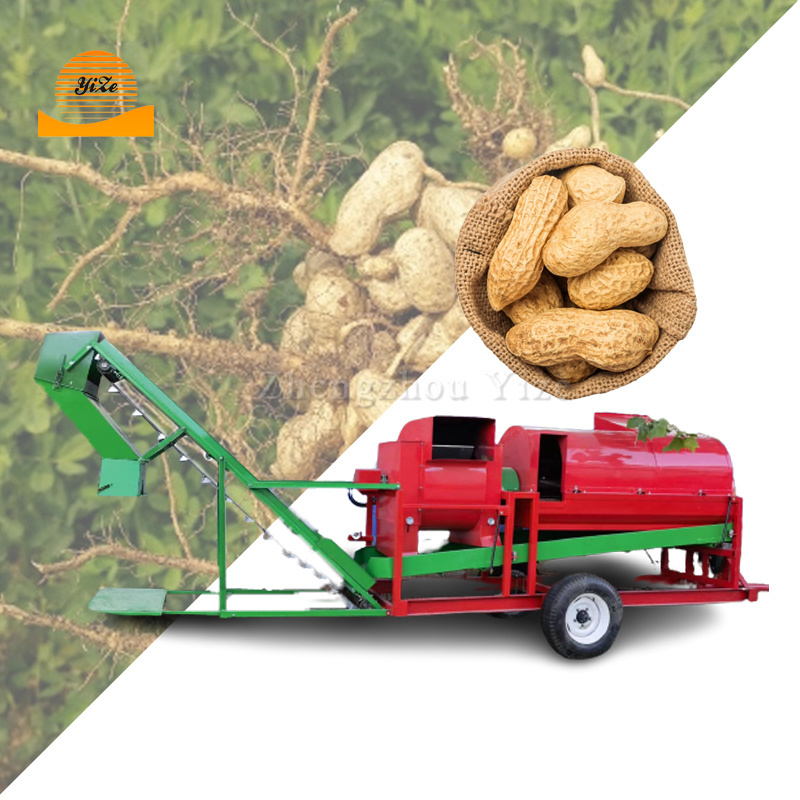

Introduction Of Peanut Picker Machine：
The groundnut harvesting machine peanut picker is used for separating the peanuts from peanut stems after peanuts harvest. It works well both dry peanut and wet peanut. It has high picking rate, low breakage rate and high efficiency.the Machine can be matched with diesel engine,tractor or elector motor.It is used flexibly in the field.
|
Model
|
YZHZ-3
|
|
|
|
|||
|
Capacity
|
2ton /h
|
|
|
|
|||
|
Power
|
25-37kw
|
|
|
|
|||
|
Voltage
|
380V
|
|
|
|
|||
|
Dimension
|
6100*2100*1900mm
|
|
|
|
|||
|
Weight
|
920kg
|
|
|
|
|||
|
Loss rate
|
≤1%
|
|
|
|
|||
|
Broken rate
|
≤3%
|
|
|
|
|||
|
Impurity rate
|
≤2%
|
|
|
|
|||
How it works?
The peanut picking machine is mainly composed of a frame, a motor (diesel engine or tractor), a transmission part, a fruit picking off part, a fan selection part and a vibration mechanism. During operation, the raw materials through the feeding inlet enter the peanut picking system.The rotating blow of the roller picking rod makes the peanuts to leave the stem. The peanuts and sundries fall to the shaker through the gravure hole.The stems are discharged through the outlet and the scattered peanuts on the vibrating screen are transmitted to the suction port of the fan through the vibrating screen to remove the impurities. The clean peanuts are selected.
The peanut picking machine is mainly composed of a frame, a motor (diesel engine or tractor), a transmission part, a fruit picking off part, a fan selection part and a vibration mechanism. During operation, the raw materials through the feeding inlet enter the peanut picking system.The rotating blow of the roller picking rod makes the peanuts to leave the stem. The peanuts and sundries fall to the shaker through the gravure hole.The stems are discharged through the outlet and the scattered peanuts on the vibrating screen are transmitted to the suction port of the fan through the vibrating screen to remove the impurities. The clean peanuts are selected.
Detailed Images
Feature Of Peanut Picker Machine：
1.The machine has good performance, compact structure, easy to operate, safe and reliable.
2.High-quality peanut automatic bagging system, the elevator at the end of the machine can help customers collect peanuts easily and quickly.
3.It can be used flexibly in the field and be moved anytime and anywhere.
1.The machine has good performance, compact structure, easy to operate, safe and reliable.
2.High-quality peanut automatic bagging system, the elevator at the end of the machine can help customers collect peanuts easily and quickly.
3.It can be used flexibly in the field and be moved anytime and anywhere.
