Quick Details
-
Return Force (kN):
-
1000 kN
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Deman
-
Year:
-
build to order
-
Voltage:
-
380V/50Hz/3phase
-
Dimension(L*W*H):
-
900*700*1300mm
-
Weight (T):
-
1 T
-
Model Number:
-
DM-YZJ-100
-
Motor Power (kw):
-
5.5 kw
-
Applicable Industries:
-
Transportation Industry, license plate factory
-
Product name:
-
license plate hydraulic forming machine
-
Effective pressure area:
-
580*195mm
-
Workbench area:
-
580*300mm
-
Nominal force:
-
1000KN
-
Working period:
-
1 cycle/2-5s
Quick Details
-
Machine Type:
-
hydraulic forming machine
-
Slide Stroke (mm):
-
20mm
-
Ejector Force (kN):
-
1000KN
-
Return Force (kN):
-
1000 kN
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Deman
-
Year:
-
build to order
-
Voltage:
-
380V/50Hz/3phase
-
Dimension(L*W*H):
-
900*700*1300mm
-
Weight (T):
-
1 T
-
Model Number:
-
DM-YZJ-100
-
Motor Power (kw):
-
5.5 kw
-
Applicable Industries:
-
Transportation Industry, license plate factory
-
Product name:
-
license plate hydraulic forming machine
-
Effective pressure area:
-
580*195mm
-
Workbench area:
-
580*300mm
-
Nominal force:
-
1000KN
-
Working period:
-
1 cycle/2-5s

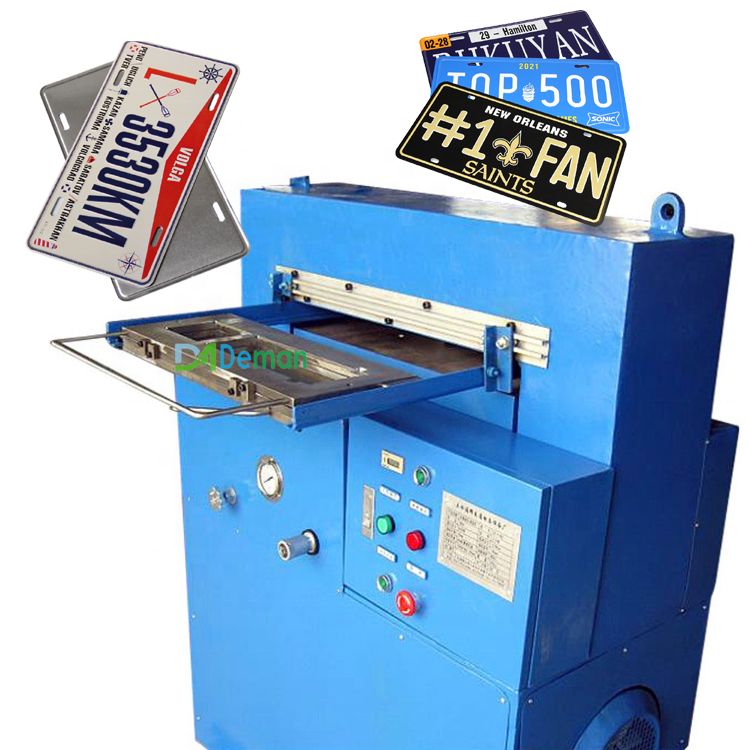

Introduction of license plate hydraulic forming machine
The license plate hydraulic forming machine is mainly used for the imprinting process of metal and non-metallic materials, and can also be used for the stamping and forming process of plastic sheets.
main features
1.The structure is simple, the action is sensitive and reliable, the operation is safe and convenient;
2.The automatic lifting is controlled by the proximity switch. In the automatic lifting, the movable table completes the lifting and pressurization;
3.The whole working cycle is automatically returned through the action of the spring and its own weight, and it stops automatically when the mold leaves the proximity switch;
4.High production efficiency and low power consumption.
Can design and make molds according to customer needs
There are two types of manual molding machine and hydraulic molding machine. Customers are free to choose.
Structure overview
This machine is mainly composed of frame, mainstream cylinder, hydraulic system, electrical system, stroke limiting device and so on.
note:
The adjusting handle of each hydraulic valve has been adjusted to the proper position before leaving the factory. Except for the pressure relay, which can be adjusted by the user according to the operating pressure, the adjustment handles of the other valves cannot be adjusted arbitrarily, otherwise malfunctions will occur.
Technical parameter
|
Model |
DM-YZJ-100 |
|
Voltage |
380V/50Hz/3phase |
|
Power |
5.5Kw |
|
Effective pressure area |
580*195mm |
|
Workbench area |
580*300mm |
|
Nominal force |
1000KN |
|
Working period |
1 cycle/2-5s |
|
Hydraulic section |
Dual hydraulic cylinders |
|
45L hydraulic tank |
|
|
N46/L-68HM Anti-wear hydraulic oil |
|
|
Working pressure: 25Mpa |
|
|
Dimension |
900*700*1300mm |
|
Weight |
900Kg |
Product display
Finished product display
