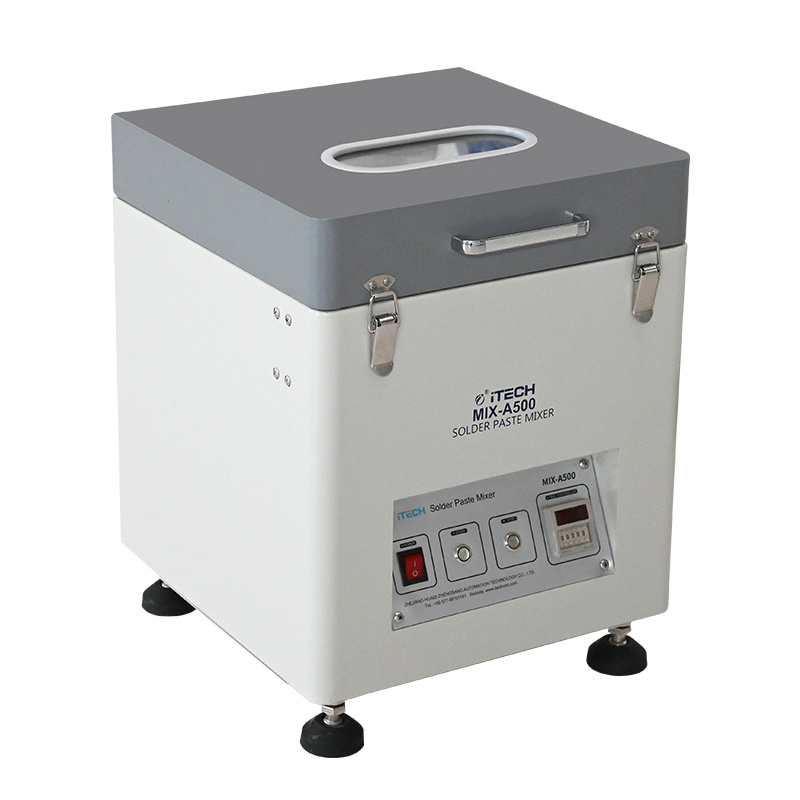

ITECH MIX-A500 SMT Solder Paste Mixer Equipment 500gx2 High Speed Pcb Solder Paste Mixing Machine For Smt Pcb Production Line
ITECH MIX-A500 SMT Solder Paste Mixer Equipment 500gx2 High Speed Pcb Solder Paste Mixing Machine For Smt Pcb Production Line
ITECH MIX-A500 SMT Solder Paste Mixer Equipment 500gx2 High Speed Pcb Solder Paste Mixing Machine For Smt Pcb Production Line
ITECH MIX-A500 SMT Solder Paste Mixer Equipment 500gx2 High Speed Pcb Solder Paste Mixing Machine For Smt Pcb Production Line
ITECH MIX-A500 SMT Solder Paste Mixer Equipment 500gx2 High Speed Pcb Solder Paste Mixing Machine For Smt Pcb Production Line
ITECH MIX-A500 SMT Solder Paste Mixer Equipment 500gx2 High Speed Pcb Solder Paste Mixing Machine For Smt Pcb Production Line
ITECH MIX-A500 SMT Solder Paste Mixer Equipment 500gx2 High Speed Pcb Solder Paste Mixing Machine For Smt Pcb Production Line
ITECH MIX-A500 SMT Solder Paste Mixer Equipment 500gx2 High Speed Pcb Solder Paste Mixing Machine For Smt Pcb Production Line

ITECH MIX-A500 SMT Solder Paste Mixer Equipment 500gx2 High Speed Pcb Solder Paste Mixing Machine For Smt Pcb Production Line

FOB Reference Price: Get Latest Price
≥1 Sets
US $369.9
≥3 Sets
US $359.9
≥5 Sets
US $349.9
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Max. Loading Capacity:
5-5000L
Weight (KG):
45 KG
Place of Origin:
Zhejiang, China
Brand Name:
ITECH
Voltage:
220V
Dimension(L*W*H):
L400xW400xH500mm
Power (kW):
60 kW
Applicable Industries:
Smt Pcb Production Line
Marketing Type:
High Speed
Product name:
Solder Paste Mixer
Model:
MIX-A500
Motor Speed:
1350RPM
One Revolution:
400RPM
Two Rotations:
300RPM
Operational Capability:
0-1000g*2tanks
Time Setting:
0.01s~99h99s
Display Mode:
LED Digital Display
Working Power Supply:
AC 220V±10% 50Hz
Outline Size:
400*400*500mm

Quick Details

Barrel Volume (L):
5
Max. Loading Volume (L):
5 L
Range of Spindle Speed(r.p.m):
100 - 1350 r.p.m
Max. Loading Capacity:
5-5000L
Weight (KG):
45 KG
Place of Origin:
Zhejiang, China
Brand Name:
ITECH
Voltage:
220V
Dimension(L*W*H):
L400xW400xH500mm
Power (kW):
60 kW
Applicable Industries:
Smt Pcb Production Line
Marketing Type:
High Speed
Product name:
Solder Paste Mixer
Model:
MIX-A500
Motor Speed:
1350RPM
One Revolution:
400RPM
Two Rotations:
300RPM
Operational Capability:
0-1000g*2tanks
Time Setting:
0.01s~99h99s
Display Mode:
LED Digital Display
Working Power Supply:
AC 220V±10% 50Hz
Outline Size:
400*400*500mm
VR
Product Details
Model
MIX-A500
Operating
speed
1350RPM Motor speed:1350RPM
400RPM; 300RPM One revolution:400RPM; Two rotations:300RPM
Operational capability
0-1000g*2tanks
Acceptance of
solder cream pot

Tank diameter X60-X67 standard configuration (suitable for general 500 g.
solder cream bottle)Other specifications, please contact us for customization.
Time setting
0.01s-99H99s, minute and second set
Display mode
LED digital display
Rated power
Constant speed 60W
Working power supply
AC 220V+10% 50Hz
Net weight.
45KG
Gross weight
60KG
Outline size
400x400x500mm
Outline package size
540*540*590mm
Product Features 1) Basic on motor rotation making Centrifugal Revolution to stir the solder cream in can/cans evenly ,no need to defrost the solder cream before position it into the machine for mixing .No need to recover the can/cans in short time after stirring well by the machine , you can use it within 9 hours . 2) Available for all brands of 500g solder paste,Mixing with 1-2 cans in one time ,which can save time and efficient . 3) Solder Paste can no need to open during stirring to Avoid Oxidation and water Vaporization. 4) Mixing time can be adjustable from 1-30 mins.(usually just mix 3-5 mins ) with Omron time relay . 5) The machine is automatic running after setting with stable performance, easy operation, high safety and simple in maintenance.
