Quick Details
-
Brand Name:
-
Huarui
-
Power (kW):
-
1.5
-
Weight (KG):
-
1800 KG
-
Product name:
-
Steel Nail Making Machine
-
After-sales Service Provided:
-
Video technical support
-
Nail Length:
-
For making 1inch 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16inch nails
-
Machine Type:
-
Automatic Nail Making Machine
-
Function:
-
steel nail ,cement nail,Concrete Nail
-
Packaging Details:
-
wooden case or as required
Quick Details
-
Production Capacity:
-
300, 120-450pcs/min
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huarui
-
Power (kW):
-
1.5
-
Weight (KG):
-
1800 KG
-
Product name:
-
Steel Nail Making Machine
-
After-sales Service Provided:
-
Video technical support
-
Nail Length:
-
For making 1inch 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16inch nails
-
Machine Type:
-
Automatic Nail Making Machine
-
Function:
-
steel nail ,cement nail,Concrete Nail
-
Packaging Details:
-
wooden case or as required
Process Flows:
Wire Rod--Wire Drawing Machine---Nail Making Machine--Nail Polishing Machine--Finished Nails
1. Wire Drawing Machine
Function:
This is the combined wire drawing machine. If the diameter of wire is thick before it entering the nail making machine, this machine can reduce the diameter of wire, then the user can get the diameter that they need. It is can be matched with 2 combinations, 3 combinations, 4 combinations or more according to the daily capacity.
|
Model No.
|
YLS2-560
|
YLS3-560
|
YLS4-560
|
YLS-5-560
|
|
Maxim Inlet Wire Diameter
|
6.5mm
|
6.5mm
|
6.5mm
|
6.5mm
|
|
Minimum Outlet Wire Diameter
|
2.0mm
|
2.0mm
|
2.0mm
|
2.0mm
|
|
Total motor power
|
15kw*2+2.2kw
|
15kw*3+2.2kw
|
15kw*4+2.2kw
|
15kw*5+2.2kw
|
|
Drawing speed
|
135m/min
|
150m/min
|
175m/min
|
205m/min
|

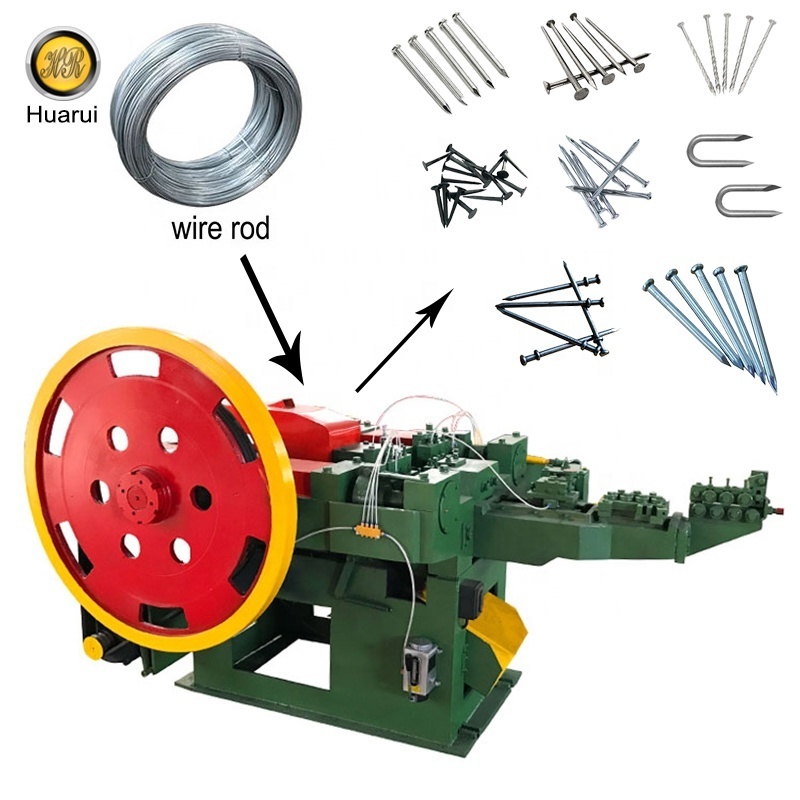

2. Z94-C Series High Speed Automatic Steel Wire Nail Making Machine
Function:
This machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics,especially can make excellent quality YouMao nail and other special-shaped nail which are suitable for high speed studs for welding machine and nail gun.
|
Model
|
Diameter of nails
|
Length of nails
|
Designed speed
|
Motor
|
Dimension
(L*W*H) |
Weight
|
|
Z94-1C
|
0.9-16. mm
|
9-25mm
|
450PCS/min
|
1.5kw
|
1.5*1.3*1.1m
|
1.2tons
|
|
Z94-2C
|
1.2-2.8mm
|
16-50mm
|
380PCS/min
|
2.2kw
|
1.7*1.3*1.4m
|
1.45tons
|
|
Z94-3C
|
1.8-3.5mm
|
30-75mm
|
320PCS/min
|
3kw
|
2.0*1.4*1.4m
|
1.8tons
|
|
Z94-4C
|
2.8-4.5mm
|
50-100mm
|
260PCS/min
|
4kw
|
2.2*1.6*1.6m
|
2tons
|
|
Z94-5C
|
2.8-5mm
|
50-120mm
|
260PCS/min
|
4kw
|
2.3*1.6*1.3m
|
2.1tons
|
|
Z94-5.5C
|
3.8-5.5mm
|
75-150mm
|
220PCS/min
|
5.5kw
|
2.5*1.8*1.5m
|
2.3tons
|
|
Z94-5.5C(2)
|
3.8-5.0mm
|
75-180mm
|
220PCS/min
|
5.5kw
|
2.5*1.8*1.5m
|
2.3tons
|
|
Z94-6C
|
4-8mm
|
80-200mm
|
180PCS/min
|
11W
|
3.4*1.9*1.5m
|
3tons
|
|
Z94-8A
|
5-10mm
|
180-320mm
|
120PCS/min
|
22kw
|
6*2.1*1.9m
|
10tons
|
3. Nail Polishing Machine
Function:
This machine is auxiliary equipment of nail making machine. When the nails have been made by the nail making machine, it will be not very bright. The user can use this machine to polish the nails to let it brighter, smoother and anti-rust.
|
Model
|
Motor power
|
Overall size
|
Capacity of nails
|
|
SD-400
|
2.2kw
|
1.64*0.9*1.0m
|
400kg
|
|
SD-600
|
3kw
|
2.0*1.0*1.4m
|
600kg
|
|
SD-800
|
7.5kw
|
2.0*1.2*1.5m
|
800kg
|
|
SD-1000
|
7.5kw
|
2.0*1.5*1.5m
|
1000kg
|
|
SD-2000
|
11kw
|
2.5*2.1*2.0m
|
2000kg
|
|
SD-3000
|
15kw
|
3.4*1.55*1.6m
|
3000kg
|
4.
Auxiliary equipment
|
1. butt welding machine
|
|
|
|
Model No.
|
butt welding machine
|
|
|
Butt weld range
|
φ3—φ8mm
|
|
|
Voltage
|
380V 50HZ
|
|
|
Weight
|
50kg
|
|
|
Function
: This is butt welding machine, to weld two wires coil together. When one wire coil finish drawing, this machine can connect the
next wire coil to continue to be drawn by the wire drawing machine. |
|
|
|
2. Wire Point Rolling Machine
|
|
|
|
Rolling pointed range
|
≤8mm
|
|
|
Motor power
|
2.2KW
|
|
|
Overall size
|
1.2*0.6*1.0m
|
|
|
Weight
|
80kg
|
|
|
Function:
This is pointing rolling machine, to sharpen the head of the wire, then it can enter the wire drawing machine.
|
|
|
|
3. Nail Cutter Grinder
|
|
|
|
Diameter of grinding wheel
|
200mm
|
|
|
Motor power
|
0.75kw
|
|
|
Speed
|
2900r/min
|
|
|
Overall size
|
0.8*0.5 *1.0m
|
|
|
Weight
|
210kg
|
|
|
Function:
This is pointing rolling machine, to sharpen the head of the wire, then it can enter the wire drawing machine.
|
|
|
