Quick Details
-
Brand Name:
-
ZHEYONG
-
Model Number:
-
LXSW-15E-25E
-
Color:
-
as is shown
-
Body Material:
-
Iron or brass
-
Q3/Q1:
-
R80/100/160
-
Size:
-
DN15mm to DN25mm
-
Feature:
-
Multi jet,volumetric rotary piston
-
Battery Life:
-
6-8 Years
-
Communication:
-
Wireless
-
Standard:
-
ISO4046
Quick Details
-
Warranty:
-
1 years
-
Type:
-
Multi-jet meters
-
Place of Origin:
-
Zhejiang, China, Zhejiang, China (Mainland)
-
Brand Name:
-
ZHEYONG
-
Model Number:
-
LXSW-15E-25E
-
Color:
-
as is shown
-
Body Material:
-
Iron or brass
-
Q3/Q1:
-
R80/100/160
-
Size:
-
DN15mm to DN25mm
-
Feature:
-
Multi jet,volumetric rotary piston
-
Battery Life:
-
6-8 Years
-
Communication:
-
Wireless
-
Standard:
-
ISO4046
Home
Products Description
DESCRIPTION

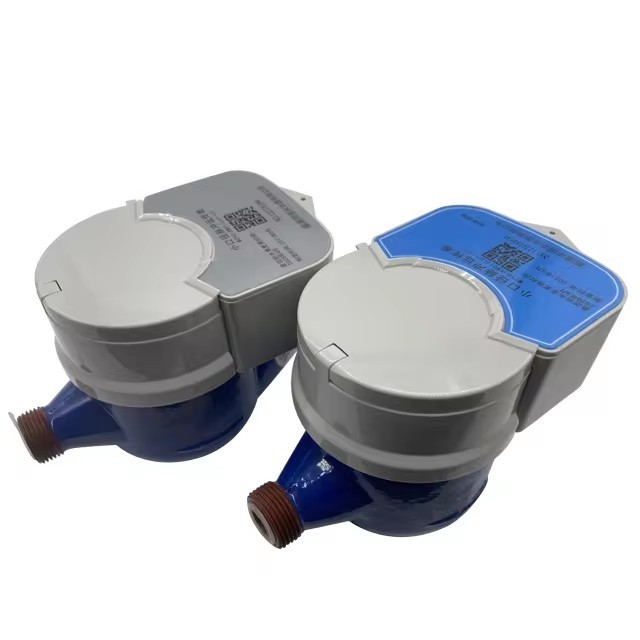

The magnetic needle pulse of water meter is col l ected by magnetic resistance sensor and converted into water consumption of water meter, which can be transmitted to the management background through wireless network to realize the measurement and remote transmission of water consumption information.
FEATURE
1. Wireless network transmission 2. Mechanical and electrical separation, convenient maintenance 3. Clock self-calibration 4. Strong magnetic interference alarm 5. Battery voltage alarm 6. Data transmission adopts AES128 hardware encryption
The magnetic needle pulse of water meter is col l ected by magnetic resistance sensor and converted into water consumption of water meter, which can be transmitted to the management background through wireless network to realize the measurement and remote transmission of water consumption information.
FEATURE
1. Wireless network transmission 2. Mechanical and electrical separation, convenient maintenance 3. Clock self-calibration 4. Strong magnetic interference alarm 5. Battery voltage alarm 6. Data transmission adopts AES128 hardware encryption
BASIC DATA
|
Data acquisition
|
Pulse
|
|
Data communication
|
Wireless
|
|
Standby current
|
<7uA
|
|
Battery
|
3.6V lithium sub battery, replaceable
|
|
Accurate
|
2
|
|
Maximum working pressure
|
1Mpa
|
|
Protection level
|
IP68
|
|
Battery life
|
≥7 years
|
WIRELESS DATA
|
Working frequency
|
470-510MHz
|
|
Wireless receiving current
|
<6mA
|
|
Wireless sending current
|
<30mA
|
|
Wireless transmission power
|
≤13dBm
|
|
Wireless reception sensitivity
|
<-120dBm
|
MAIN TECHNICAL DATA
|
DN
|
Q3/Q1
|
Q4
|
Q3
|
Q2
|
Q1
|
Min
|
Max
|
|||
|
mm
|
|
m3/h
|
|
L/h
|
|
m3
|
|
|||
|
15
|
80
|
3.125
|
2.5
|
50
|
31.25
|
0.0001
|
99999
|
|||
|
|
100
|
|
|
40
|
25
|
|
|
|||
|
20
|
80
|
5
|
4
|
80
|
50
|
|
|
|||
|
|
100
|
|
|
64
|
40
|
|
|
|||
|
25
|
80
|
7.785
|
6.3
|
126
|
78.75
|
|
|
|||
|
|
100
|
|
|
100.8
|
63
|
|
|
|||
