Quick Details
-
Brand Name:
-
IBEST, SANLLEVI
-
Theory:
-
Inductance Proximity Sensor, Inductance Sensor
-
Output:
-
NPN OR PNP, NO Or NC, PNP or PNP NO Or NC 3 Wires
-
Description:
-
IPS-30PO15B/IPS-30NO15B
-
Approval:
-
CE/MC
-
Quality:
-
Reliable with 12 months guarantee
-
Conenction:
-
With 2 MeterCable
-
Detect Distance:
-
Flush: 10mm / Non-flush: 15mm
-
Material:
-
Nickle Plated Brass Housing+ABS Detect Face
-
Protection:
-
Overload /Short Circuit Protection
-
Power supply:
-
DC 10-30V
-
Operating temperature:
-
-15~+65C
Quick Details
-
Usage:
-
Industrial Automation
-
Model Number:
-
IPS-30PO15B/IPS-30NO15B
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IBEST, SANLLEVI
-
Theory:
-
Inductance Proximity Sensor, Inductance Sensor
-
Output:
-
NPN OR PNP, NO Or NC, PNP or PNP NO Or NC 3 Wires
-
Description:
-
IPS-30PO15B/IPS-30NO15B
-
Approval:
-
CE/MC
-
Quality:
-
Reliable with 12 months guarantee
-
Conenction:
-
With 2 MeterCable
-
Detect Distance:
-
Flush: 10mm / Non-flush: 15mm
-
Material:
-
Nickle Plated Brass Housing+ABS Detect Face
-
Protection:
-
Overload /Short Circuit Protection
-
Power supply:
-
DC 10-30V
-
Operating temperature:
-
-15~+65C

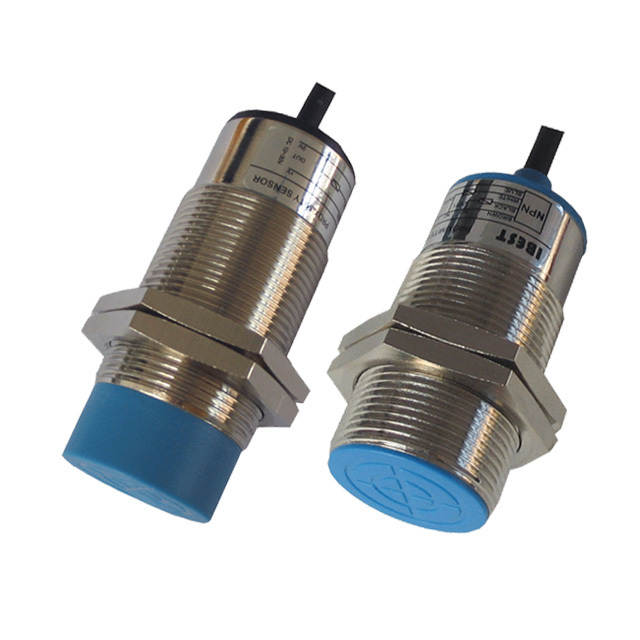

IBEST M30 Cable Type Inductive Proximity Sensor/Switch
NPN/PNP NO Or NC Output 3 Wires
1. Features :
-- Inductive proximity sensor, style: cylinder, diameter: 30mm.
-- Detect Distance: Unshielded 10mm or shielded 15mm type . (Extended distance is available, Flush 13-14mm or non-flush 19-20mm)
-- DC 2-wire (10-30V DC), DC 3-wire(10-30V DC), DC 4-wire(10-30V DC),AC 2-wire (90-250 AC) type
-- Connection mode: with 2 meter PVC cable. (M12 connector type is available also)
-- With LED operation indicate lamp, easily identifiable
-- Brass chrome plated, proof of oil, water acid, alkaline
-- Standard sensing object: iferrous metals.
-- Over load, short circuit protection , against polarity reversal.
-- IP ratings: IP67.
-- Various other shapes: M5/M6/M8/M18/M30, square types and pancake types.
-- Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc .
-- Reliable quality to replace famous brands .
2.Ordering code:
| IPS-30NO10B | NPN NO | 10mm,shielded | ≤200mA | DC 10-30V | 3 Wires | |
| IPS-30NC10B | NPN NC | 10mm,shielded | ≤200mA | DC 10-30V | 3 Wires | |
| IPS-30NO15B | NPN NO | 15mm,unshielded | ≤200mA | DC 10-30V | 3 Wires | |
| IPS-30NC15B | NPN NC | 15mm,unshielded | ≤200mA | DC 10-30V | 3 Wires | |
| IPS-30NOC10B | NPN NO+NC | 10mm,shielded | ≤200mA | DC 10-30V | 4 Wires | |
| IPS-30NOC15B | NPN NO+NC | 15mm,unshielded | ≤200mA | DC 10-30V | 4 Wires | |
| IPS-30PO10B | PNP NO | 10mm,shielded | ≤200mA | DC 10-30V | 3 Wires | |
| IPS-30PC10B | PNP NC | 10mm,shielded | ≤200mA | DC 10-30V | 3 Wires | |
| IPS-30PO15B | PNP NO | 15mm,unshielded | ≤200mA | DC 10-30V | 3 Wires | |
| IPS-30PC15B | PNP NC | 15mm,unshielded | ≤200mA | DC 10-30V | 3 Wires | |
| IPS-30POC10B | PNP NO+NC | 10mm,shielded | ≤200mA | DC 10-30V | 4 Wires | |
| IPS-30POC15B | PNP NO+NC | 15mm,unshielded | ≤200mA | DC 10-30V | 4 Wires | |
| IPS-30DO10B | DC 2 Wire NO | 10mm,shielded | ≤200mA | DC 10-30V | 2 Wires | |
| IPS-30DC10B | DC 2 Wire NC | 10mm,shielded | ≤200mA | DC 10-30V | 2 Wires | |
| IPS-30DO15B | DC 2 Wire NO | 15mm,unshielded | ≤200mA | DC 10-30V | 2 Wires | |
| IPS-30DC15B | DC 2 Wire NC | 15mm,unshielded | ≤200mA | DC 10-30V | 2 Wires | |
| IPS-30AO10C | AC 2 Wire NO | 10mm,shielded | ≤300mA | AC 90-250V | 2 Wires | |
| IPS-30AC10C | AC 2 Wire NC | 10mm,shielded | ≤300mA | AC 90-250V | 2 Wires | |
| IPS-30AO15C | AC 2 Wire NO | 15mm,unshielded | ≤300mA | AC 90-250V | 2 Wires | |
| IPS-30AC15C | AC 2 Wire NC | 15mm,unshielded | ≤300mA | AC 90-250V | 2 Wires |
| 3. Technical Specifications: | ||||||||||||||||||
|
4. Dimensions:
