Quick Details
-
MOQ:
-
500pcs
-
Material:
-
Aluminum
-
Function:
-
Ventilaion
-
Feature:
-
Easy Installation
-
Certificate:
-
CE/ISO9001/ISO14001/OHSAS18001
-
Surface finish:
-
Polish
-
Package:
-
Carton Box
-
Accessories:
-
Oppose Blade Damper Optional
-
Type:
-
Ventilation Equipment
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
RETOP
-
Product name:
-
Air Diffuser
-
MOQ:
-
500pcs
-
Material:
-
Aluminum
-
Function:
-
Ventilaion
-
Feature:
-
Easy Installation
-
Certificate:
-
CE/ISO9001/ISO14001/OHSAS18001
-
Surface finish:
-
Polish
-
Package:
-
Carton Box
-
Accessories:
-
Oppose Blade Damper Optional
-
Type:
-
Ventilation Equipment
|
Name
|

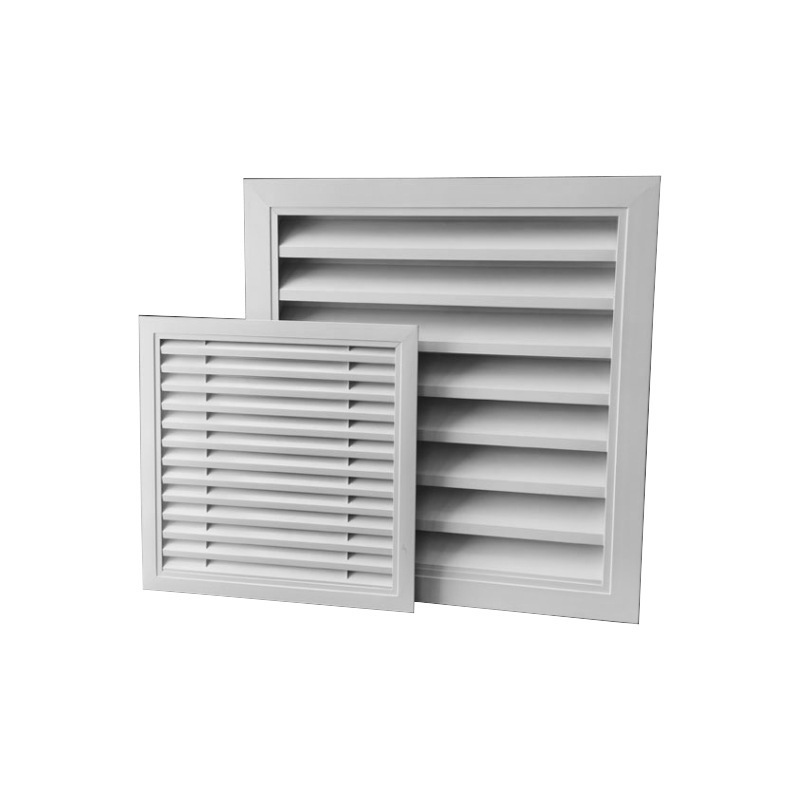

Single deflection Aluminum air grille
|
|
Material
|
Aluminium alloy
|
|
Function
|
Ventilation opening
|
|
Size
|
Customized Size
|
|
Color
|
Customized Color
|
|
Warranty
|
5 Year
|
|
After-sale Service
|
Online technical support
|
|
Project Solution Capability
|
graphic design
|
|
Application
|
Office Building
|
|
Design Style
|
Modern
|
|
Place of Origin
|
Henan，China
|
Construction:
* Ø Frame: High quality extruded aluminum alloy(A6063) profile with 30mm flange as standard.
* Ø Blades: Aerofoil blades in 45° from aluminum profile
* Ø Blades spacing: 35mm as standard
* Ø Support pipe: 8mm diameter aluminum pipe
* Ø Frame: High quality extruded aluminum alloy(A6063) profile with 30mm flange as standard.
* Ø Blades: Aerofoil blades in 45° from aluminum profile
* Ø Blades spacing: 35mm as standard
* Ø Support pipe: 8mm diameter aluminum pipe
Description:
* Ø Fresh air louver is composed of frame and horizontal blades assembly, manufactured from high quality extruded aluminum profile construction with advantages of corrosion resistance and rigidity.
* Ø Blades are set at angle of 45° with 30mm spacing, and fixed to the inner frame by rivets and support pipe.
* Ø Total structure is weather proofed and blades are inclined down wards to protect against rain water.
* Ø Structure provides around 45% effective pressure area .
* Ø Fresh air louver is composed of frame and horizontal blades assembly, manufactured from high quality extruded aluminum profile construction with advantages of corrosion resistance and rigidity.
* Ø Blades are set at angle of 45° with 30mm spacing, and fixed to the inner frame by rivets and support pipe.
* Ø Total structure is weather proofed and blades are inclined down wards to protect against rain water.
* Ø Structure provides around 45% effective pressure area .
|
Item code
|
Neck size(mm)
|
Face size(mm)
|
|
RT-A
|
200x200
|
255x255
|
|
RT-A
|
300x200
|
355x255
|
|
RT-A
|
400x200
|
455x255
|
|
RT-A
|
500x300
|
555x355
|
|
RT-A
|
600x300
|
655x355
|
Henan Retop Industry Co., Ltd. is the leading manufacturer of aluminum profiles in China for the construction, decoration and industries fields. Since 2003 of our establishment in Zheng-zhou City, We have passed the SGS ISO 9001:2008/9001:2015/140001:2004 certification,we have supplied domestic and abroad market with high-quality products and best service for over 18 years.
Q1：
Are you a factory or trading company? A: we're a self -own factory, with export license.
Are you a factory or trading company? A: we're a self -own factory, with export license.
Q2：
Location? How can I visit there?
A: Our factory locates in Zhengzhou, Henan, China. The nearest airport is Xinzheng airport.
Q3：
Lead time for new molds &mass production?
A: 7-10 days to build the new moulds. Mass production takes 20-25days for a 20gp,25-30days for a 40hq.
Q4：
What certification do you have?
A: we are certificated by ISO 9001:2008, factory is reliable and quality is guaranteed.
Q5：
Payment terms?
A: Telegraphic Transfer (T/T) and Letter of Credit (L/C).
Q6：
Can you send me samples?
A: Yes, Free samples, with freight is on your side.
Location? How can I visit there?
A: Our factory locates in Zhengzhou, Henan, China. The nearest airport is Xinzheng airport.
Q3：
Lead time for new molds &mass production?
A: 7-10 days to build the new moulds. Mass production takes 20-25days for a 20gp,25-30days for a 40hq.
Q4：
What certification do you have?
A: we are certificated by ISO 9001:2008, factory is reliable and quality is guaranteed.
Q5：
Payment terms?
A: Telegraphic Transfer (T/T) and Letter of Credit (L/C).
Q6：
Can you send me samples?
A: Yes, Free samples, with freight is on your side.
