Quick Details
-
Model Number:
-
Second Header Punch
-
Product Name:
-

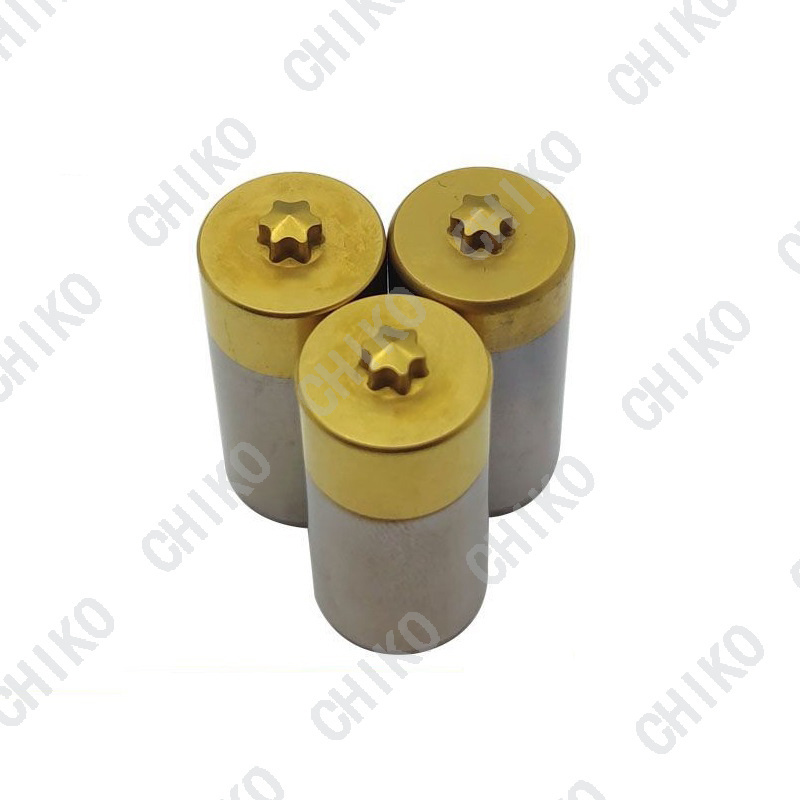

Hex Square Six-Lobe Phillips Screw Second Header Punch Die
-
Material:
-
HSS M42,M35,M2
-
Tolerance:
-
0.003mm-0.01mm
-
Surface treatment:
-
Ticn,Tin, Aitain,Ticrn,Nitrided
Quick Details
-
Shaping Mode:
-
Punching Mold
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Chiko
-
Model Number:
-
Second Header Punch
-
Product Name:
-
Hex Square Six-Lobe Phillips Screw Second Header Punch Die
-
Material:
-
HSS M42,M35,M2
-
Tolerance:
-
0.003mm-0.01mm
-
Surface treatment:
-
Ticn,Tin, Aitain,Ticrn,Nitrided
Products Description
|
Product Name
|
Hex Square Six-Lobe Phillips Screw Second Header Punch Die Tialn Tin Coated Screw Header Punches for JIS ANSI DIN Screw
|
|
Material
|
High Speed Steel M42,M35,M2
|
|
Standard Size
|
12x25mm/14x25mm/18x25mm/23x25mm
|
|
The unit weight about the header punch
|
12x25mm: 25g/pc, 14x25mm: 30g/pc
18x25mm: 50g/pc, 23x25mm: 80g/pc |
|
Surface Treatment
|
Without coating,
With TIN coating-yellow coated, With TILAN coating-black coated |
|
The common driver
|
Phillips , Phillips and slot combination, slotted, hexagon, six-lobe (torx), six-lobe tamper , six-lobe/slot , pozidriv , square, square/slot , Phillips/square, triangle and etc.
|
|
The common head style
|
Flat head, pan head , oval head , binding head , round head, truss head, button head, pf head, cheese head, fillister head and etc.
|
|
Header punch standard
|
JIS, ANSI, DIN, ISO, BS, GB, and NON-STANDARD
|
|
Tips for Working with Center Punches
|
Center punches work equally well on wood and metal. If you’re working with wood and don’t have a center punch, you could use a large nail instead. This could work for thin sheet metal, too, depending on the metal’s hardness.
|
