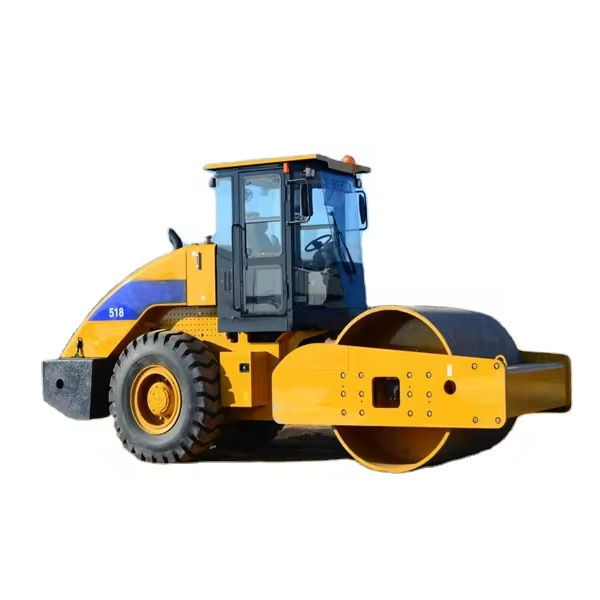

MAIN TECHNICAL CHARACTERISTICS
|
|
|
||
|
Operating weight
|
kg
|
18 000
|
||
|
Dimensions (length x width x height)
|
mm
|
6245 х 2340 х 3193
|
||
|
Vibration amplitude (maximum/minimum)
|
mm
|
2/1
|
||
|
Vibration frequency (maximum/minimum)
|
Hz
|
30/28
|
||
|
Exciting force (maximum/minimum)
|
kN
|
327/188
|
||
|
Static linear load
|
N/cm
|
415
|
||
|
Motor
|
|
|
||
|
Model
|
|
DEUTZ Stage II
|
||
|
Rated motor power
|
kW
|
129
|
||
|
Rotation frequency
|
rpm
|
2 000
|
||
|
Transmission system
|
|
|
||
|
Transmission type
|
|
Three-speed transmission with electronic control
|
||
|
First (working) speed
|
km/h
|
2.98
|
||
|
Intermediate speed
|
km/h
|
5.88
|
||
|
Maximum speed
|
km/h
|
9.6
|
||
|
Outer turning radius
|
mm
|
6 350
|
||
|
The maximum climbing rate
|
%
|
34
|
||
|
Roller
|
|
|
||
|
Drum width
|
mm
|
2 130
|
||
|
Drum diameter
|
mm
|
50
|
||
|
Wall thickness of the drum
|
mm
|
1 600
|
||
|
Refuelling tanks
|
|
|
||
|
Fuel tank
|
l
|
262
|
||
|
Hydraulic oil tank capacity
|
l
|
80
|
||
|
Tyres
|
|
|
||
|
Size
|
|
20.5-25
|
||
